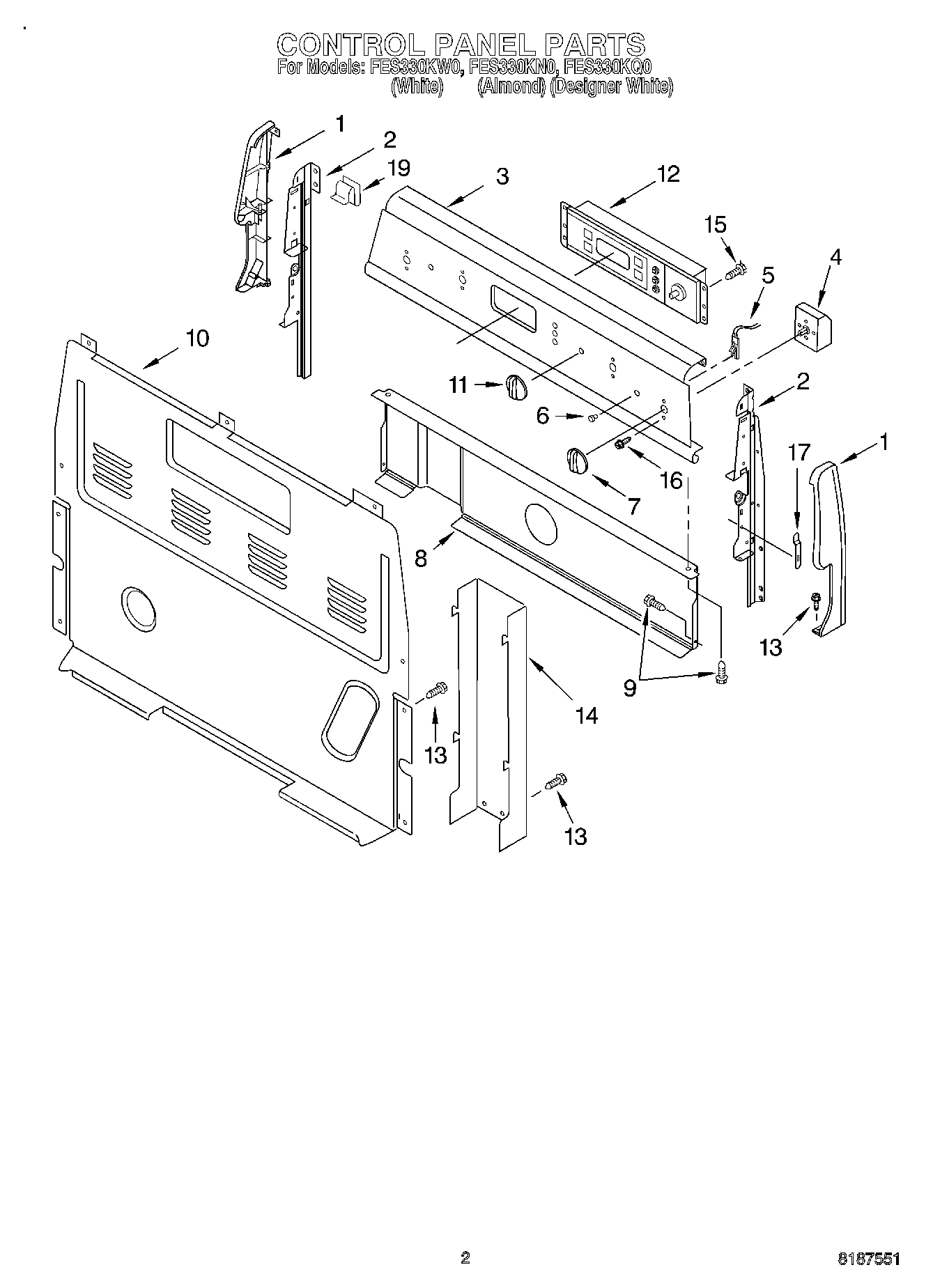

FES330KW0 02 – CONTROL PANEL

FES330KW0 02 – CONTROL PANEL

Written by

in

FES330KW0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Left Hand)
1Endcap (Right Hand)
1Endcap (Right Hand)
1Endcap (Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Black)
3Panel, Backguard (White)
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5Indicator, Surface
6WP3196068 Whirlpool Light Lens
7WP3196028 Whirlpool Knob
7WP3196027 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob-150 Control (Black)
11Knob-150 Control (White)
12Control, Range (Black)
12Control-Range (White)
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP3196557 Whirlpool Screw
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
19WP8273564 Whirlpool Clip
