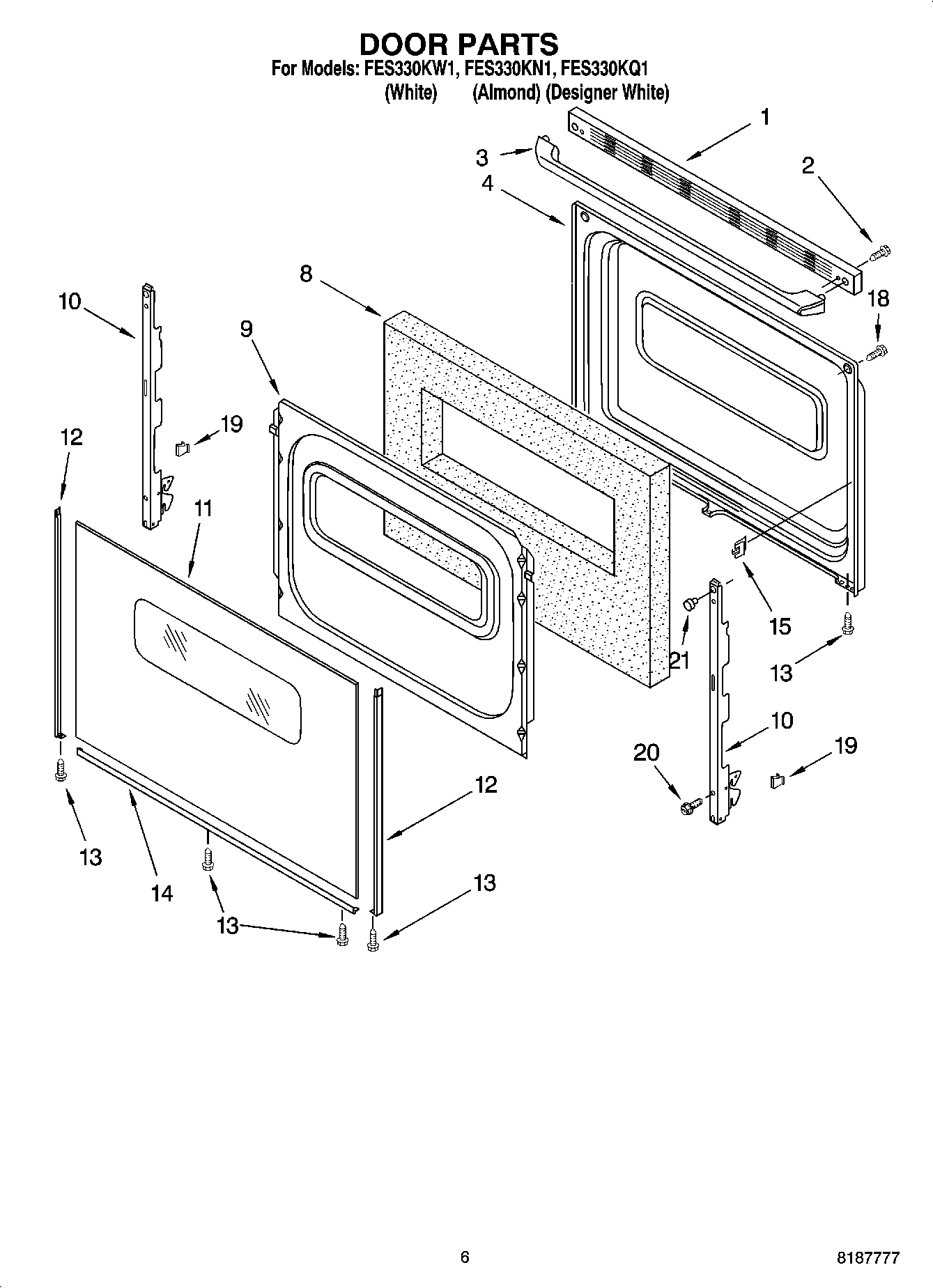

FES330KW1 05 – DOOR PARTS, MISCELLANEOUS PARTS

FES330KW1 05 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

FES330KW1 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI57433A1
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
Grease
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WPL ARI57432A7
WPL ARI57431A4
WPL ARI57430A5
WPL ARI57429A7
WPL ARI57428A5
WPL ARI57427A1
WPL 4454242
WPL 4454075
WPL ARI57434A7
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL 8316781
WPL 8273266
242831 Whirlpool Oven Wire
Clip, Ground Wire
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL 799832
WP72107 Whirlpool Touchup
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
285006 Whirlpool Spray
511873 Whirlpool Refrigerator Paint
814381 Whirlpool Pin
350942 Whirlpool Spray Paint
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
72017 Whirlpool Appliance Touch-Up Paint White
3400964 Whirlpool Oven Clip
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
1Trim, Top (Black)
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
3W10202219 Whirlpool Door Handle Assembly
4Liner, Door
8WPW10278991 Whirlpool Insulation
9W11699790 Whirlpool Retainer
10Hinge, Door (2)
11Glass, Door (Black)
11Glass, Door (White)
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
21238614 Whirlpool Bumper Hinge
