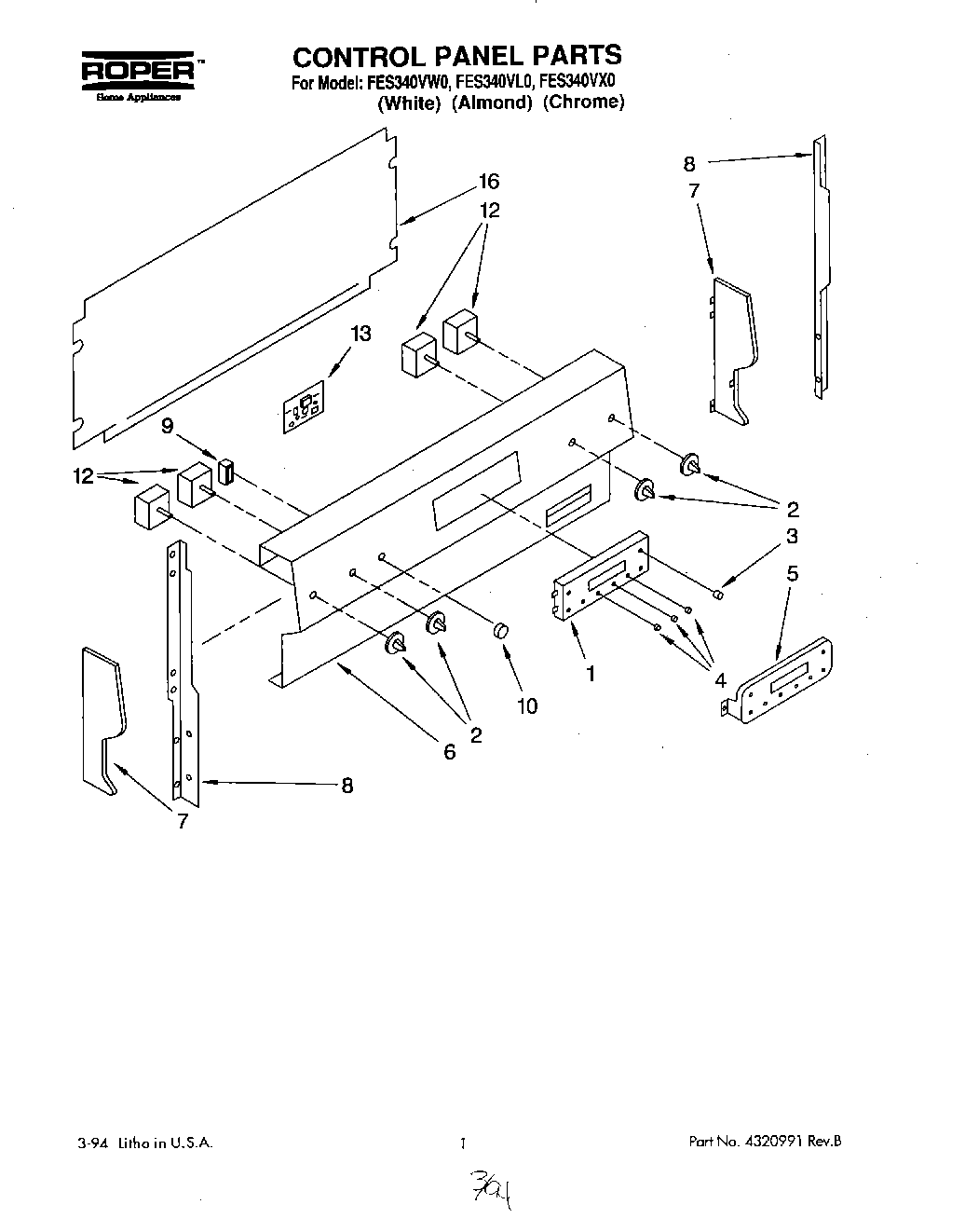

FES340VW0 01 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Use & Care Manual
Installation Guide
1Electric Range Control
2Knob, Control (4)
3Knob, ERC
4Button, Set (Contains 8 pcs)
5Lens
6WP308499 Whirlpool Nut
6Control Panel (White)
6Control Panel (Almond)
6WP488729 Whirlpool Refrigerator Door Screw
7End Cap R.H.
7End Cap L.H.
8Support, R.H.
8Support L.H.
9Light, Indicator Oven
10Lens, Indicator Light
11WP4314961 Whirlpool Lite Switch
12Switch, Infinite (4)
13Circuit Board
16Retainer, Bottom Insulation
