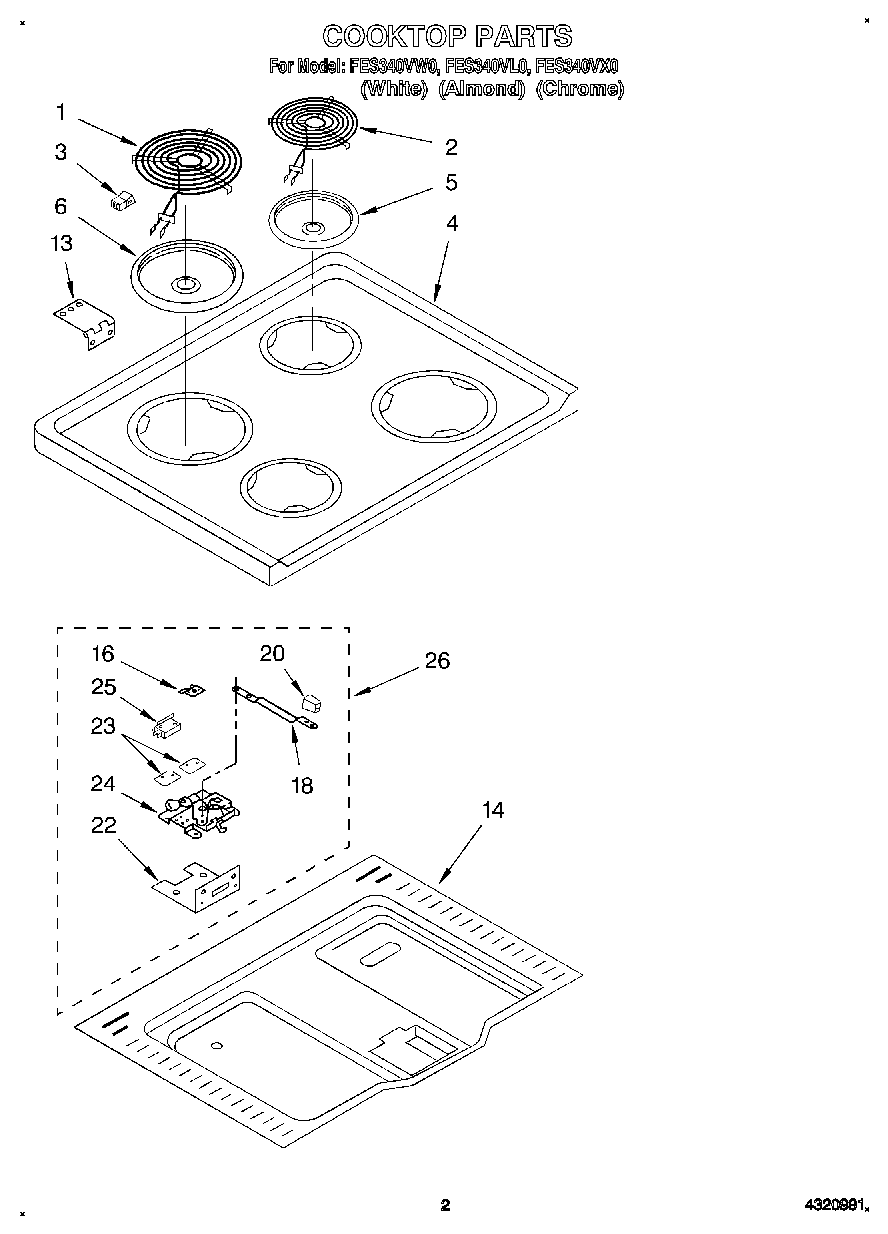

FES340VW0 02 – COOKTOP

Products

Position	Product
1	Element, 8“ (2)
2	Element, 6“ (2)
3	BURNER RECEPTACLE KIT
4	Cooktop (Chrome)
4	Cooktop (Almond)
4	Cooktop (White)
5	WPW10196406 Whirlpool 6" Chrome Drip Bowl
6	DRIP BOWL 8" W/HOLE CHROME
13	Hinge, Cooktop (L.H.)
13	Hinge, Cooktop (R.H.)
14	Bottom, Burner Box
16	Bracket, Switch
18	Handle, Latch
20	Knob, Latch Handle
22	Bracket, Latch Mounting
23	Insulator, Switch
24	Latch, Oven Door
25	Switch, Oven Door Latch
26	Latch Assembly (Complete)
