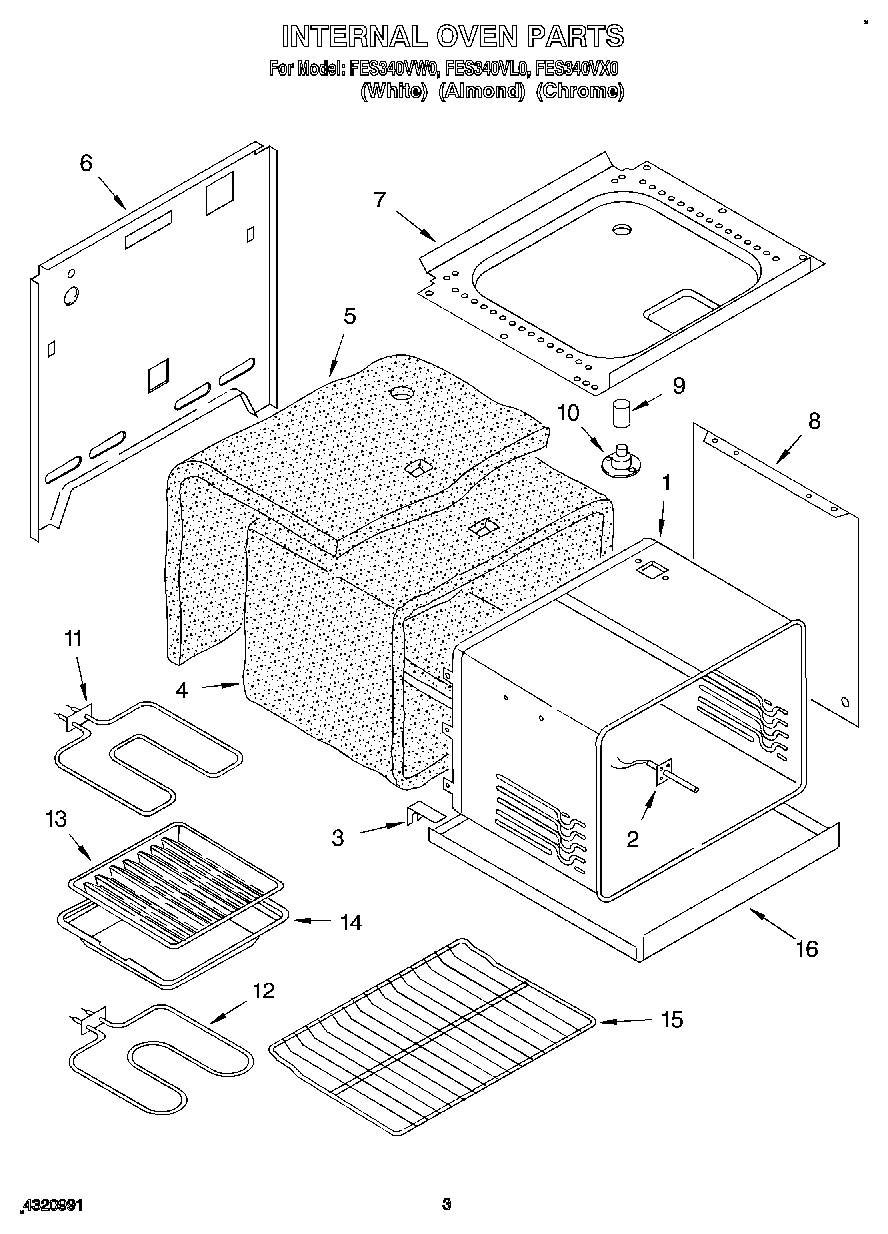

FES340VW0 03 – INTERNAL OVENadmin2025-04-26T11:38:36+00:00FES340VW0 03 – INTERNAL OVEN
Products
| Position | Product |
|---|
| 1 | Shell, Oven |
| 2 | Sensor, ERC |
| 3 | bracket, oven shell |
| 4 | WPW10208653 Whirlpool Insulation |
| 5 | Insulation, Top & Rear |
| 6 | Retainer, Rear |
| 7 | Baffle, Drip |
| 8 | Retainer, Insulation (2) |
| 9 | Tube, Vent |
| 10 | Eliminator, Smoke |
| 11 | WPY0063532 Whirlpool Broil Element |
| 12 | WP77001094 Whirlpool Oven Bake Element |
| 13 | Grid, Broiler |
| 14 | Pan, Broiler |
| 15 | Rack, Oven (2) |
| 16 | Retainer, Bottom |
