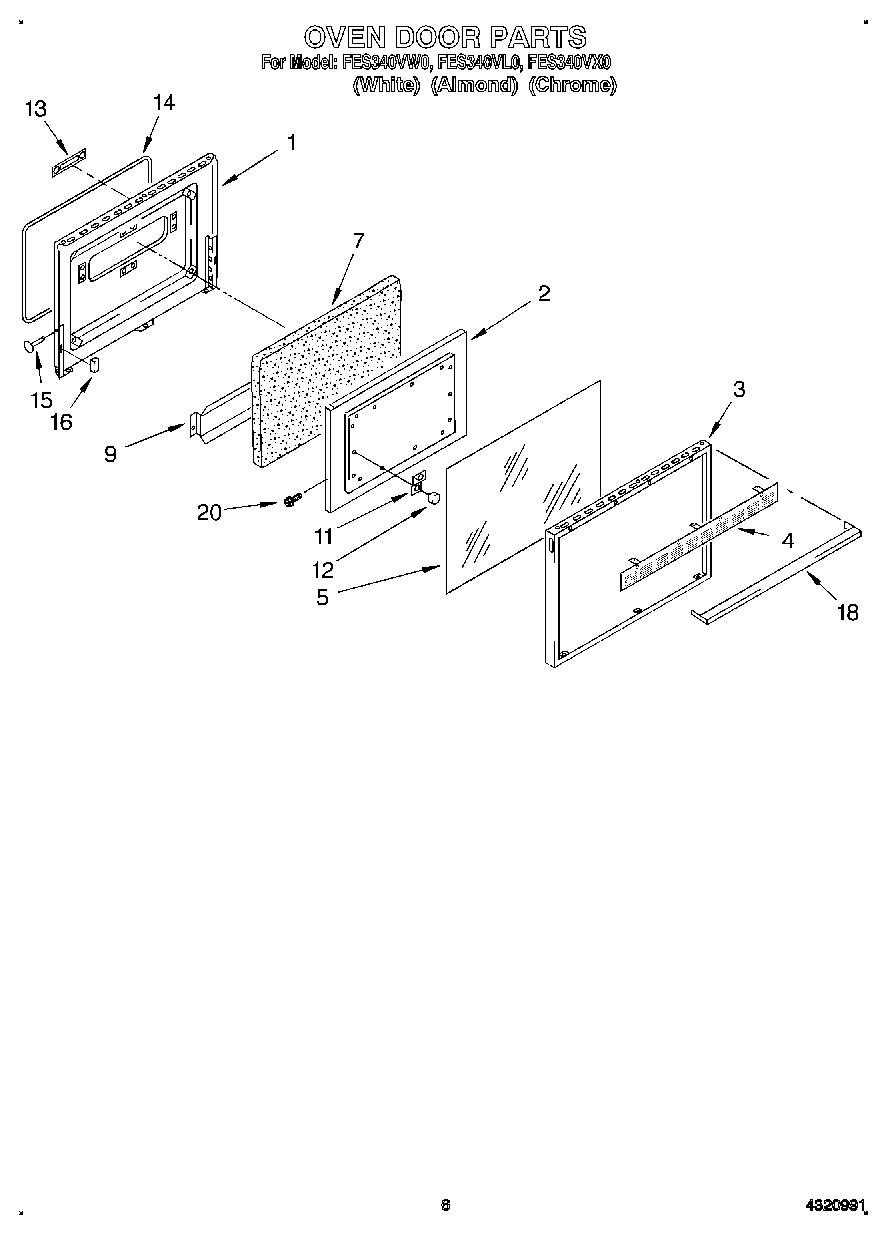

FES340VW0 05 – OVEN DOOR

Written by

Products

Position	Product
1	Retainer, Insulation
2	Liner, Oven Door
3	Frame, Oven Door
4	Trim, Top Door
5	Glass, Door
7	Insulation, Door
9	Baffle, Heat
11	bracket, glass support (4)
12	Bumper, Rubber
13	Plate, Latch
14	gasket assembly
15	Pin, Hinge (2)
16	Bumper, Window (2)
18	Handle
20	WP965173 Whirlpool Dishwasher Screw
