FES340YL0 05 – UNIT, LIT/OPTIONAL

FES340YL0 05 – UNIT, LIT/OPTIONAL

Written by

in

FES340YL0 05 – UNIT, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4356276
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	WPL 310433
	Paint, Spray 13 Oz. (Avocado)
	paint, spray 13 oz. (coffee)
	Paint, Touch-Up 1/2 Oz. (Coffee)
	72109 Whirlpool Dacor Avocado Touch-Up Paint
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	WPL LIT3184483
	WPL LIT3184010
	Instructions, Installation
	Grease
	8212471 Whirlpool Oven Paint
	Leveler (Thinner) (2oz.)
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	285006 Whirlpool Spray
	Wire, 25“ Roll (White 14 GA.)
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest (Uncut)
	Golden Harvest
	350942 Whirlpool Spray Paint
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	WPL 72112
	799344 Whirlpool Refrigerator Paint
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	350930 Whirlpool White Spray Paint
	WPL 799832
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly

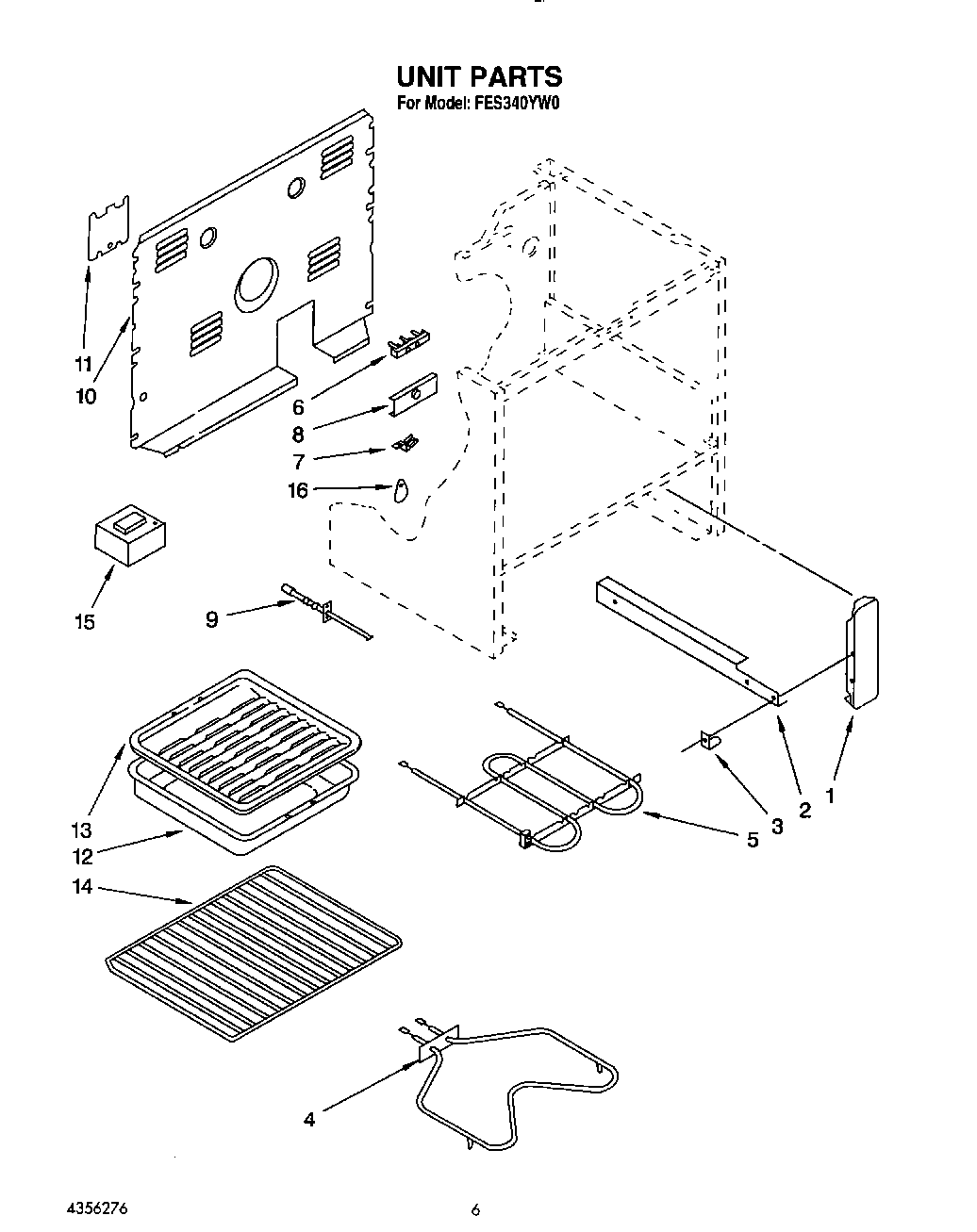

1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Screw, 10A x 1/2 (2) (Black)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
9	Block, Disconnect
9	Screw (2)
9	Sensor, Heat
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	Block, Balance
15	340184 Whirlpool Screw
16	Screw (2)
16	WPL 3169094
16	WPL 3169093
16	WPL 311982
16	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
