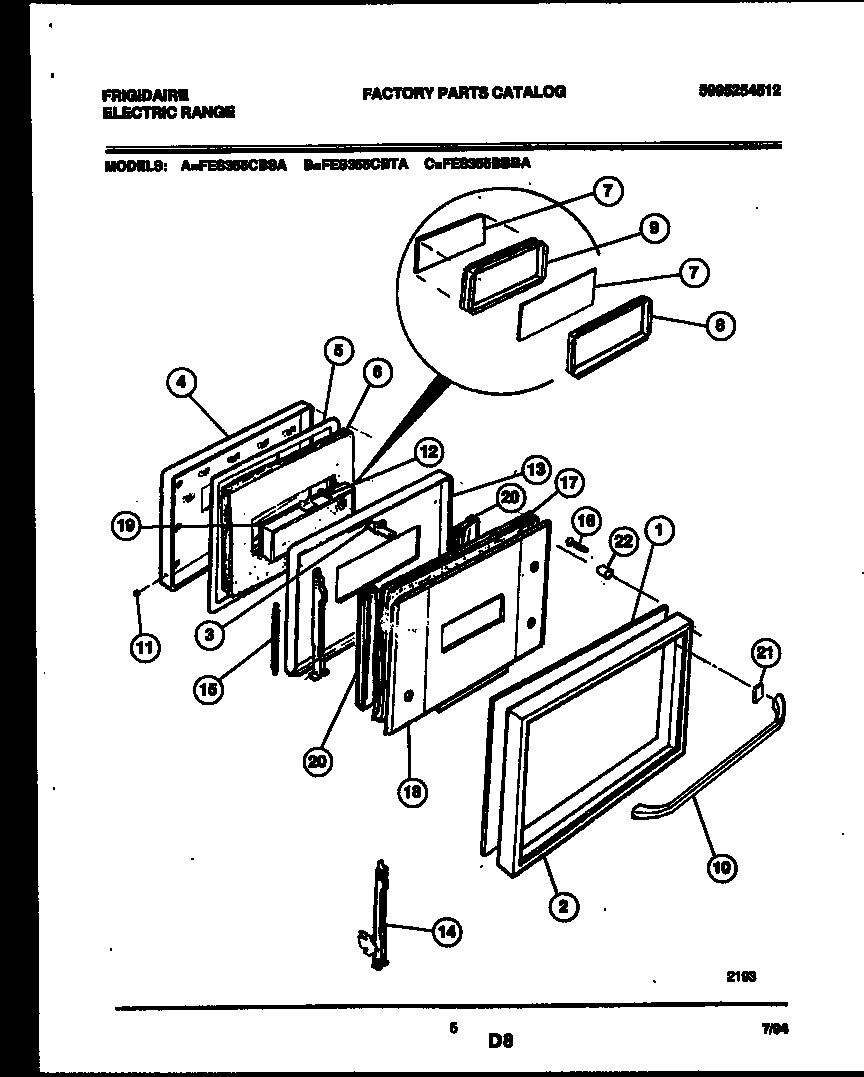

FES355CBTA 04 – DOOR PARTS

FES355CBTA 04 – DOOR PARTS

Written by

in

FES355CBTA 04 – DOOR PARTS

Products

PositionProduct
*10561WCI 5303300414
1WCI 5303304694
2WCI 5303304696
3WCI 5301167830
4BAFFLE-DOOR ASSY
5SEAL, DOOR
6WCI 5303269528
7GLASS-OVEN DOOR, HEAT BARRIER, (2)
8WCI 5303269564
9WCI 5303269679
10WCI 5303300170
11BUTTON PLUG
125304500008 Frigidaire Oven Screw
13WCI 5303300196
14HINGE-ASSEMBLY (2)
16WCI 5303299481
17INSULATION-AIRWASH
18WCI 5303300197
19GASKET-GLASS
20WCI 5303269530
21SPACER-ALMOND (2)
22WCI 5303212865
