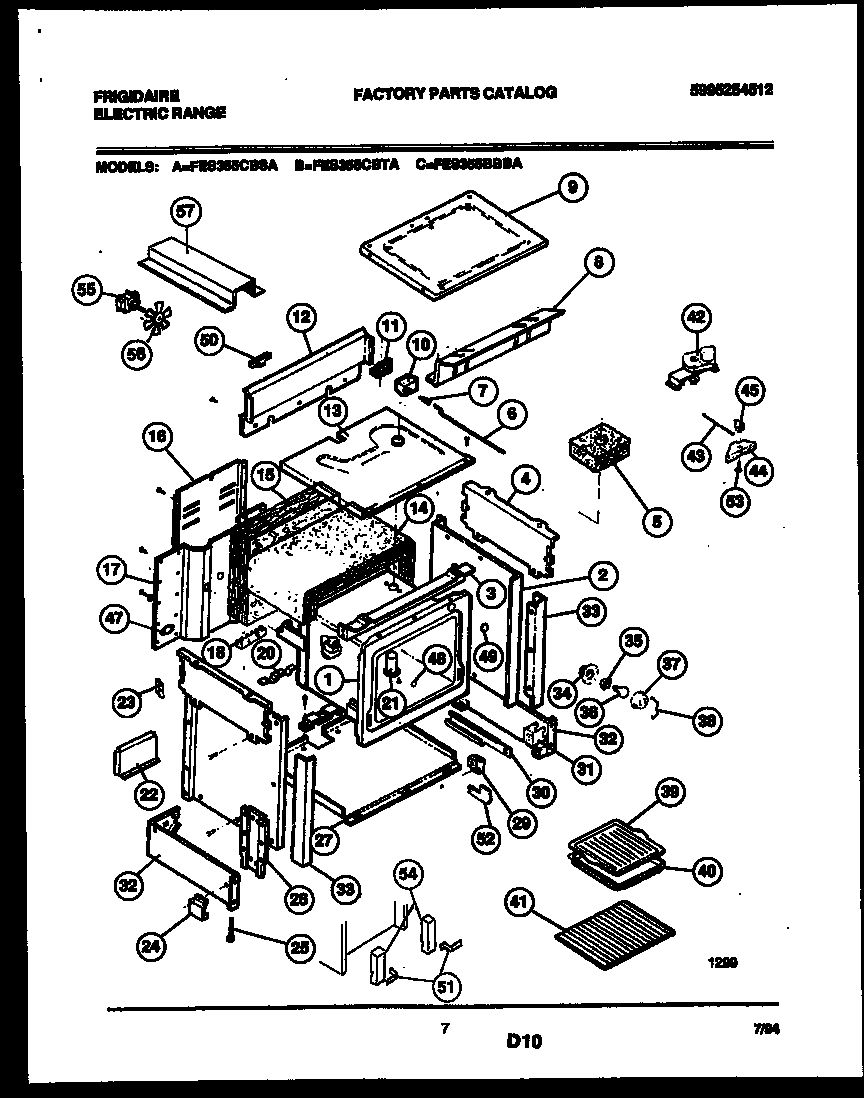

FES355CBTA 05 – BODY PARTS

Products

Position	Product
*10561	316217002 Frigidaire Oven Temperature Probe
*10561	WCI 316007700
*10561	WCI 3934058
1	WCI 5303293899
2	WCI 5303300142
3	WCI 5303293413
4	WCI 5303300143
5	WCI 3008673
6	ROD-SWITCH
7	WCI 08007444
8	WCI 316039801
9	WCI 5303293414
10	SWITCH, DOOR
11	BRACKET-DOOR SW
12	WCI 5303286183
13	WCI 5303300198
14	INSULATION, OVEN WRAP
15	INSULATION
16	WIRE, COVER
17	WCI 5303051530
18	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 3203574
21	VENT TUBE
22	WCI 3051634
23	PLATE-FILLER
24	SHIELD-TOE (2)
25	SCREW-LEVELING (4)
26	SUPPORT-FRONT (2)
27	WCI 5303300145
29	GUIDE-DRAWER FRNT (2)
30	WCI 5308015746
30A	RAIL, DRAWER LH
31	SPACER, DRAWER RAIL (2)
32A	PANEL-SIDE LH
32	PANEL-SIDE RH
33	WCI 5303300146
34	WCI 3051511
35	316116400 Frigidaire Oven Light Socket
36	316538904 Frigidaire Oven Lamp Light
37	5304524341 Frigidaire Lens
38	RETAINER-LENS
39	BROILER GRILL
40	BROILER PAN
41A	5304531722 Frigidaire Rack
41	WCI 5303300202
42	MOTOR-LATCH ASSY
43	WCI 3051649
44	HOUSING-DOOR LATCH
45	LATCH-DOOR
47	SWITCH, THERMAL CUTOUT
48	BUTTON-PLUG
49	BUTTON-PLUG
50	WCI 5303300148
51	WCI 5303280340
52	WCI 3051810
53	AXLE - HINGE (2)
54	WCI 5303280341
55	WCI 5303284447
56	WCI 316017600
57	WCI 5303284448
