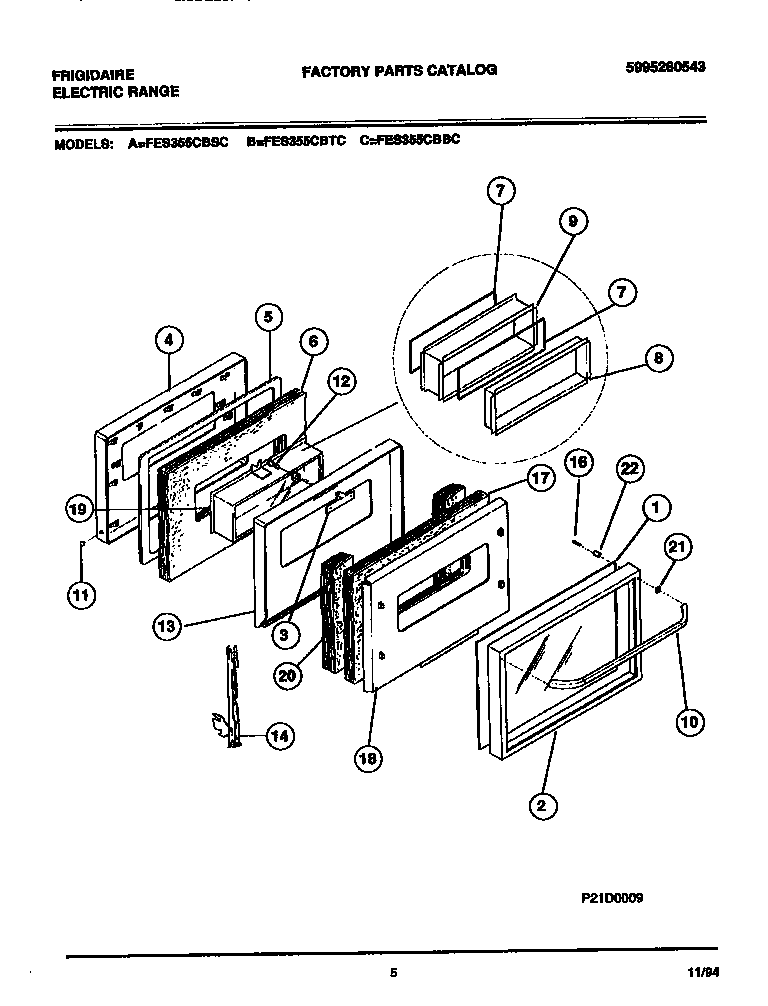

FES355CBTC 04 – DOOR

FES355CBTC 04 – DOOR

Written by

in

FES355CBTC 04 – DOOR

Products

PositionProduct
1WCI 5303304694
2WCI 5303304696
3WCI 5301167830
4BAFFLE-DOOR ASSY
5SEAL, DOOR
6WCI 5303269528
7GLASS-OVEN DOOR, HEAT BARRIER, (2)
8WCI 5303269564
9WCI 5303269679
10HANDLE-DOOR, ALMOND, OVEN
11BUTTON PLUG
125304500008 Frigidaire Oven Screw
13WCI 5303300196
14HINGE-ASSEMBLY (2)
16WCI 5303299481
17INSULATION-AIRWASH
18WCI 5303300197
19GASKET-GLASS
20INSULATION-AIRWASH (2)
21SPACER-HANDLE
22WCI 5303212865
22AWCI 5303300414
