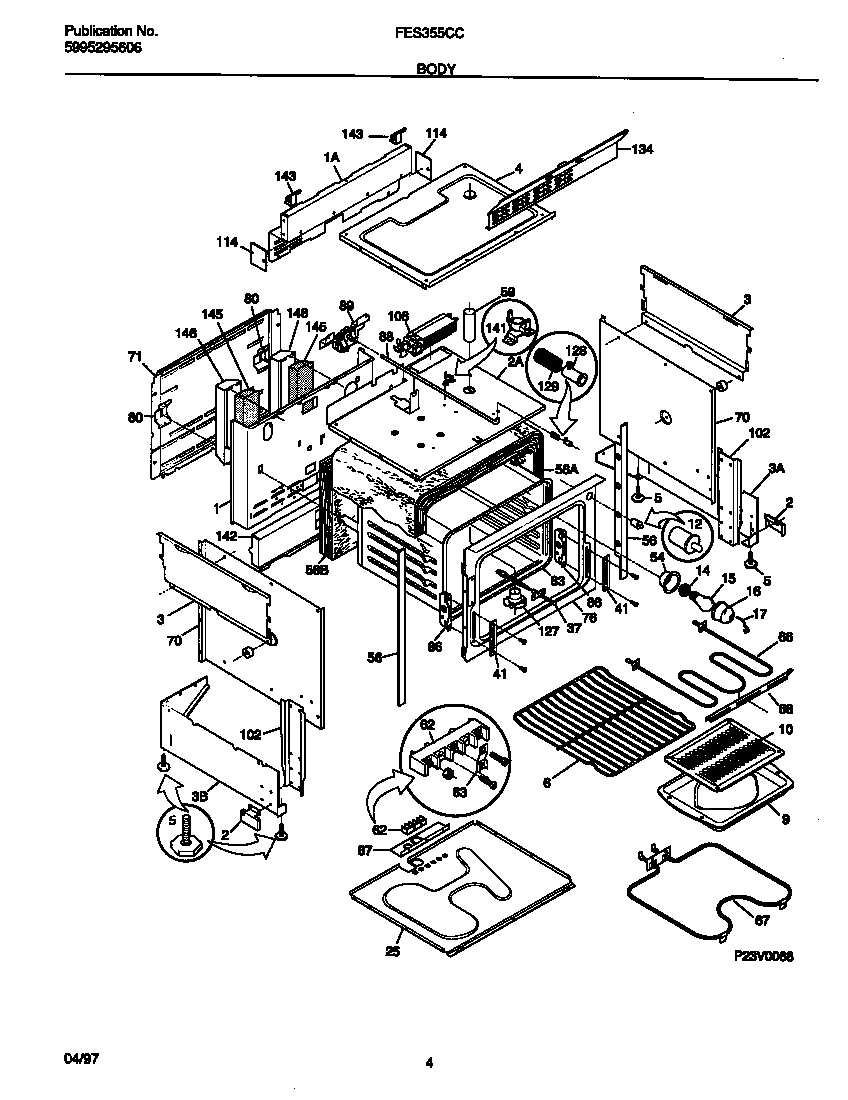

FES355CCBC 03 – BODY

FES355CCBC 03 – BODY

Written by

in

FES355CCBC 03 – BODY

Products

PositionProduct
*89213WCI 5303325173
*892085303211311 Frigidaire Refrigerator Screw
*892115304464772 Frigidaire Refrigerator Wire Tie
*89214SWITCH, THERMAL CUTOUT
*89206WCI 318055600
*89212WCI 5303321212
*89207316205500 Frigidaire Oven Nut
*892105303307980 Frigidaire Oven Screw
*89204SHIELD-TOE (2)
*89205SPACER-T.C.O. (NON-ILLUSTRATED)
*89209WCI 5303304030
1WCI 5303310527
1WCI 5303311161
2Clip,insulator
2WCI 5303311158
3WCI 5303300143
3PANEL-SIDE RH
3PANEL-SIDE LH
4WCI 318133400
5CWCI 3203576
5BWCI 3203575
6318025314 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
25WCI 5303311141
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56TRIM-OVEN FRONT,BLACK
58INSULATION WRAPPER
58WCI 5303310538
59WCI 5303311139
62A5304409888 Frigidaire Oven Terminal Block with Hardware
63WCI 5303310517
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
68WCI 5303307563
70WCI 5303300142
71WCI 5303310515
76AWCI 318124100
76B318332211 Frigidaire Oven Roller
80WCI 5303301261
83WCI 318089600
86WCI 5303310524
87WCI 318111800
88WCI 5303311160
89318095956 Frigidaire Oven Motor
102WCI 5303311142
108WCI 318073001
114PLATE-FILLER
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
134WCI 5303319029
141Thermostat,safety ,for fan
142WCI 5303310541
143WCI 5303300148
145WCI 5303311108
146WCI 318038500
