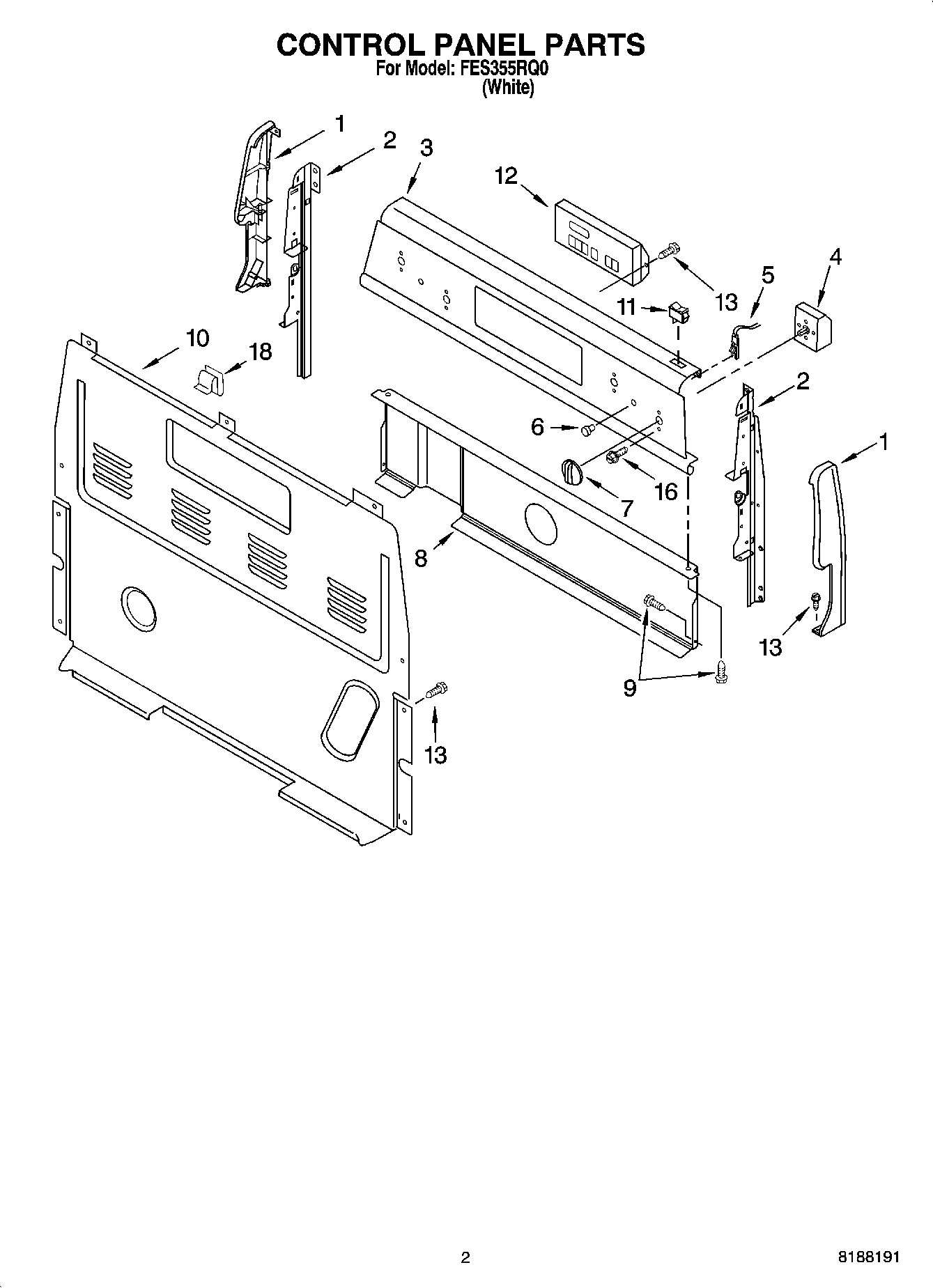

FES355RQ0 02 – CONTROL PANEL PARTS

FES355RQ0 02 – CONTROL PANEL PARTS

Written by

in

FES355RQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Console
4SWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
113149360 Whirlpool Light Switch
12WP6610457 Whirlpool Electronic Control Board + Core
13SCREW
16WP3400882 Whirlpool Screw
18WP8273564 Whirlpool Clip
