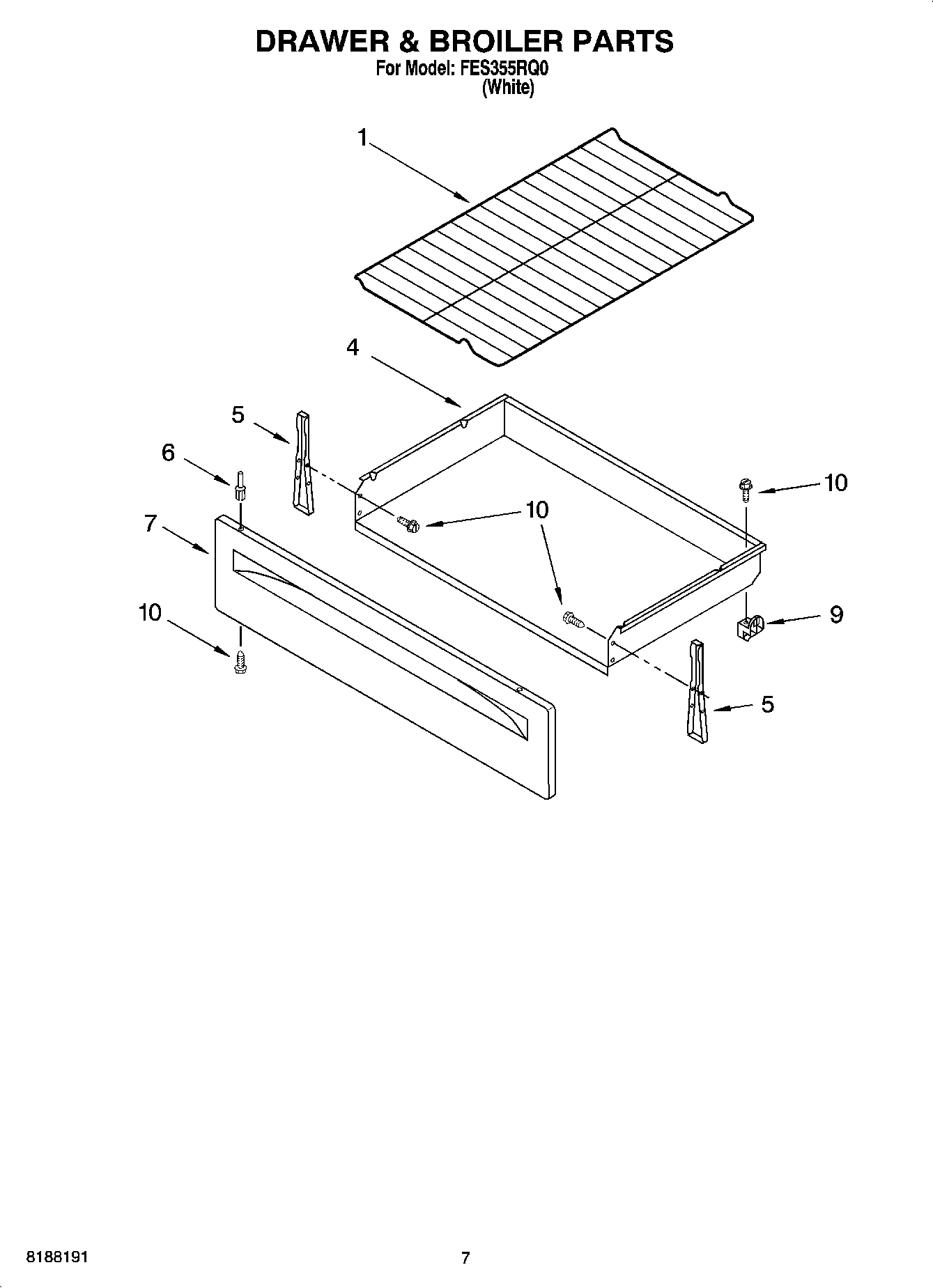

FES355RQ0 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI147030A
	WP3196154 Whirlpool Screw Assembly
	Grease
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WPL 8524132
	WPL 8524114
	WPL ARI147029A
	WPL ARI147028A
	WPL ARI147027A
	WPL ARI147026A
	WPL ARI147025A
	WPL ARI147024A
	WPL ARI147023A
	Harness, Wire (Oven Light)
	WPL 9758173
	WPL 9761468
	WPL 9761458
	242831 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	Wire, 25` Roll (Red 14 Ga.)
	Wire (14 Ga. 200 c Brown)
	3400964 Whirlpool Oven Clip
	W11447673 Whirlpool Range Tip Anchor
	814381 Whirlpool Pin
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	285006 Whirlpool Spray
	Clip, Ground Wire
1	WPW10256908 Whirlpool Oven Range Rack
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196814 Whirlpool Rivet
7	W11219377 Whirlpool Drawer Panel
9	WP8053334 Whirlpool Drawer Glide
10	WP3400832 Whirlpool Screw
