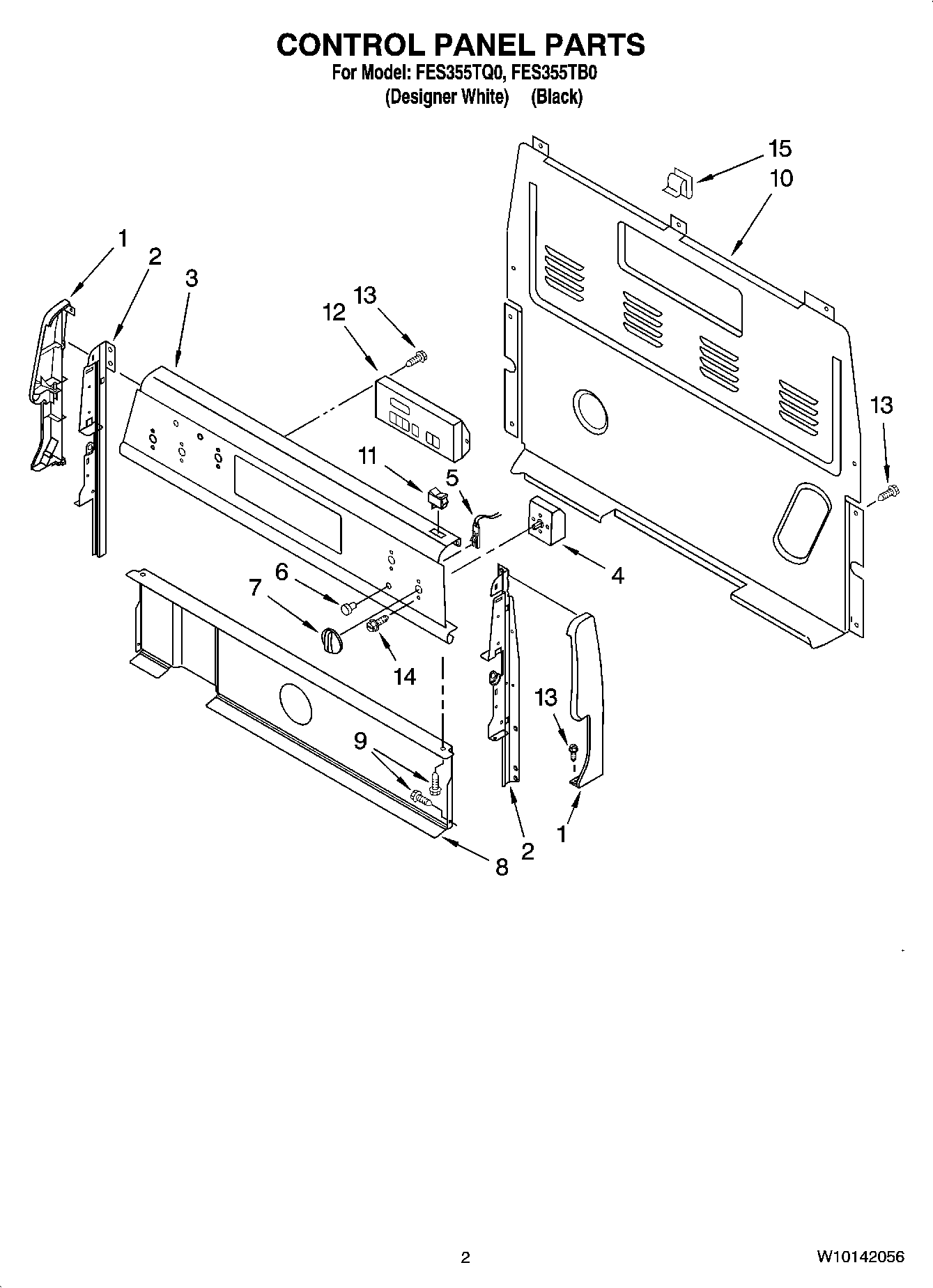

FES355TB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap, Right Hand (Black)
1	Endcap (Black Left Hand)
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (Black)
3	Panel, Backguard (White)
4	WP3148952 Whirlpool Oven Infinite Switch
4	SWITCH-INF
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP3196232 Whirlpool Knob
7	WP3196231 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
11	WP4314961 Whirlpool Lite Switch
11	3149360 Whirlpool Light Switch
12	WP6610457 Whirlpool Electronic Control Board + Core
12	WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
13	SCREW
14	WP3400882 Whirlpool Screw
15	WP8273564 Whirlpool Clip
