FES364BW2 01 – COOKTOP, LITERATURE

Products

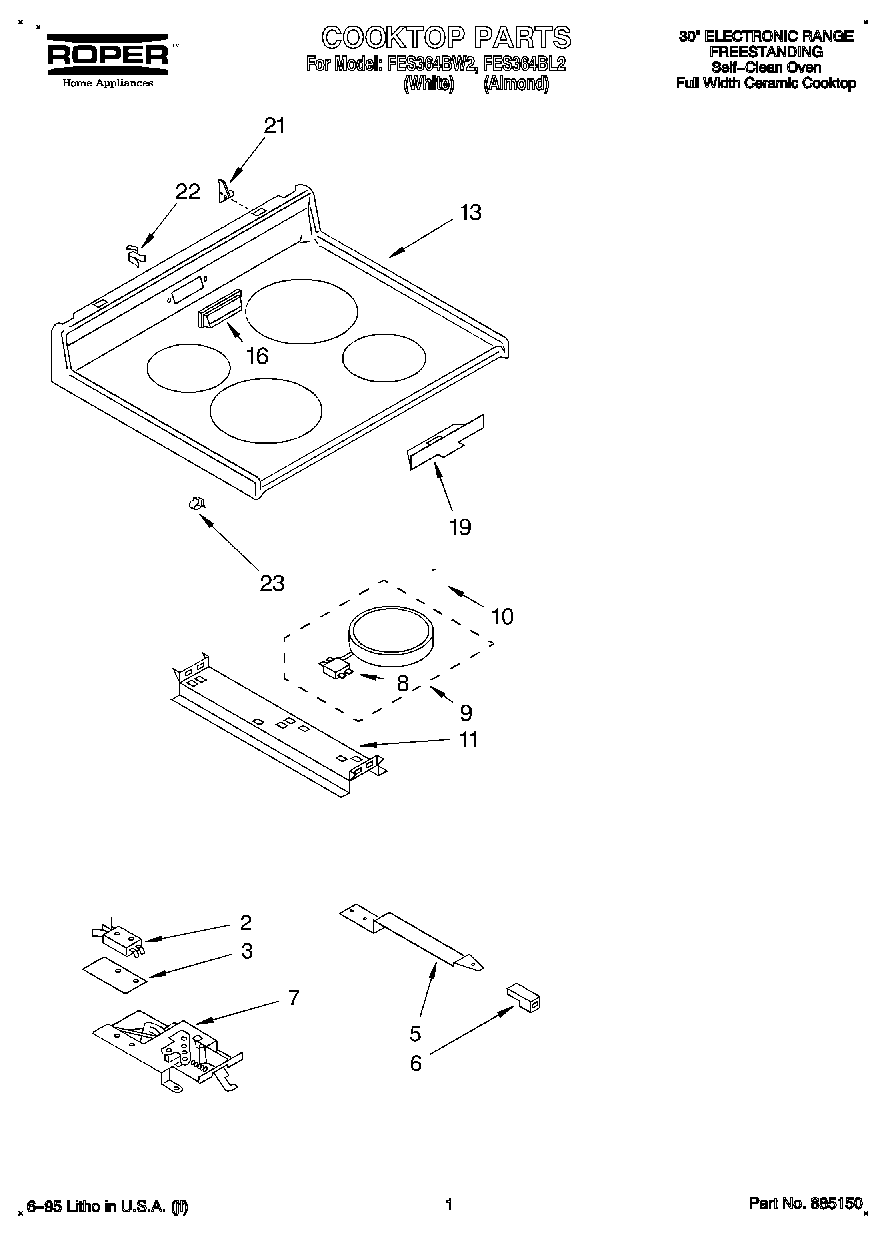

PositionProduct
Wiring Diagram
Instructions, Installation
WPL LIT677973
WPL LIT3150400
Use and Care Guide
2Safety Switch
2Screw (2)
3Insulator, Switch
5Screw
5Handle, Latch
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
7Latch Mechanism
8Limiter, Temp. (1700W, RF-LR)
8Limiter, Temp. (2100W, LF-RR)
9Element, Surface (Includes No.1) (1700W, RF-LR)
9Element, Surface (Includes No.1) (2100W, LF-RR)
10WP486754 Whirlpool Compactor Screw
10Spring, Locator
11Back Splash (Screw (4) 10AB x 1/2“)
11Bracket, (2) Element Support
13Cooktop (Almond Mdl.)
13WP308685 Whirlpool Microwave Screw
13Cooktop (White Mdl.)
16cover, vent (almond)
16Cover, Vent (White)
19Shield, Probe
21Bracket, Cooktop (Right)
21Bracket, Cooktop (Left)
21SCREW
22Clip, Vent Cover
23Clip
