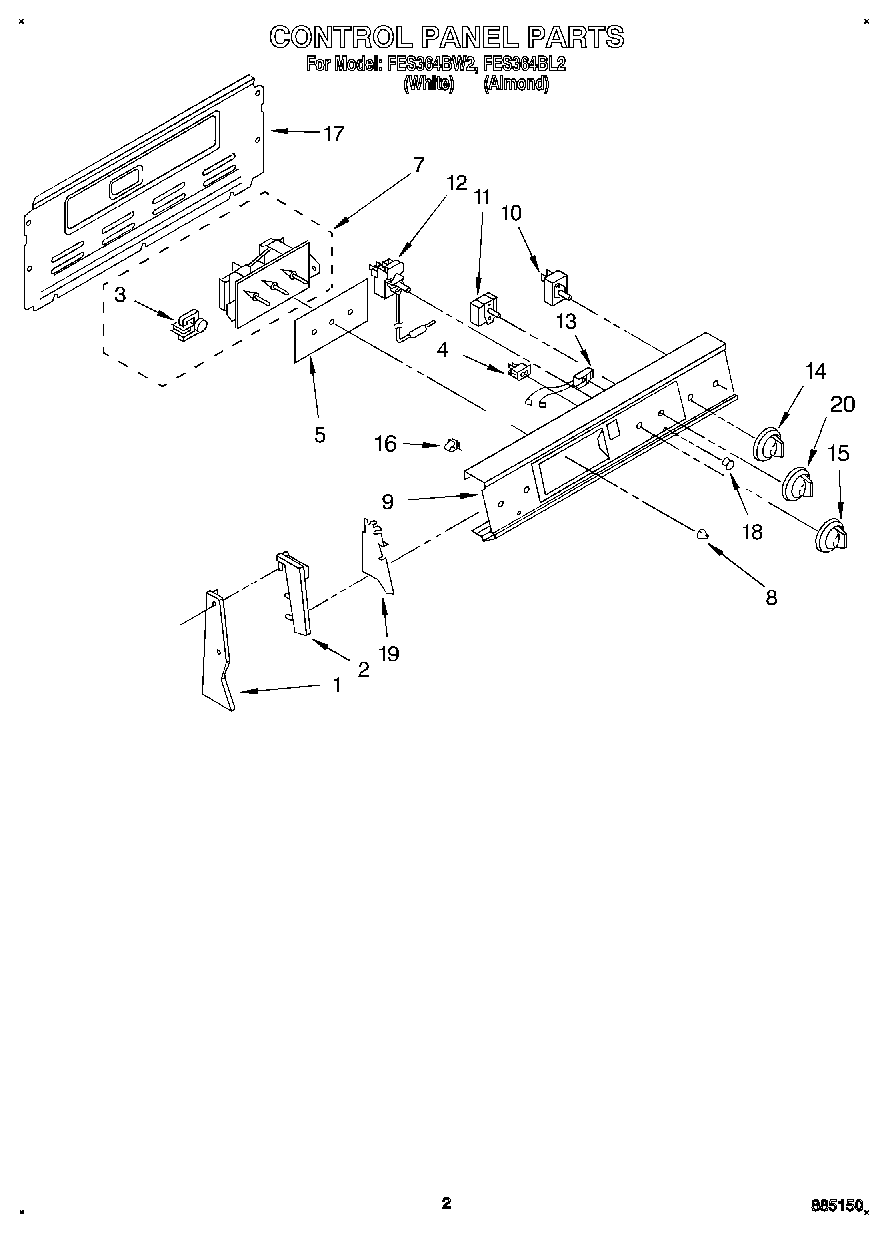

FES364BW2 02 – CONTROL PANEL

Products

Position	Product
1	End Trim R.H.
1	End Trim L.H.
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
3	Motor, Timer
4	WP4314961 Whirlpool Lite Switch
5	Glass, Timer
7	Timer, Control
8	WP3169181 Whirlpool Knob
9	Panel, Control
10	SWITCH-INF
10	Screw, 8-32 x 3/16 (2)
10	WP3148952 Whirlpool Oven Infinite Switch
11	Switch, Selector (5 Position)
12	WP313808 Whirlpool Screw
12	Thermostat, 0ven
13	Indicator Light (1)
13	Light, Indicator (250V)
13	Light, Indicator (Includes No. 12) (Surface Unit On)
14	WP3149983 Whirlpool Knob
15	Knob, Oven Temp.
16	Clip, Snap-In
17	Rear Cover Contr
17	SCREW
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob, Selector
