FES364BW2 03 – DOOR AND DRAWER
Written by
in

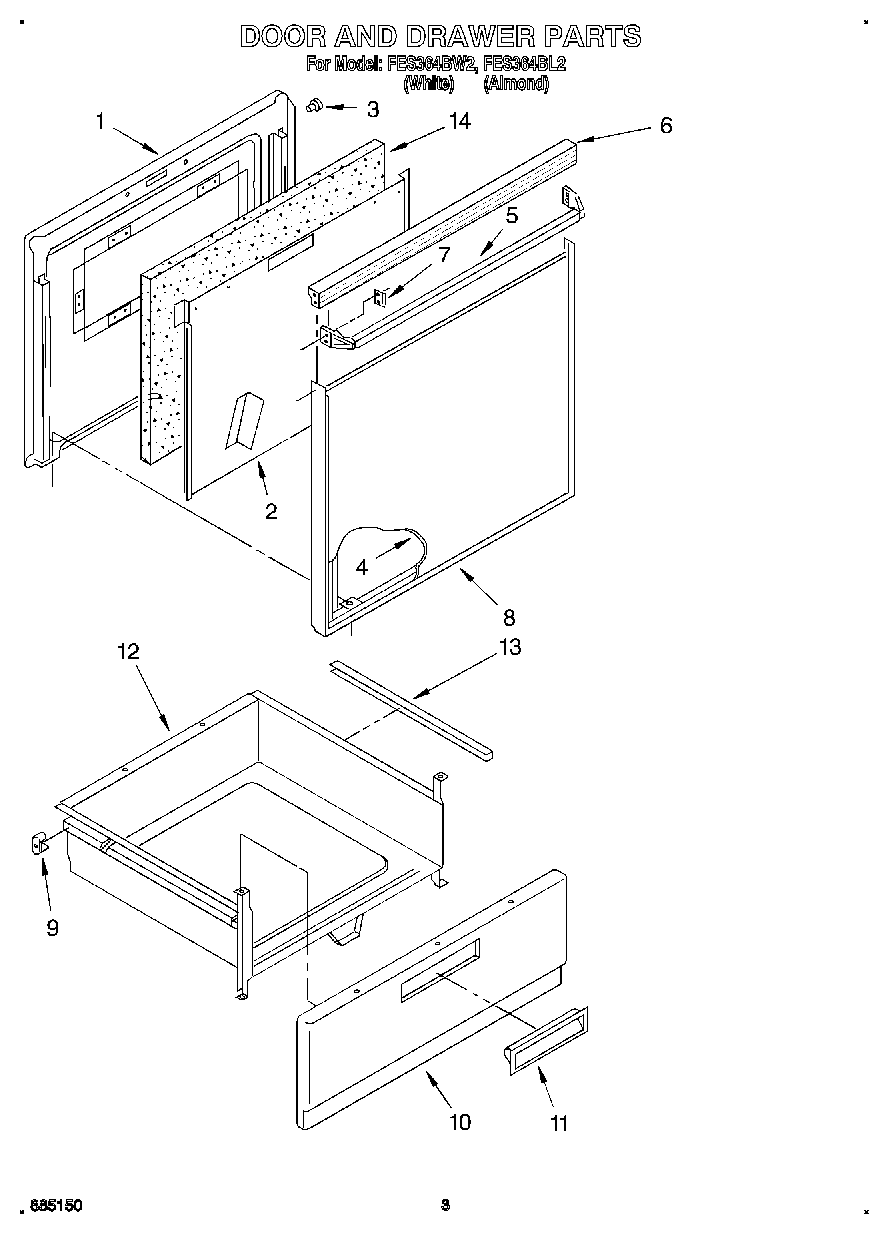

FES364BW2 03 – DOOR AND DRAWER
Products
Position
Product
1
Liner, Oven Door
2
Screw
2
Retainer, Insulation
3
Bumper (4)
4
Panel, Door (Black Glass)
5
Handle, Door (White/Almond)
6
Top, Door Vent
7
Clip, Mtg (2)
8
Screw, 10A x 1/2 (2) (Black)
8
Handle, Door (Screw (4))
8
Frame, Door (Black)
9
Glide, Rear (2)
10
Panel, Drawer (Black)
10
WP488627 Whirlpool Refrigerator Screw
11
Handle, Drawer
11
Grill, Bottom (Screw (3))
12
Drawer, Utility
13
Protector, Drawer (2)
14
Insulation
←
