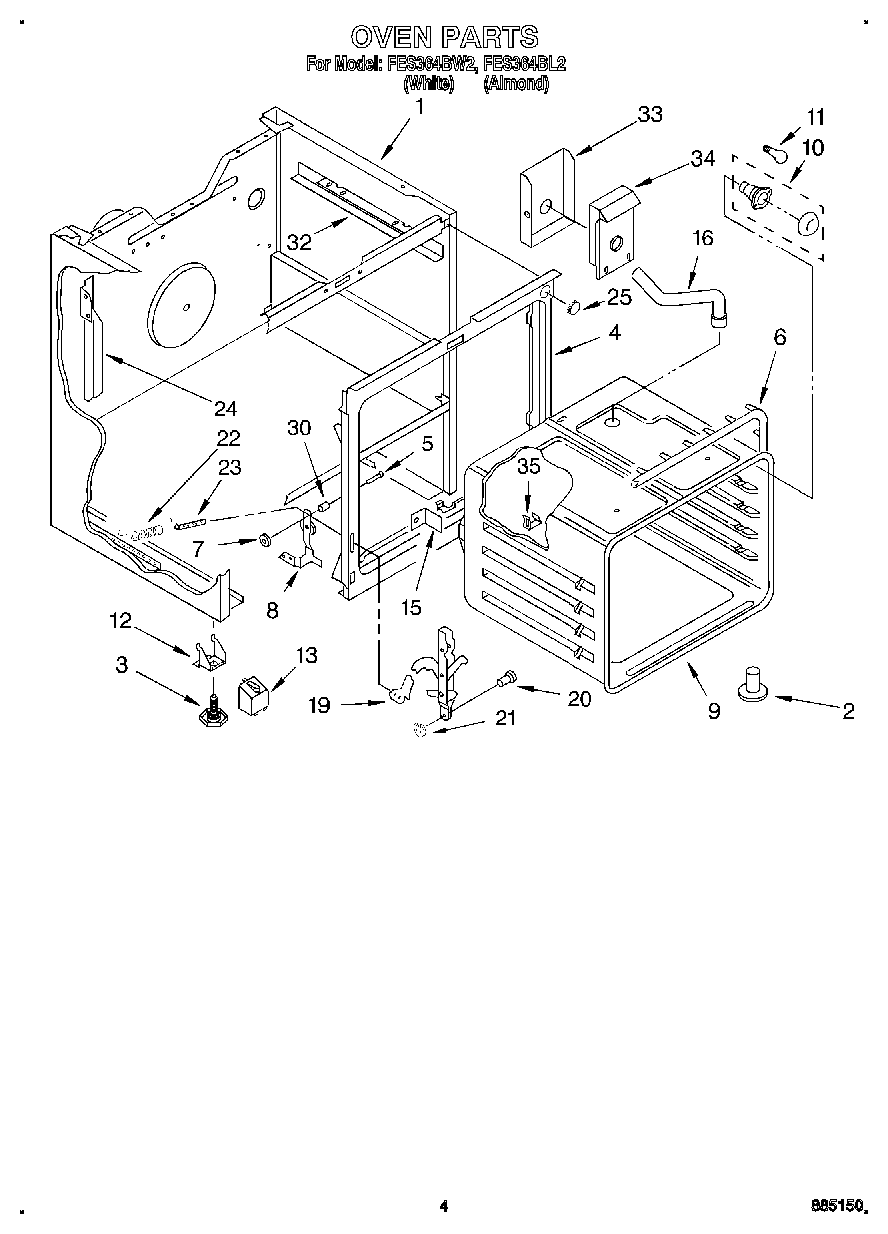

FES364BW2 04 – OVEN

Products

Position	Product
1	Main Chassis (White)
1	Main Chassis (Almond)
2	Tube, Vent
3	Leg Leveling (4)
4	Front Frame
4	Screw (Top)
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge, L.H.
8	Hinge, R.H.
9	Oven (30“ Pyro)
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
12	Support, Foot (2)
13	Cover, Foot (2)
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	SCREW
24	Wire Cover
24	Wire Cover-Controls (Right)
25	Plug Button
30	Snubber, Door (2)
32	WP3390631 Whirlpool Screw
32	Support, Chassis
33	Shield, Vent
33	Screw (2)
34	WP488627 Whirlpool Refrigerator Screw
34	Vent, Box
35	98005642 Whirlpool Clip
35	WPL 3169094
35	WPL 3169093
