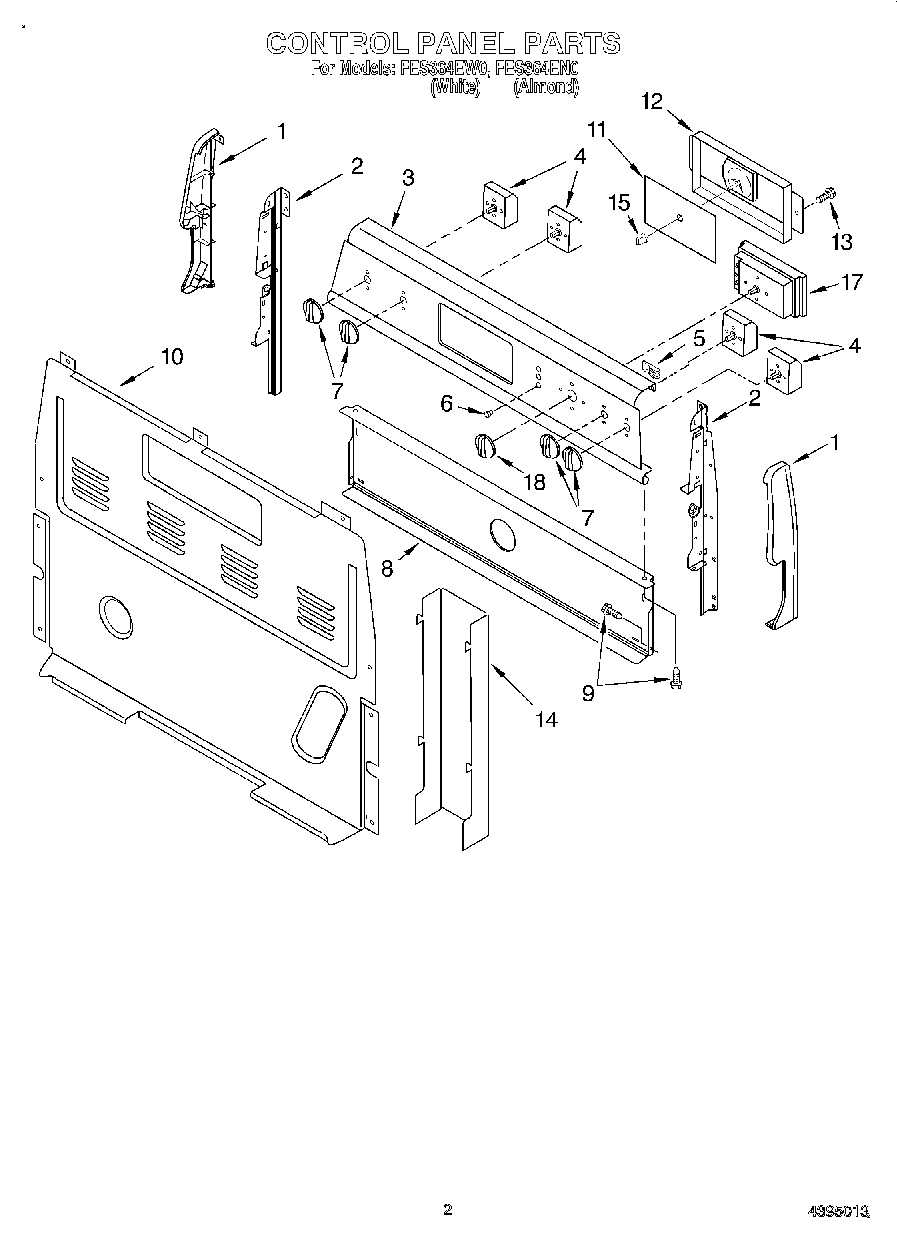

FES364EW0 02 – CONTROL PANEL

FES364EW0 02 – CONTROL PANEL

Written by

in

FES364EW0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Left Hand)
1Endcap (Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
4Switch, Infinite (Screw (8))
5Indicator, Surface
6WP3196068 Whirlpool Light Lens
7WP3196027 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Glass, Timer
12Timer, Clock
14SCREW
14WPW10326122 Whirlpool Black Cover
15WP3169181 Whirlpool Knob
173196172 Whirlpool Oven Screw
17Control, Oven
18Knob, Oven Control
