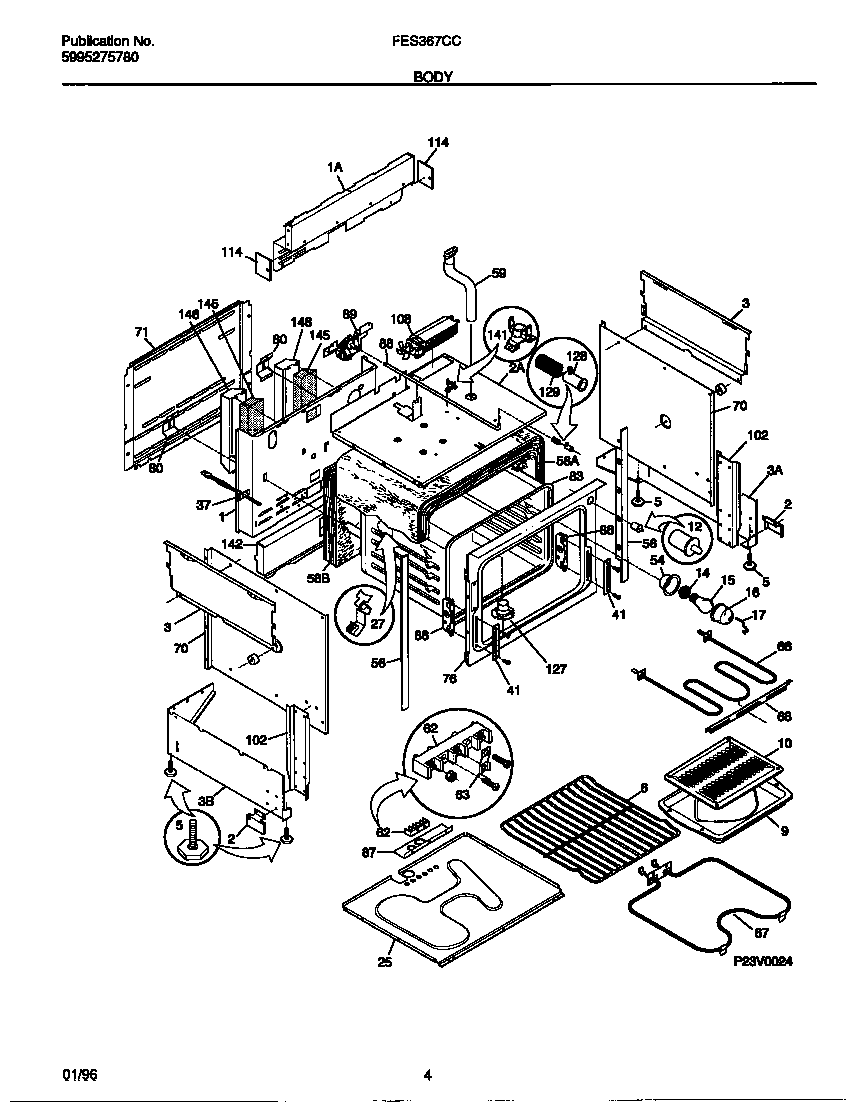

FES367CCTC 03 – BODY

FES367CCTC 03 – BODY

Written by

in

FES367CCTC 03 – BODY

Products

PositionProduct
*39651316205500 Frigidaire Oven Nut
*39646WCI 318055600
*396485303211311 Frigidaire Refrigerator Screw
*396525304464772 Frigidaire Refrigerator Wire Tie
*39645WCI 3203576
*39644WCI 3203575
*39654SWITCH, THERMAL CUTOUT
*396435304500008 Frigidaire Oven Screw
*396505303307980 Frigidaire Oven Screw
*39649WCI 5303304030
*39647SPACER-T.C.O. (NON-ILLUSTRATED)
*39653WCI 5303311207
1WCI 5303310527
1WCI 5303311161
2SHIELD-TOE (2)
2WCI 5303311158
3WCI 5303300143
3PANEL-SIDE RH
3PANEL-SIDE LH
6318025314 Frigidaire Oven Rack
9WCI 5303310521
10WCI 5303310520
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
25WCI 5303311141
27Clip,insulator
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 318002603
58WCI 5303310538
58INSULATION WRAPPER
59WCI 318072502
625304409888 Frigidaire Oven Terminal Block with Hardware
63AWCI 5303310517
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
68WCI 5303307563
70WCI 5303300142
71WCI 5303310515
76WCI 5303311159
80WCI 5303301261
83WCI 5303310523
86WCI 5303310524
87WCI 5303311146
88WCI 5303311160
89318095956 Frigidaire Oven Motor
102WCI 5303311142
108WCI 318073001
114PLATE-FILLER
127BWCI 5303311195
127A318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
141Thermostat,safety ,for fan
142WCI 5303310541
145WCI 5303311108
146WCI 318038500
