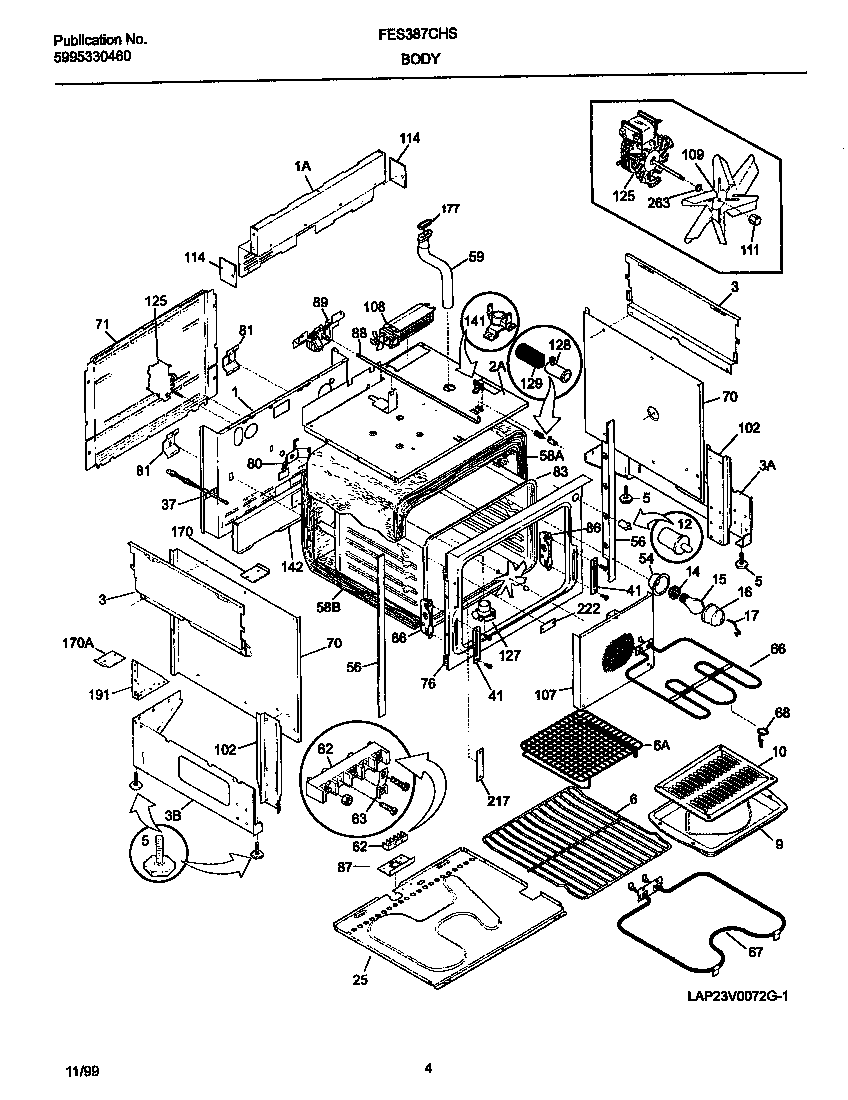

FES387CHSC 03 – BODY

FES387CHSC 03 – BODY

Written by

in

FES387CHSC 03 – BODY

Products

PositionProduct
*818045303211311 Frigidaire Refrigerator Screw
*818065303307980 Frigidaire Oven Screw
*81805SCREW
1WCI 318066402
1WCI 318070901
2WCI 318108600
3WCI 5303300143
3PANEL-LOWER SIDE RH
3PANEL-LOWER SIDE LH
5318175503 Frigidaire Screw with Bolt
6Shelf,broiler pan
6318025314 Frigidaire Oven Rack
7318332211 Frigidaire Oven Roller
9WCI 318138800
10WCI 318126400
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
23FASTENER, SWITCH
25WCI 318179100
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 318002602
58INSULATION WRAPPER
58WCI 5303310538
59WCI 318072502
625304409888 Frigidaire Oven Terminal Block with Hardware
63WCI 5303310517
64PLATE
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 5303310515
76WCI 318124100
80WCI 5303320846
81WCI 5303301261
83Liner,oven
86WCI 5303310524
87WCI 318111803
88WCI 5303311160
89WCI 5304404899
89WCI 318120702
102WCI 5303311142
107WCI 318119600
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
114PLATE-FILLER
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
141SWITCH, THERMAL CUTOUT
142WCI 318123901
170WCI 318175700
170WCI 318175701
177WCI 318053800
191WCI 5303304030
217WCI 316042300
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263316008401 Frigidaire Washer P-1
