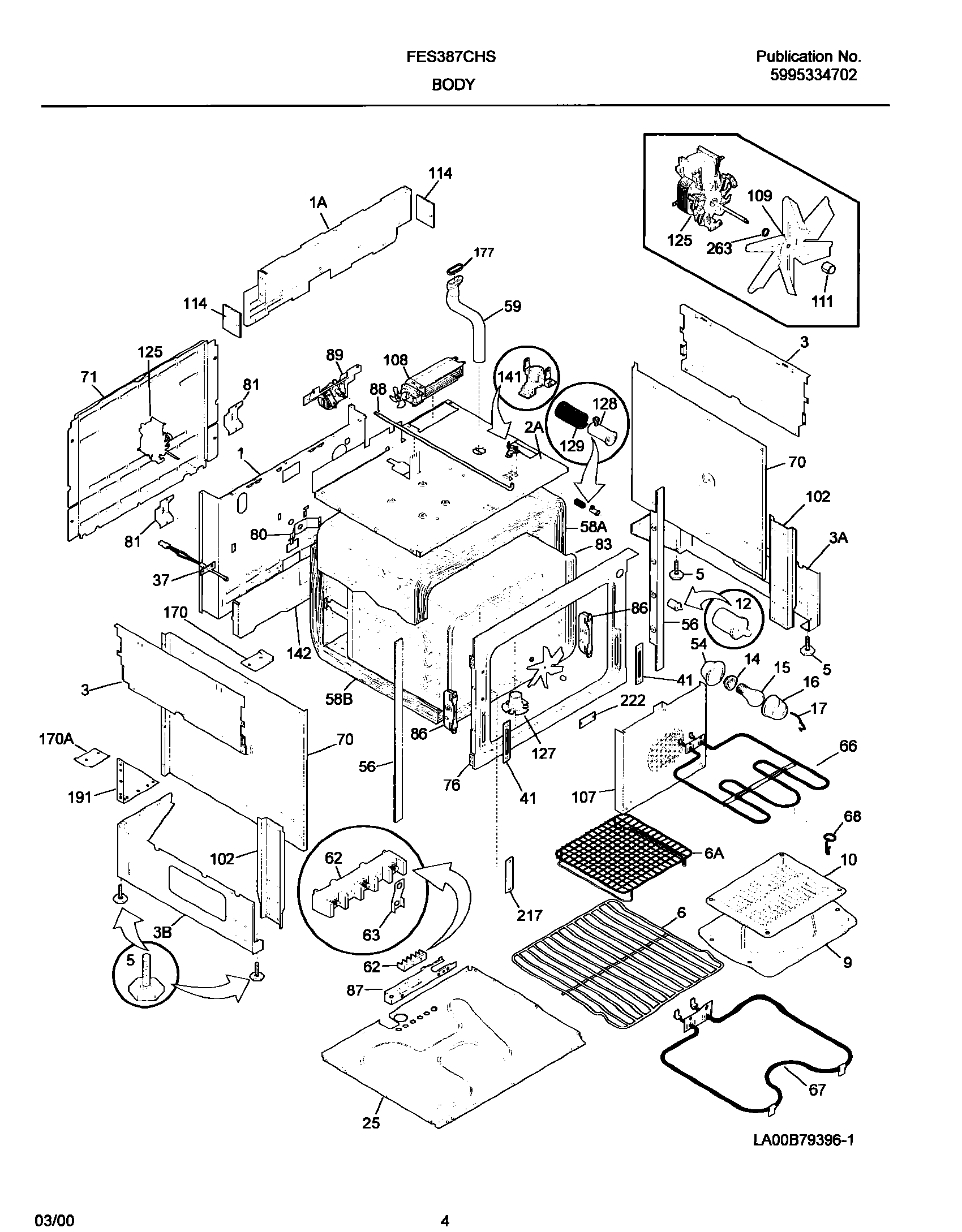

FES387CHSD 05 – BODY

Products

Position	Product
NI	5303211311 Frigidaire Refrigerator Screw
NI	5303307980 Frigidaire Oven Screw
NI	WCI 5303311207
NI	SCREW
1A	WCI 318070901
1	WCI 318066402
2A	WCI 318108600
3A	PANEL-LOWER SIDE RH
3B	PANEL-LOWER SIDE LH
3	WCI 5303300143
5	318175503 Frigidaire Screw with Bolt
6	318025314 Frigidaire Oven Rack
6A	Shelf,broiler pan
9	WCI 5303317977
10	WCI 5303317976
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
25	WCI 318179107
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 5303310514
56	WCI 318002602
58B	WCI 318132609
58A	INSULATION WRAPPER
59	WCI 318072502
62	5304409888 Frigidaire Oven Terminal Block with Hardware
63	WCI 5303310517
66	318255605 Frigidaire Oven Broil Element Range
67	BAKE ELEMENT
68	5304403015 Frigidaire Oven Support
70	WCI 5303300142
71	WCI 5303310515
76	WCI 318124100
80	WCI 5303320846
81	WCI 5303301261
83	Liner,oven
86	WCI 5303310524
87	WCI 318111803
88	WCI 5303311160
89	WCI 318120710
89	318095956 Frigidaire Oven Motor
102	WCI 5303311142
107	WCI 318119600
108	WCI 318073001
109	FAN BLADE
111	316136600 Frigidaire Oven Range Lock Nut
114	WCI 318175100
125	5303311202 Frigidaire P1-Motor-Conv
127	318317100 Frigidaire Adapter Assembly
128	WCI 5303311163
129	5303311164 Frigidaire Oven Spring
141	SWITCH, THERMAL CUTOUT
142	WCI 318123901
170	WCI 318175700
170A	WCI 318175701
177	WCI 318053800
191	WCI 5303304030
217	WCI 316042300
222	PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263	316008401 Frigidaire Washer P-1
