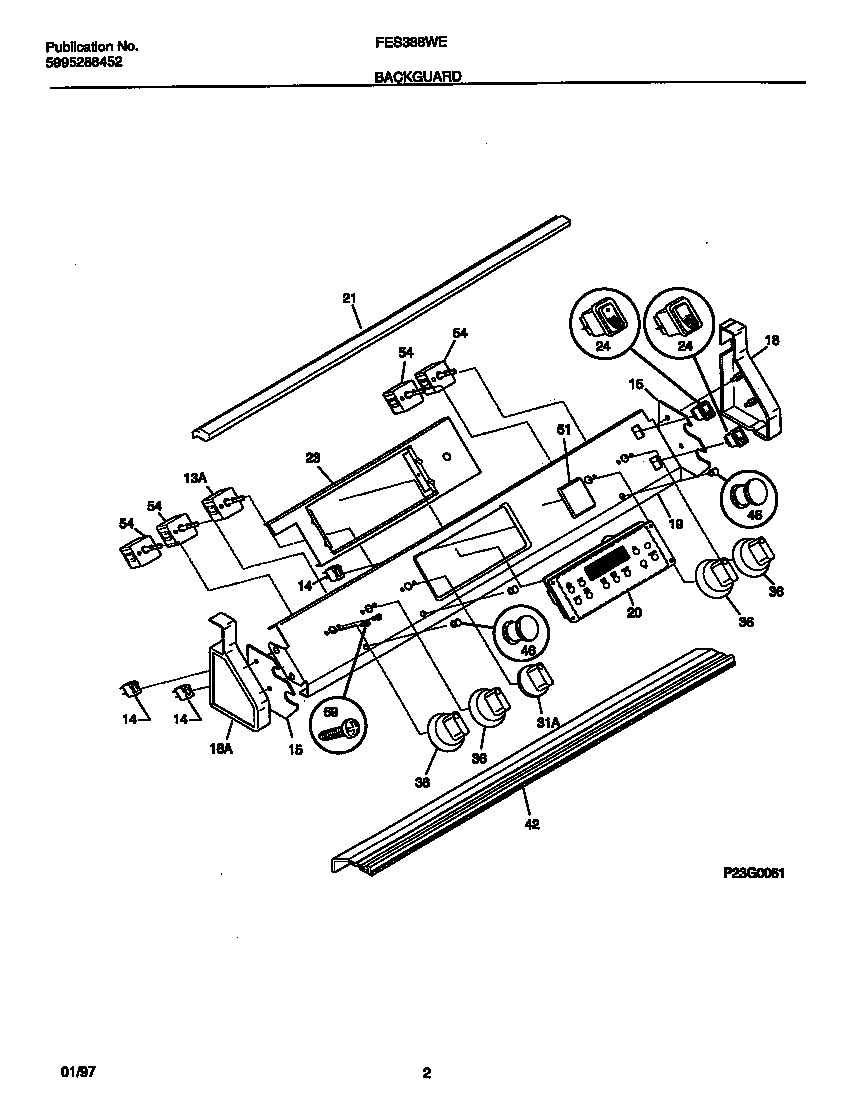

FES388WECA 02 – BACKGUARD

FES388WECA 02 – BACKGUARD

Written by

in

FES388WECA 02 – BACKGUARD

Products

PositionProduct
*82203PLATE, BACKUP, LIGHT SWITCH
*82200SCREW,TRUSS HEAD,8-18 X 0.375
*822025303211311 Frigidaire Refrigerator Screw
*82205WCI 5303311528
*82201WCI 318086021
*822045304453707 Frigidaire Oven Screw
135304508926 Frigidaire Oven Temperature Control Switch
14LIGHT-LAMP/INDICATOR
15WCI 5303311123
18WCI 5303300161
18WCI 5303300160
19WCI 318005545
20WCI 318012903
21WCI 318027800
235303300265 Frigidaire Oven Screw
23WCI 318015502
24SWITCH-ROCKER, OVEN LIGHT, BLACK, RH
24316083100 Frigidaire Oven Range Rocker Switch
31WCI 318017600
36Knob,control
42WCI 318106900
46LENS-LIGHT
51NAMEPLATE
545303935086 Frigidaire Oven Top Burner Switch Kit
695303323137 Frigidaire Oven Screw
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
