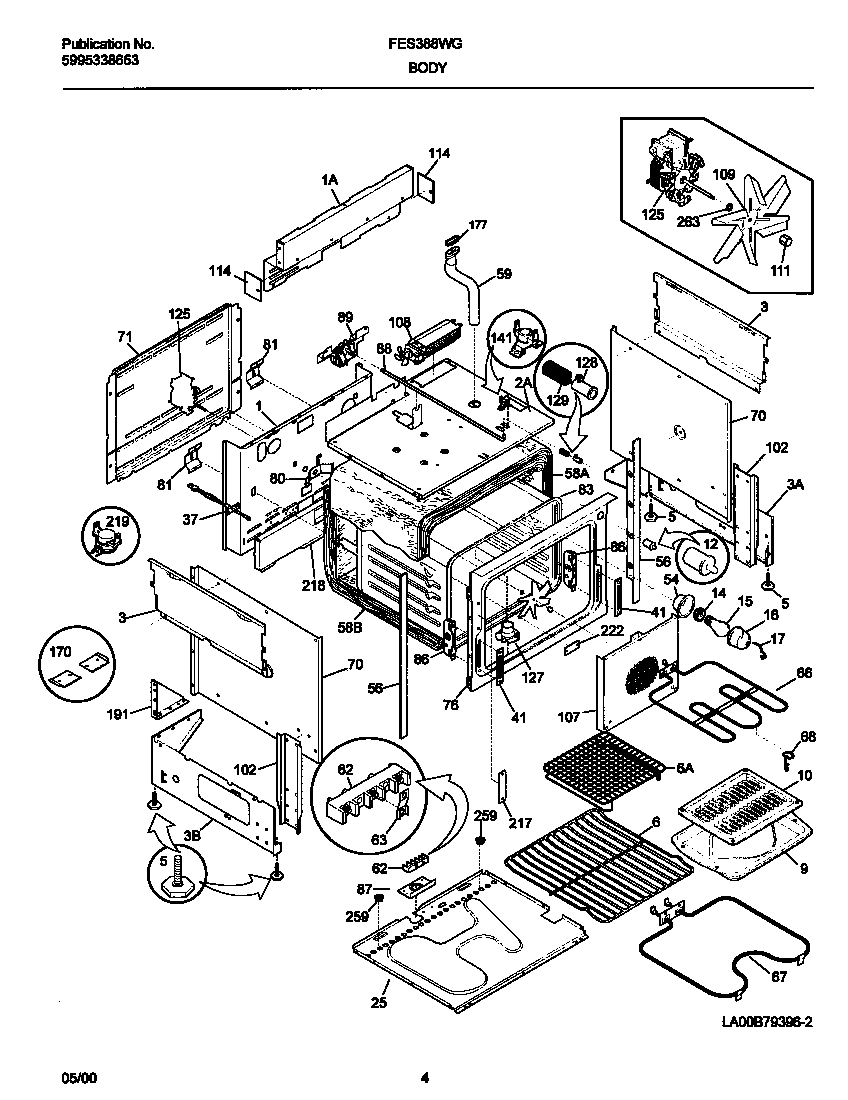

FES388WGCJ 03 – BODY

FES388WGCJ 03 – BODY

Written by

in

FES388WGCJ 03 – BODY

Products

PositionProduct
*067735303300265 Frigidaire Oven Screw
*067663201861 Frigidaire Screw
*06777WCI 5303311207
*067785304480396 Frigidaire Screw
*067675300809968 Frigidaire Dishwasher P-1 Washer
*06783WCI 318120710
*067815303323139 Frigidaire Oven Screw
*06776SCREW
*0676908002868 Frigidaire 0 Screw Assembly
*06771316205500 Frigidaire Oven Nut
*067805303323129 Frigidaire Oven Screw
*06779WCI 5303311528
*067745303307980 Frigidaire Oven Screw
*067725303211311 Frigidaire Refrigerator Screw
*06768CLIP, PLATE CONNECTOR (NOT ILLUSTRATED)
*06770SCREW,TRUSS HEAD,8-18 X 0.375
1WCI 318066402
1WCI 318070901
2WCI 318108600
3WCI 5303300143
3PANEL-LOWER SIDE LH
3PANEL-LOWER SIDE RH
5318175503 Frigidaire Screw with Bolt
6318345205 Frigidaire Oven Rack
6Shelf,broiler pan
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
25WCI 318179108
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56TRIM-OVEN FRONT,BLACK
58WCI 318132609
58INSULATION WRAPPER
59WCI 318072502
625304409888 Frigidaire Oven Terminal Block with Hardware
63WCI 5303310517
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 5303310515
76WCI 318124100
80WCI 5303320846
81WCI 5303301261
83Liner,oven
86WCI 5303310524
87WCI 318111803
88WCI 5303311160
89318095956 Frigidaire Oven Motor
102WCI 5303311142
107WCI 318119600
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
114WCI 318175100
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
141SWITCH, THERMAL CUTOUT
142WCI 318123901
170WCI 5304405244
177WCI 318053800
191WCI 5303304030
217WCI 316042300
219318003400 Frigidaire Thermostat
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263316008401 Frigidaire Washer P-1
