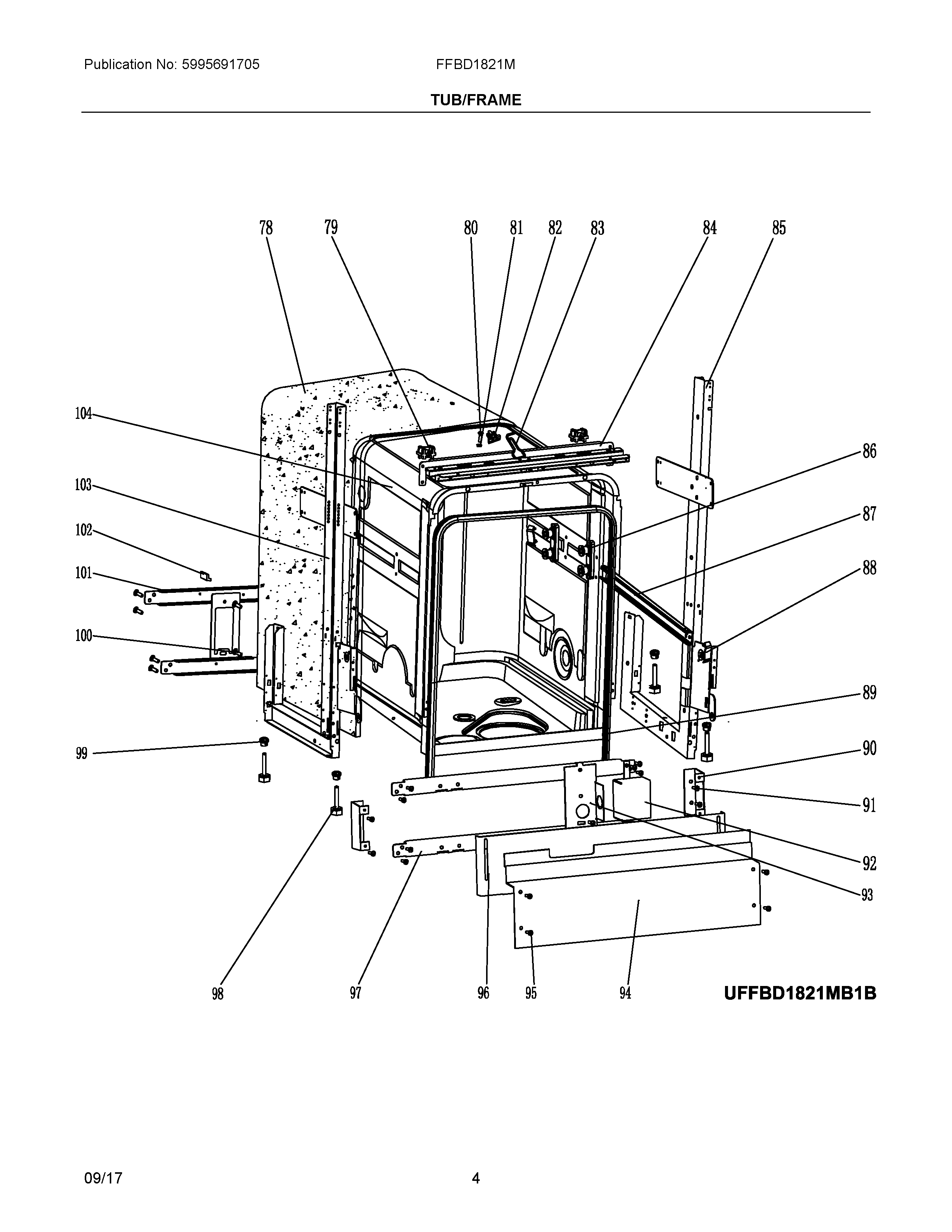

FFBD1821MB1B 03 – TUB/FRAME

Products

PositionProduct
78WCI 5304512892
79BLOCK, TOP, BLACK, (2)
80SCREW, REC CNTRSUNK HD, M4 X 16
815304482375 Frigidaire Dishwasher Locknut
82WCI 5304512893
835304483485 Frigidaire Dishwasher Hook
84BRACE ASSEMBLY, UPPER, BLACK, FRONT
85UPRIGHT ASSEMBLY, RH
865304512894 Frigidaire Dishwasher Roller Assembly
87RAIL, GUIDE, UPPER RACK, (2)
88CAP, GUIDE RAIL, (4)
895304512895 Frigidaire Dishwasher Gasket Assembly
90SUPPORT, TOEPLATE, (2)
91SCREW, REC TAPPING, ST 3.5 X 11, (2)
92COVER, JUNCTION BOX
93BOX, JUNCTION
94TOE PLATE, BLACK
95SCREW, ST3.9 X 13
96KICK PLATE, ADJUSTABLE, BLACK
97BRACE, FRONT, LOWER, (3)
98FOOT, LEVELING, (4)
99HOLDER, LEVELING FOOT, (4)
100BRACKET, MOTOR SUPPORT
101BRACE, BACK, LOWER
102BLOCK, BRACING, (2)
103UPRIGHT ASSEMBLY, LH
104TUB ASSEMBLY
