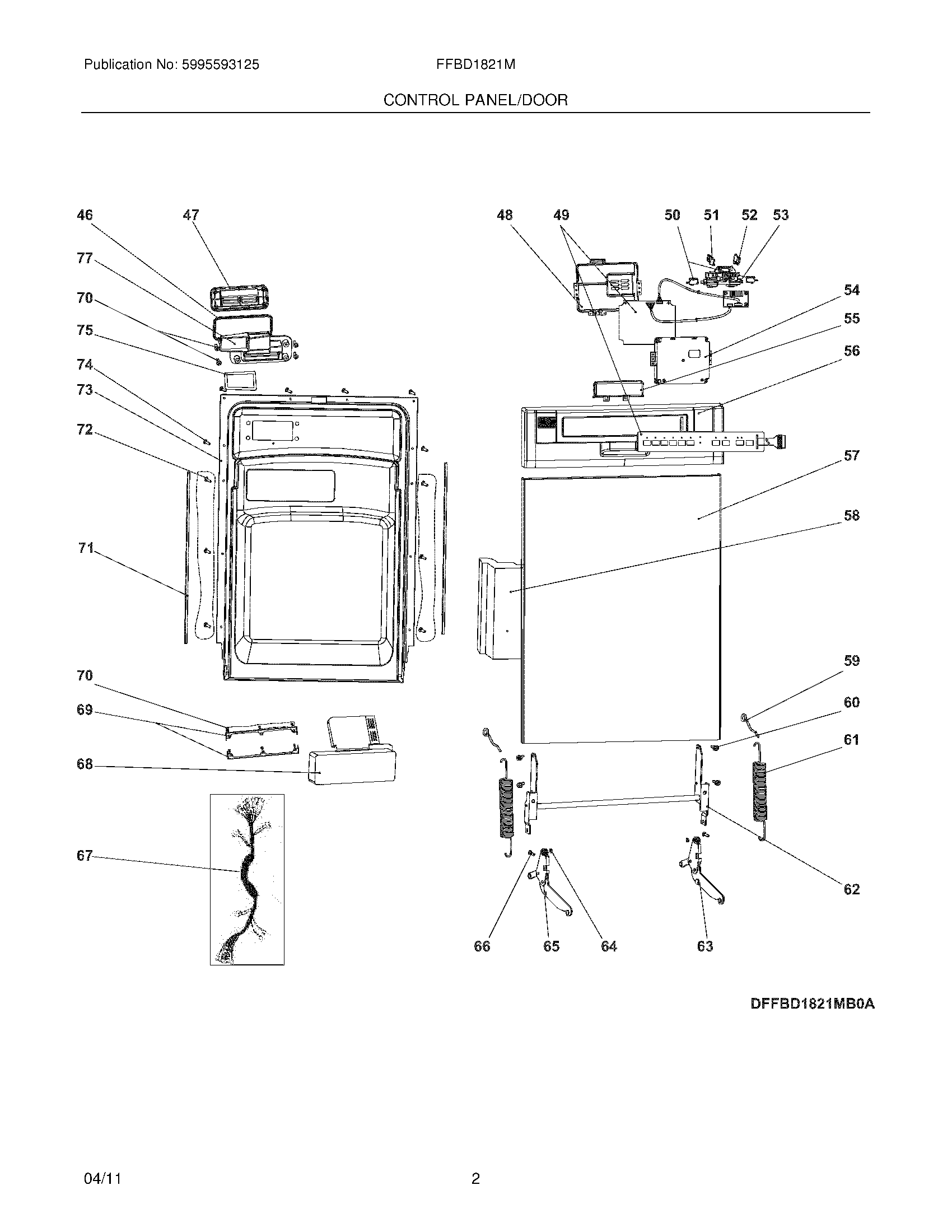

FFBD1821MS0A 03 – CONTROL PANEL/DOOR

Products

Position	Product
NI	WCI 5304484057
46	GASKET, VENT, TO DOOR LINER
47	COVER, DOOR VENT
48	COVER, CONTROL BOARD
49	WCI 5304483461
49	5304483462 Frigidaire Dishwasher Touch Pad
49	WCI 5304483459
50	5304483463 Frigidaire Dishwasher Switch
51	WCI 5304483464
52	WCI 5304483465
53	5304535183 Frigidaire Door Latch
54	WCI 5304483466
55	COVER, HANDLE, BLACK
56	WCI 5304483469
57	WCI 5304483473
58	FOAM ASSEMBLY, DOOR, INNER
59	BOLT, DOOR SPRING, (2)
60	SCREW, REC, M5 X 6, (5)
61	WCI 5304483475
62	HINGE ASSEMBLY, DOOR
63	WCI 5304482484
64	RING, CLAMPING, (2)
65	WCI 5304482483
66	PIN, HINGE JOINT, (2)
67	WCI 5304483477
68	5304509278 Frigidaire Dishwasher Dispenser
69	BRACKET, DISPENSER MTG., (2)
70	SCREW, DISPENSER MTG., (6)
71	WCI 5304482448
72	SCREW, REC TAP, ST3.5 X 13, (6)
73	LINER ASSEMBLY, DOOR, INNER
74	SCREW, REC TAP, ST3.5 X 18, (6)
75	GASKET, VENT
77	VENT ASSEMBLY, DOOR
79	BLOCK, TOP, BLACK, (2)
