FFBD1821MS0A 05 – TUB/FRAME

FFBD1821MS0A 05 – TUB/FRAME

Written by

in

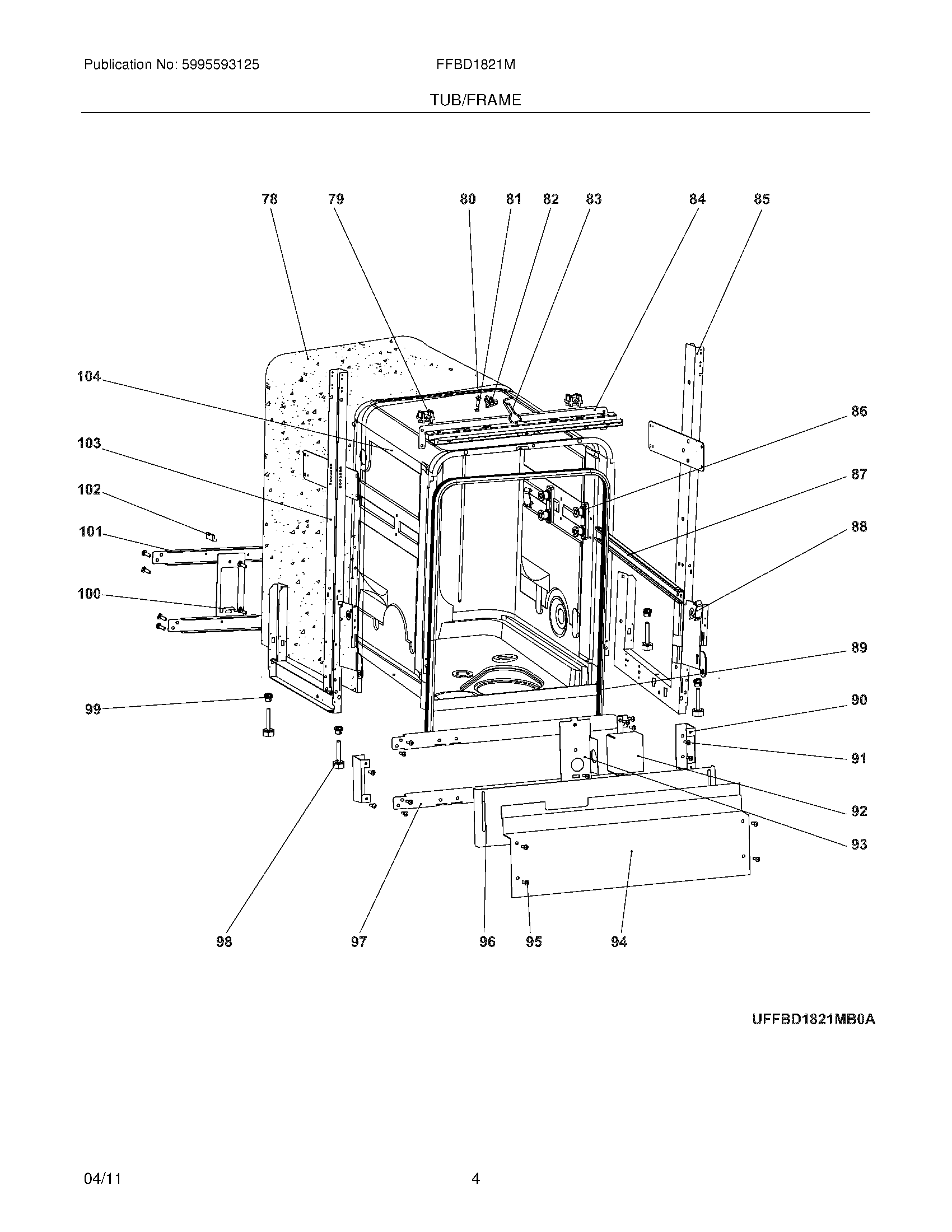

FFBD1821MS0A 05 – TUB/FRAME

Products

PositionProduct
78WCI 5304483482
79BLOCK, TOP, BLACK, (2)
80SCREW, REC CNTRSUNK HD, M4 X 16
815304482375 Frigidaire Dishwasher Locknut
82WCI 5304483484
835304483485 Frigidaire Dishwasher Hook
84BRACE ASSEMBLY, UPPER, BLACK, FRONT
85UPRIGHT ASSEMBLY, RH
86WCI 5304483488
87RAIL, GUIDE, UPPER RACK, (2)
88WCI 5304483490
895304512895 Frigidaire Dishwasher Gasket Assembly
90SUPPORT, TOEPLATE, (2)
91SCREW, ST3.5 X 9, (4)
92COVER, JUNCTION BOX
93BOX, JUNCTION
94TOE PLATE, BLACK
95SCREW, ST3.9 X 13
96KICK PLATE, ADJUSTABLE, BLACK
97BRACE, FRONT, LOWER, (3)
98WCI 5304482408
99HOLDER, LEVELING FOOT, (4)
100BRACKET, MOTOR SUPPORT
101BRACE, BACK, LOWER
102BLOCK, BRACING, (2)
103UPRIGHT ASSEMBLY, LH
104TUB ASSEMBLY
