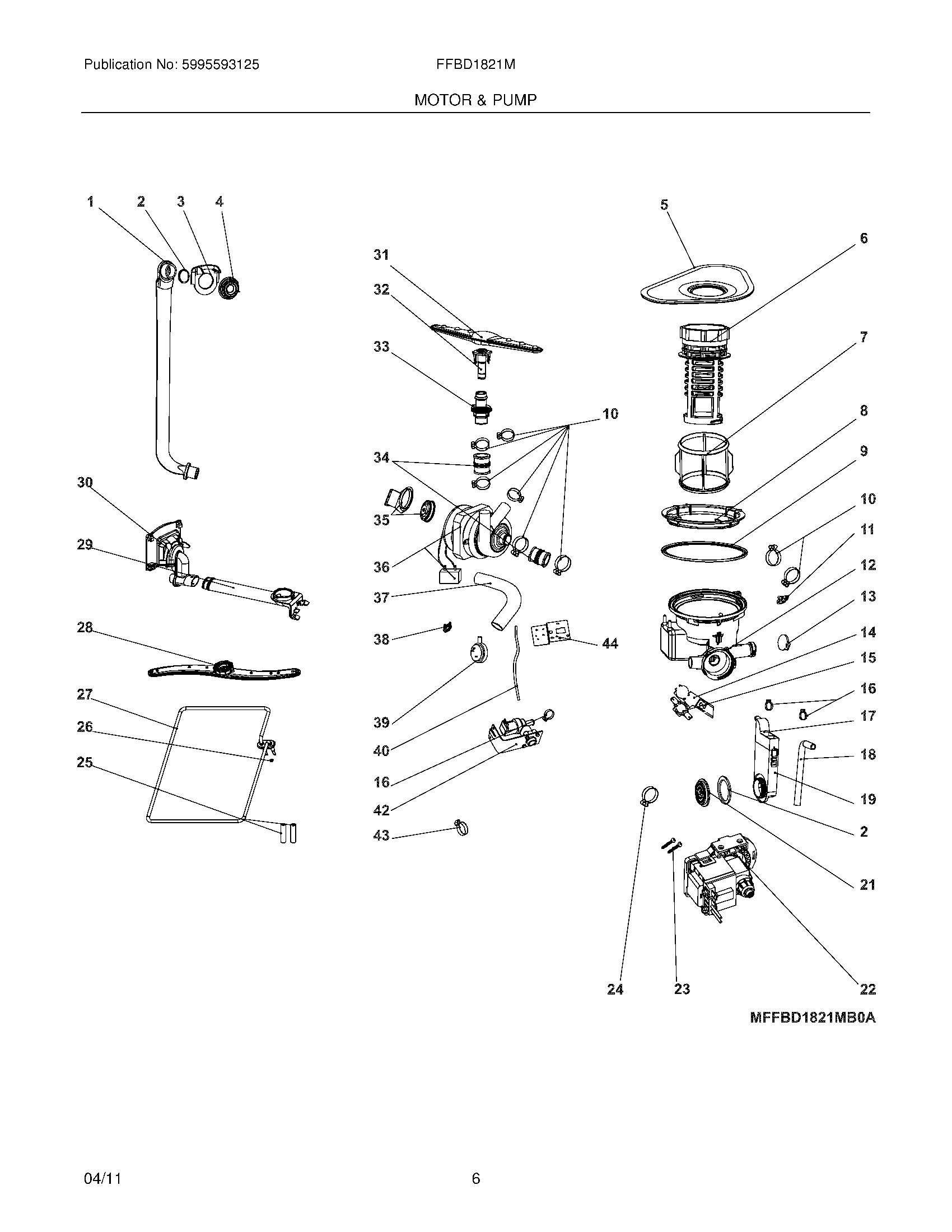

FFBD1821MS0A 07 – MOTOR & PUMP

Products

Position	Product
1	WCI 5304483437
2	GASKET, RING NUT
3	CASING, DELIVERY TUBE, INLET
4	NUT, DELIVERY TUBE, INLET
5	FILTER ASSEMBLY, SCREEN, STAINLESS
6	FILTER ASSEMBLY
7	FILTER ASSEMBLY, MICRO
8	NUT, SUMP MTG.
9	WCI 5304482467
10	5304482453 Frigidaire Dishwasher Clamp
11	5304483441 Frigidaire Dishwasher Thermistor
12	WCI 5304483442
13	5304482469 Frigidaire Dishwasher Flapper
14	BRACKET, THERMOSTAT
15	THERMOSTAT, 90
16	CLAMP, OTK175
17	COVER, WATER TUNNEL
18	5304482389 Frigidaire Dishwasher Hose
19	TUNNEL, WATER
21	RING NUT
22	5304483444 Frigidaire Dishwasher Pump
23	WCI 5304482501
24	CLAMP, HOSE, OTK286, (2)
25	CASING, HAETING ELEMENT, (2)
26	NUT, HEATING ELEMENT
27	ELEMENT ASSEMBLY, HEATING
28	SPRAY ARM, ASSEMBLY, UPPER
29	CONDUIT, SPRAY ARM, UPPER
30	DELIVERY ASSEMBLY, SPRAY ARM, MIDDLE
31	WCI 5304483450
32	WCI 5304483451
33	CONNECTOR ASSEMBLY, SPRAY ARM, LOWER
34	DUCT, CONNECTING, (2)
35	SUPPORT ASSEMBLY, MOTOR, W/PAD
36	WCI 5304483454
37	DUCT, CONNECTING, EXTERNAL PIPE
38	CLAMP, HOSE, 12.9 X 1.8
39	SWITCH-PRESSURE, #32
40	HOSE, PRESSURE SWITCH
42	5304482406 Frigidaire Dishwasher Valve
43	5304483456 Frigidaire Dishwasher Drain Hose
44	SUPPORT, PRESSURE SWITCH
