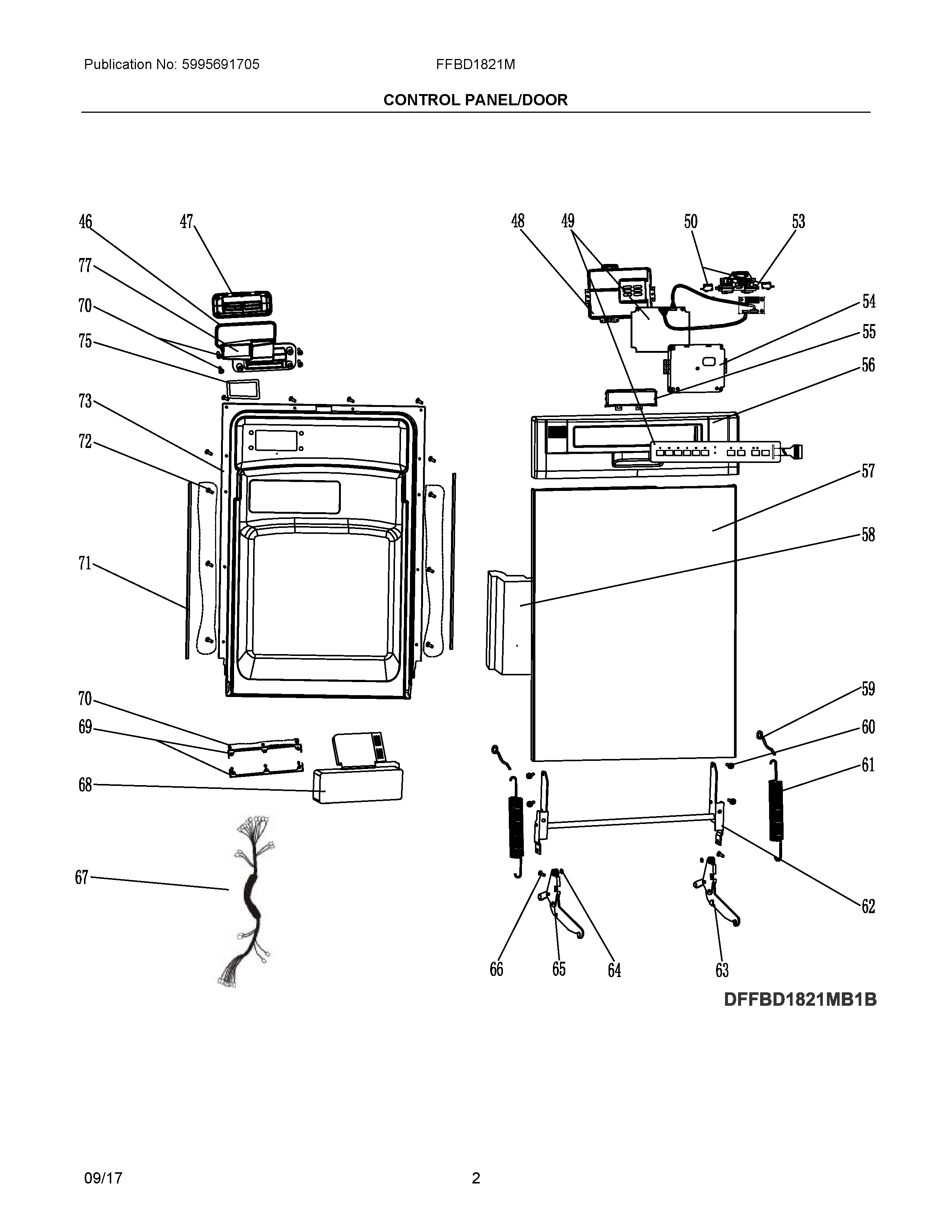

FFBD1821MS1B 02 – CONTROL PANEL/DOORadmin2025-04-26T10:35:41+00:00FFBD1821MS1B 02 – CONTROL PANEL/DOOR
Products
| Position | Product |
|---|
| 46 | GASKET, VENT, TO DOOR LINER |
| 47 | COVER, DOOR VENT |
| 48 | COVER, CONTROL BOARD |
| 49 | WCI 5304512885 |
| 50 | 5304483463 Frigidaire Dishwasher Switch |
| 53 | WCI 5304512886 |
| 54 | 5304512887 Frigidaire Dishwasher Box |
| 55 | COVER, HANDLE, BLACK |
| 56 | 5304512888 Frigidaire Dishwasher Console |
| 57 | WCI 5304513717 |
| 58 | FOAM ASSEMBLY, DOOR, INNER |
| 59 | BOLT, DOOR SPRING, (2) |
| 60 | SCREW, REC, M5 X 6, (5) |
| 61 | WCI 5304513718 |
| 62 | HINGE ASSEMBLY, DOOR |
| 63 | WCI 5304512889 |
| 64 | RING, CLAMPING, (2) |
| 65 | WCI 5304512890 |
| 66 | PIN, HINGE JOINT, (2) |
| 67 | WCI 5304512891 |
| 68 | 5304509267 Frigidaire Dishwasher Dispenser |
| 69 | BRACKET, DISPENSER MTG., (2) |
| 70 | SCREW, DISPENSER MTG., (6) |
| 71 | WCI 5304482448 |
| 72 | SCREW, REC TAP, ST3.5 X 13, (6) |
| 73 | LINER ASSEMBLY, DOOR, INNER |
| 75 | GASKET, VENT |
| 77 | VENT ASSEMBLY, DOOR |
