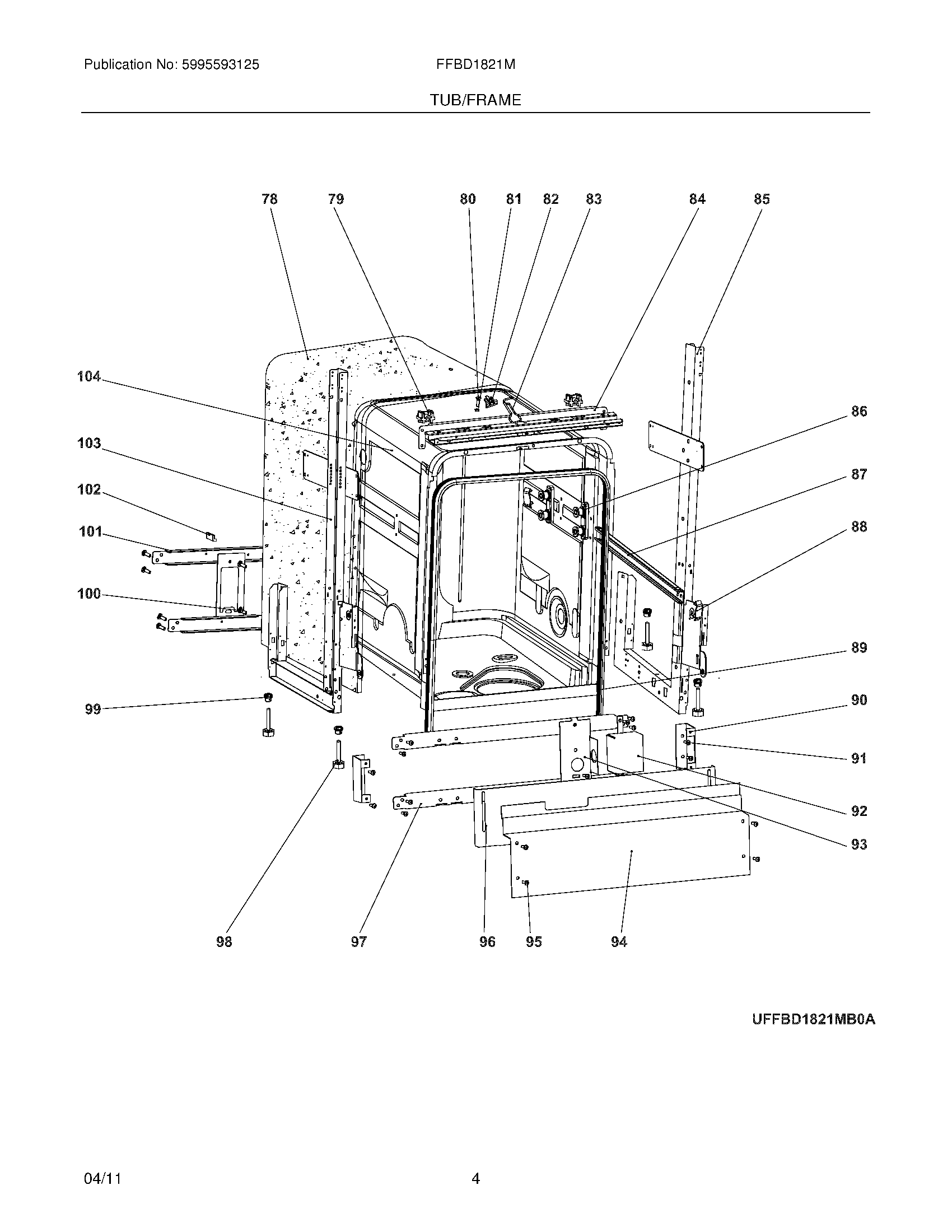

FFBD1821MW0A 05 – TUB/FRAME

Products

Position	Product
78	WCI 5304483482
79	WCI 5304483483
80	SCREW, REC CNTRSUNK HD, M4 X 16
81	5304482375 Frigidaire Dishwasher Locknut
82	WCI 5304483484
83	5304483485 Frigidaire Dishwasher Hook
84	WCI 5304483486
85	UPRIGHT ASSEMBLY, RH
86	WCI 5304483488
87	RAIL, GUIDE, UPPER RACK, (2)
88	WCI 5304483490
89	5304512895 Frigidaire Dishwasher Gasket Assembly
90	SUPPORT, TOEPLATE, (2)
91	SCREW, ST3.5 X 9, (4)
92	COVER, JUNCTION BOX
93	BOX, JUNCTION
94	WCI 5304483496
95	SCREW, ST3.9 X 13
96	WCI 5304483499
97	BRACE, FRONT, LOWER, (3)
98	WCI 5304482408
99	HOLDER, LEVELING FOOT, (4)
100	BRACKET, MOTOR SUPPORT
101	BRACE, BACK, LOWER
102	BLOCK, BRACING, (2)
103	UPRIGHT ASSEMBLY, LH
104	TUB ASSEMBLY
