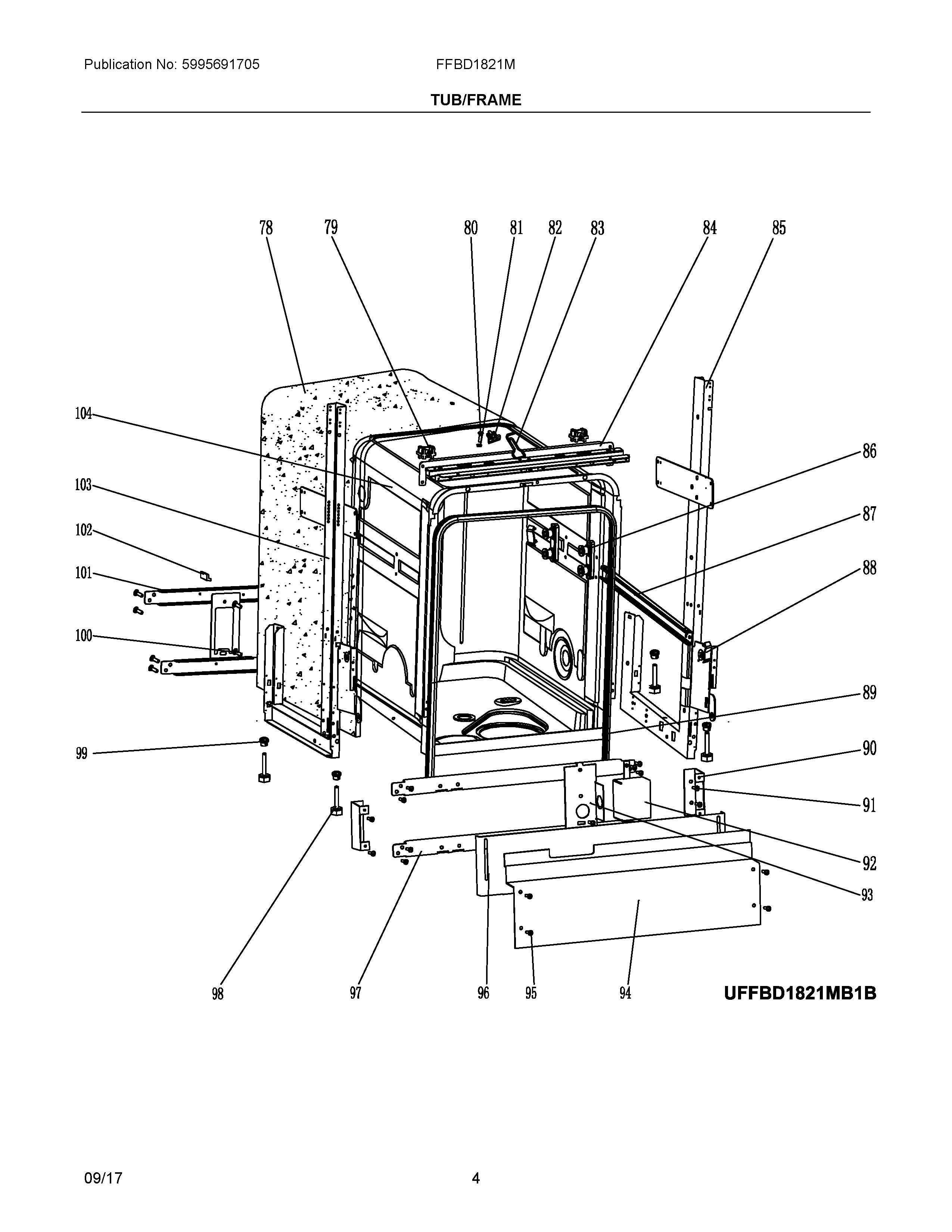

FFBD1821MW1B 03 – TUB/FRAME

Products

PositionProduct
78WCI 5304512892
79WCI 5304513721
80SCREW, REC CNTRSUNK HD, M4 X 16
815304482375 Frigidaire Dishwasher Locknut
82WCI 5304512893
835304483485 Frigidaire Dishwasher Hook
84WCI 5304513722
85UPRIGHT ASSEMBLY, RH
865304512894 Frigidaire Dishwasher Roller Assembly
87RAIL, GUIDE, UPPER RACK, (2)
88CAP, GUIDE RAIL, (4)
895304512895 Frigidaire Dishwasher Gasket Assembly
90SUPPORT, TOEPLATE, (2)
91SCREW, REC TAPPING, ST 3.5 X 11, (2)
92COVER, JUNCTION BOX
93BOX, JUNCTION
94WCI 5304483496
95WCI 5304513723
96WCI 5304483499
97BRACE, FRONT, LOWER, (3)
98FOOT, LEVELING, (4)
99HOLDER, LEVELING FOOT, (4)
100BRACKET, MOTOR SUPPORT
101BRACE, BACK, LOWER
102BLOCK, BRACING, (2)
103UPRIGHT ASSEMBLY, LH
104TUB ASSEMBLY
