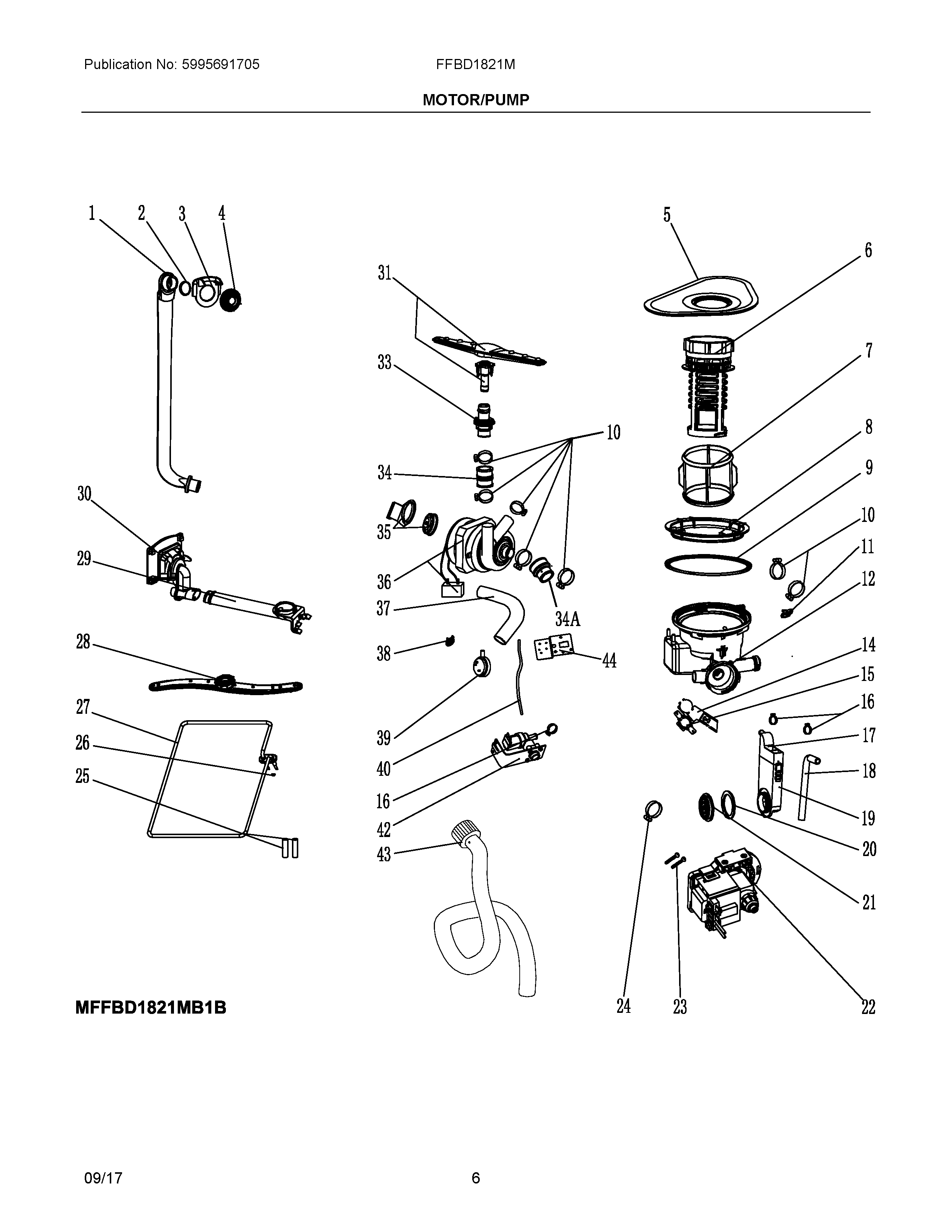

FFBD1821MW1B 04 – MOTOR/PUMP

Products

Position	Product
1	5304512881 Frigidaire Dishwasher Delivery Hose
2	O RING, DELIVERY TUBE, (2)
3	CASING, GUIDE, DELIVERY TUBE
4	NUT, PIPE, DELIVERY TUBE
5	FILTER ASSEMBLY, SCREEN, STAINLESS
6	FILTER ASSEMBLY
7	FILTER ASSEMBLY, MICRO
8	NUT, SUMP MTG.
9	5304512882 Frigidaire Dishwasher Gasket
10	5304482453 Frigidaire Dishwasher Clamp
11	5304483441 Frigidaire Dishwasher Thermistor
12	5304512883 Frigidaire Dishwasher Sump Assembly
14	BRACKET, THERMOSTAT
15	THERMOSTAT, 90
16	5304460970 Frigidaire Dishwasher Clamp
17	COVER, WATER TUNNEL
18	HOSE, INLET, TUNNEL
19	TUNNEL, WATER
20	GASKET, RING NUT
21	RING NUT
22	5304483444 Frigidaire Dishwasher Pump
23	WCI 5304482501
24	CLAMP, HOSE, OTK286, (2)
25	CASING, HAETING ELEMENT, (2)
26	NUT, HEATING ELEMENT
27	ELEMENT ASSEMBLY, HEATING
28	SPRAY ARM, ASSEMBLY, UPPER
29	CONDUIT, SPRAY ARM, UPPER
30	DELIVERY ASSEMBLY, SPRAY ARM, MIDDLE
31	5304512884 Frigidaire Dishwasher Arm Spray
33	CONNECTOR ASSEMBLY, SPRAY ARM, LOWER
34A	DUCT, CONNECTING, (2)
34	5304512129 Frigidaire Dishwasher Duct
35	SUPPORT ASSEMBLY, MOTOR, W/PAD
36	5304512880 Frigidaire Dishwasher Pump Assembly
37	DUCT, CONNECTING, EXTERNAL PIPE
38	5304482390 Frigidaire Dishwasher Clamp
39	SWITCH-PRESSURE, #32
40	HOSE, PRESSURE SWITCH
42	5304482406 Frigidaire Dishwasher Valve
43	5304483456 Frigidaire Dishwasher Drain Hose
44	SUPPORT, PRESSURE SWITCH
