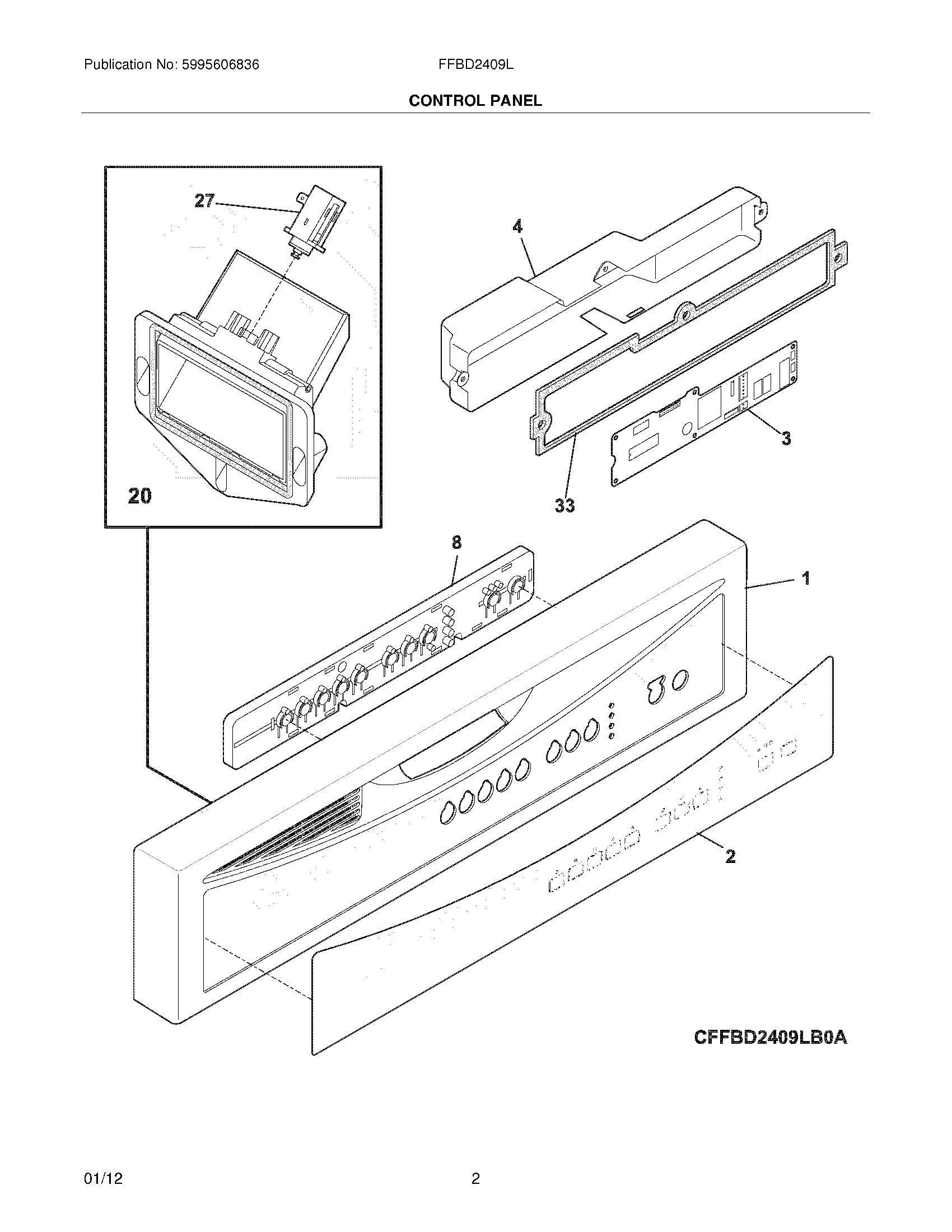

FFBD2409LB0B 03 – CONTROL PANEL

Products

Position	Product
NI	154294701 Frigidaire Dishwasher Screw
NI	WCI 154851601
NI	WCI 154849248
NI	154753101 Frigidaire Dishwasher Thermistor
NI	WCI 154793401
NI	808326801 Frigidaire Dishwasher Screw
1	5304506543 Frigidaire Dishwasher Panel
2	OVERLAY, CONSOLE PANEL, BLACK
3	5304512731 Frigidaire Dishwasher Control Board
4	WCI 154552101
8	154852501 Frigidaire Dishwasher Switch Assembly
20	VENT ASSY, ACTIVE DRY, W/ACTUATOR
27	ACTUATOR, ACTIVE DRY VENT
33	154553501 Frigidaire Dishwasher Gasket
