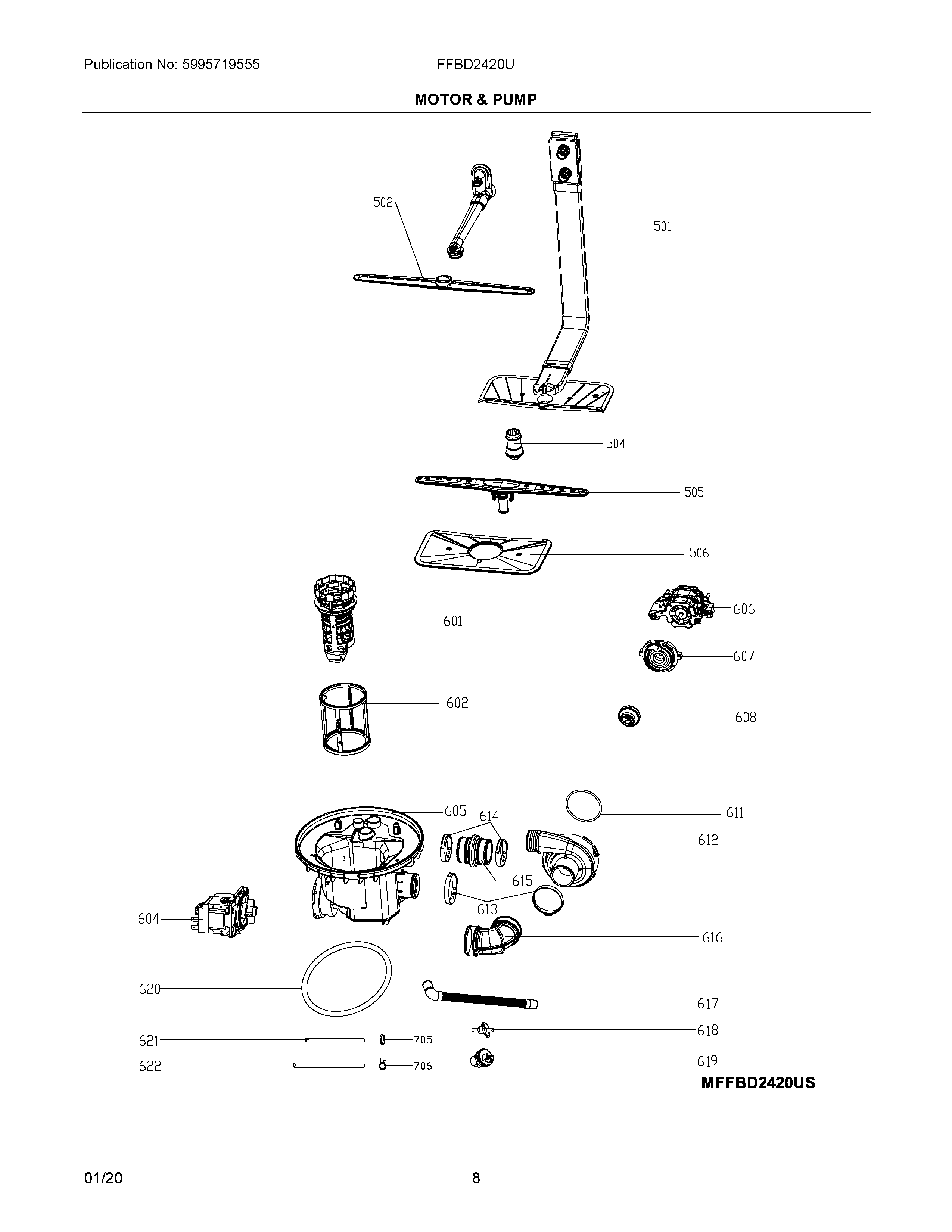

FFBD2420UW 05 – MOTOR & PUMP

Products

Position	Product
501	5304519264 Frigidaire Dishwasher Tube Assembly
502	5304519300 Frigidaire Dishwasher Spray Arm
504	SUPPORT, SPRAY ARM, LOWER
505	5304519301 Frigidaire Dishwasher Spray Arm
506	FILTER ASSEMBLY, FLAT, TUB
601	5304519269 Frigidaire Sump Filter Handle
602	5304519270 Frigidaire Dishwasher Assembly-Filter
604	5304519271 Frigidaire Dishwasher Pump Assembly
605	5304519272 Frigidaire Dishwasher Sump
606	5304519303 Frigidaire Dishwasher Pump Assembly
607	5304529119 Frigidaire Dishwasher Pump Cover Assembly
608	5304519275 Frigidaire Impeller Dishwasher
611	5304519276 Frigidaire Dishwasher O-Ring Assembly
612	5304519277 Frigidaire Dishwasher Casing
613	5304523305 Frigidaire Dishwasher Clamp
614	5304523306 Frigidaire Dishwasher Clamp
615	5304519280 Frigidaire Dishwasher Tube
616	5304519281 Frigidaire Dishwasher Tube
617	5304519304 Frigidaire Dishwasher Hose Assembly
618	5304483441 Frigidaire Dishwasher Thermistor
619	5304519282 Frigidaire Dishwasher Thermostat
620	5304519283 Frigidaire Dishwasher Seal
621	5304519284 Frigidaire Tubing
622	5304519305 Frigidaire Tubing
705	5304523308 Frigidaire Dishwasher Clamp
706	5304482390 Frigidaire Dishwasher Clamp
