FFEC2111QBC 02 – CONTROL PANEL

FFEC2111QBC 02 – CONTROL PANEL

Written by

in

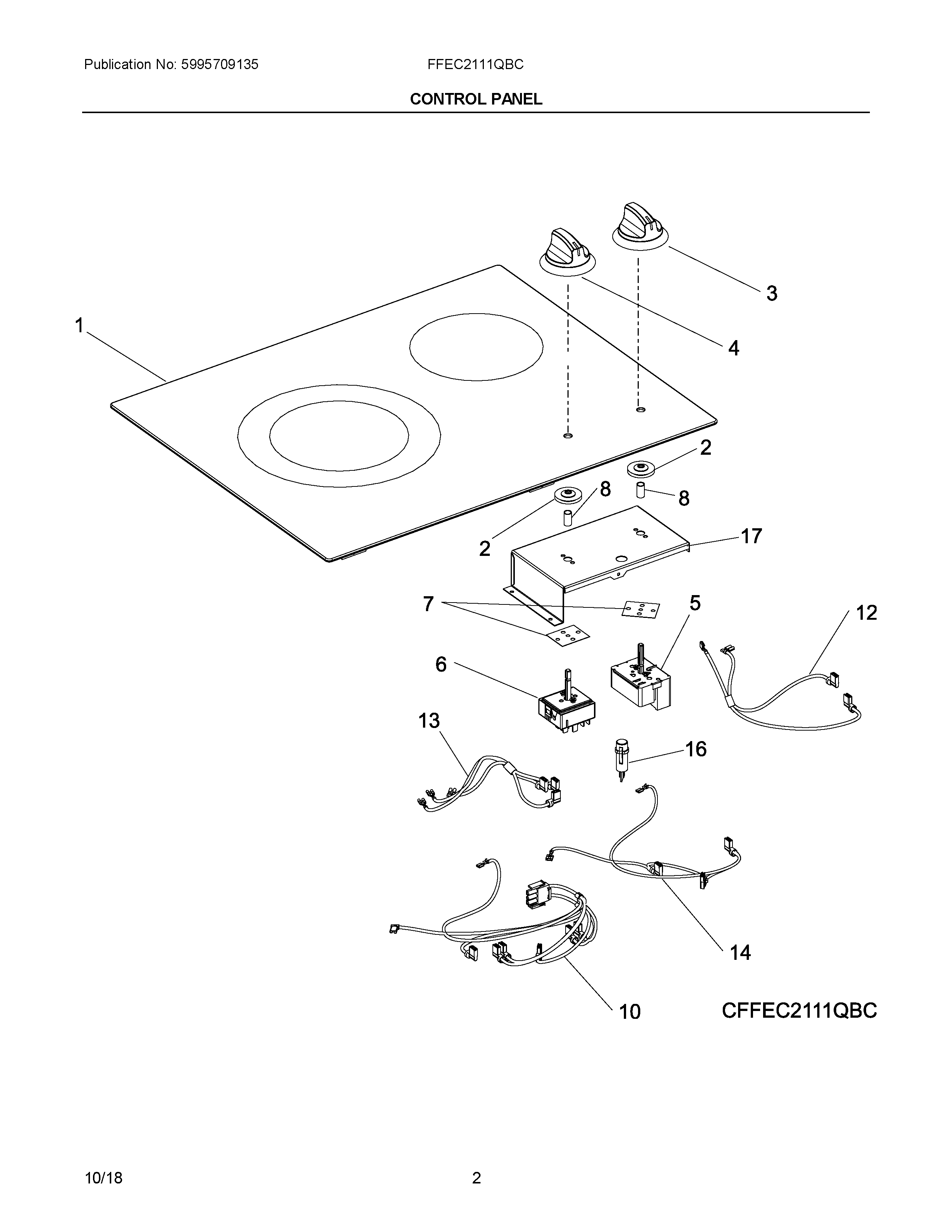

FFEC2111QBC 02 – CONTROL PANEL

Products

PositionProduct
15304499899 Frigidaire Main Top
2GROMMET, GLASS SEAL, (2 PACK)
3KNOB, CONTROL, SINGLE BURNER
4KNOB, CONTROL, DUAL BURNER
5318293824 Frigidaire Oven Switch
6318191000 Frigidaire Oven Switch
7SEAL, SWITCH, (2 PACK)
8SLEEVE, STEM
10HARNESS, WIRING, MAIN
12HARNESS, WIRING, SINGLE BURNER
13HARNESS, WIRING, DUAL BURNER
14HARNESS, WIRING, LIGHT
16LIGHT, INDICATOR
17BOX, CONTROL MTG.
