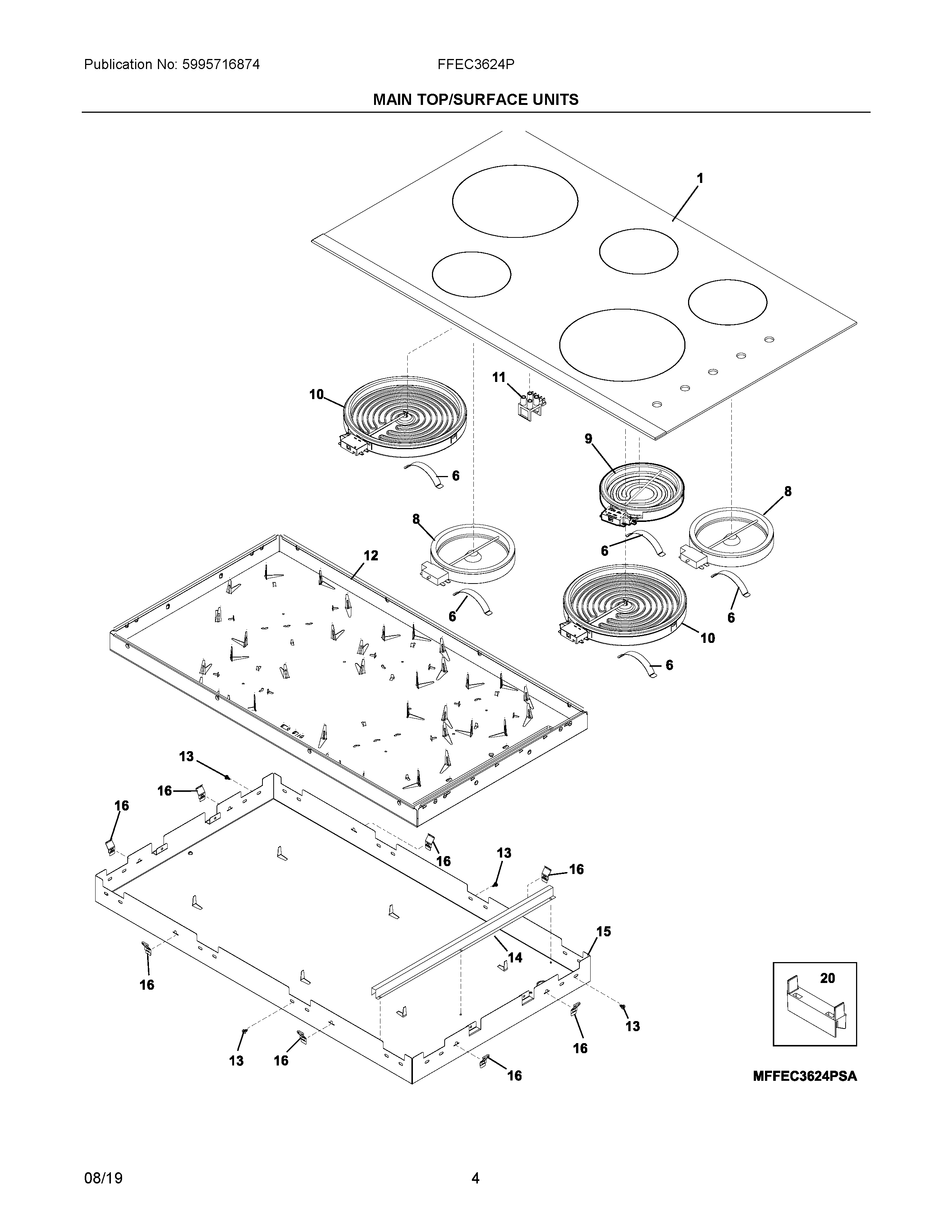

FFEC3624PBB 03 – MAIN TOP/SURFACE UNITS

Products

Position	Product
NI	5308014215 Frigidaire Oven Screw
NI	BOX & WIRES ASSY
NI	387627700 Frigidaire Oven Bracket
NI	SCREW, (4)
NIA	305351200 Frigidaire Rivet
NI	305309606 Frigidaire Oven Screw
NI	WCI 5304522472
NI	387683300 Frigidaire Bracket
NI	305452800 Frigidaire Screw
1	305638946 Frigidaire Maintop Assembly
6	387372900 Frigidaire SPRING
8	A02843501 Frigidaire Element
9	305440414 Frigidaire Oven Heating Element
10	305440417 Frigidaire Radiant Surface Element
11	387812005 Frigidaire Light Assembly
12	WCI 808431501
13	330447900 Frigidaire Oven Screw
14	387683500 Frigidaire Support
15	WCI 387811900
16	387174602 Frigidaire Oven Bracket
20	387627600 Frigidaire Spacer
