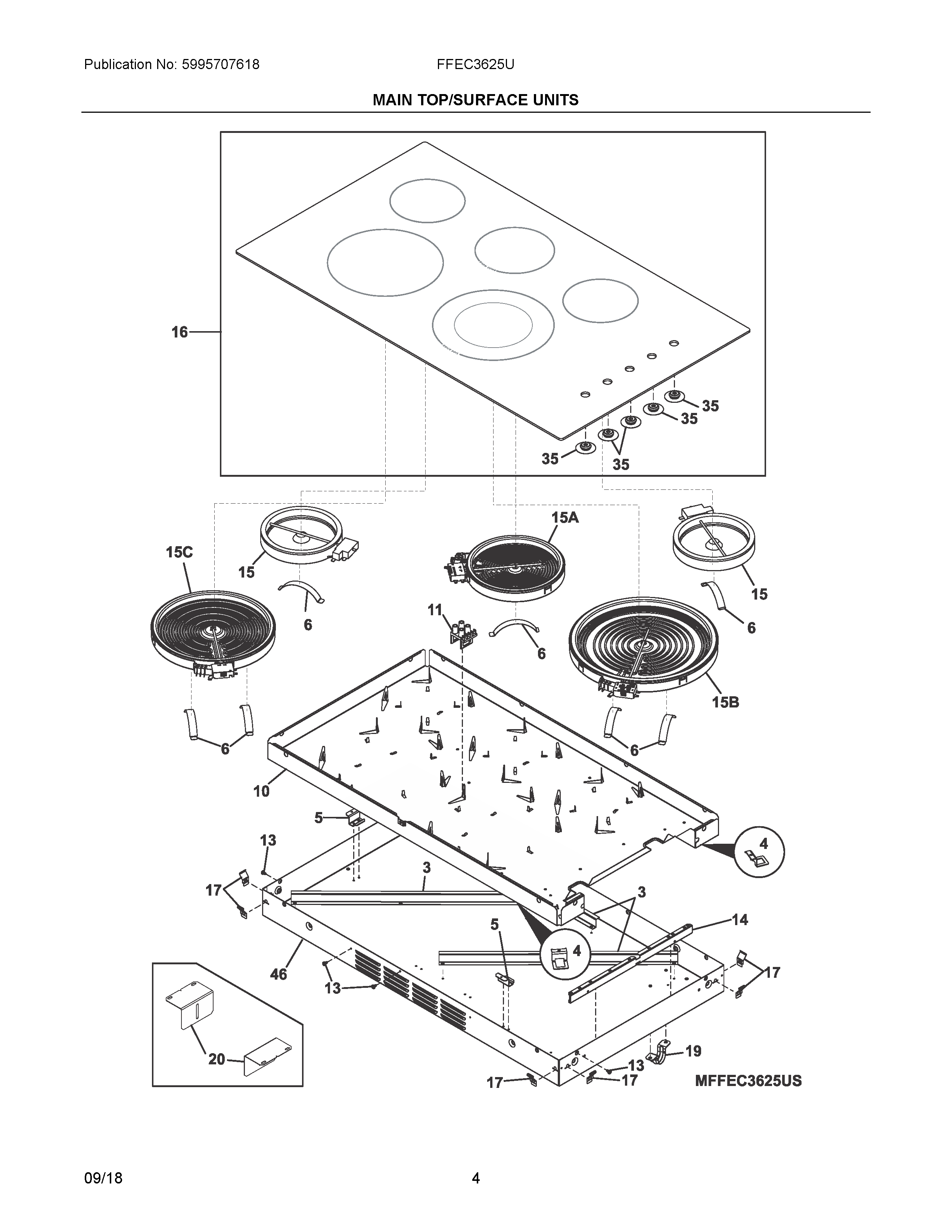

FFEC3625UB 03 – MAIN TOP/SURFACE UNITS

FFEC3625UB 03 – MAIN TOP/SURFACE UNITS

Written by

in

FFEC3625UB 03 – MAIN TOP/SURFACE UNITS

Products

PositionProduct
NI5308014215 Frigidaire Oven Screw
NI305351200 Frigidaire Rivet
NISCREW, (4)
NI305309606 Frigidaire Oven Screw
NI5304518930 Frigidaire Harness
NIBOX & WIRES ASSY
NI5305511218 Frigidaire Ceramabryte C12 18O
NI5304462994 Frigidaire Oven Screw
NI305452800 Frigidaire Screw
3387683500 Frigidaire Support
4387683300 Frigidaire Bracket
55304518258 Frigidaire Bracket
6387372900 Frigidaire SPRING
10BOX, ELEMENT CARRIER, INNER
11387812006 Frigidaire Light Assembly
13330447900 Frigidaire Oven Screw
14SUPPORT, BEAM
15A02843501 Frigidaire Element
15C305440417 Frigidaire Radiant Surface Element
15A305440414 Frigidaire Oven Heating Element
15B389087401 Frigidaire Oven Element
16305638985 Frigidaire Oven Maintop Assembly
17387174602 Frigidaire Oven Bracket
19318389600 Frigidaire Bracket Assembly
20BRACKET
355304515130 Frigidaire Refrigerator Bushing
46BOX, COOKTOP, OUTER
