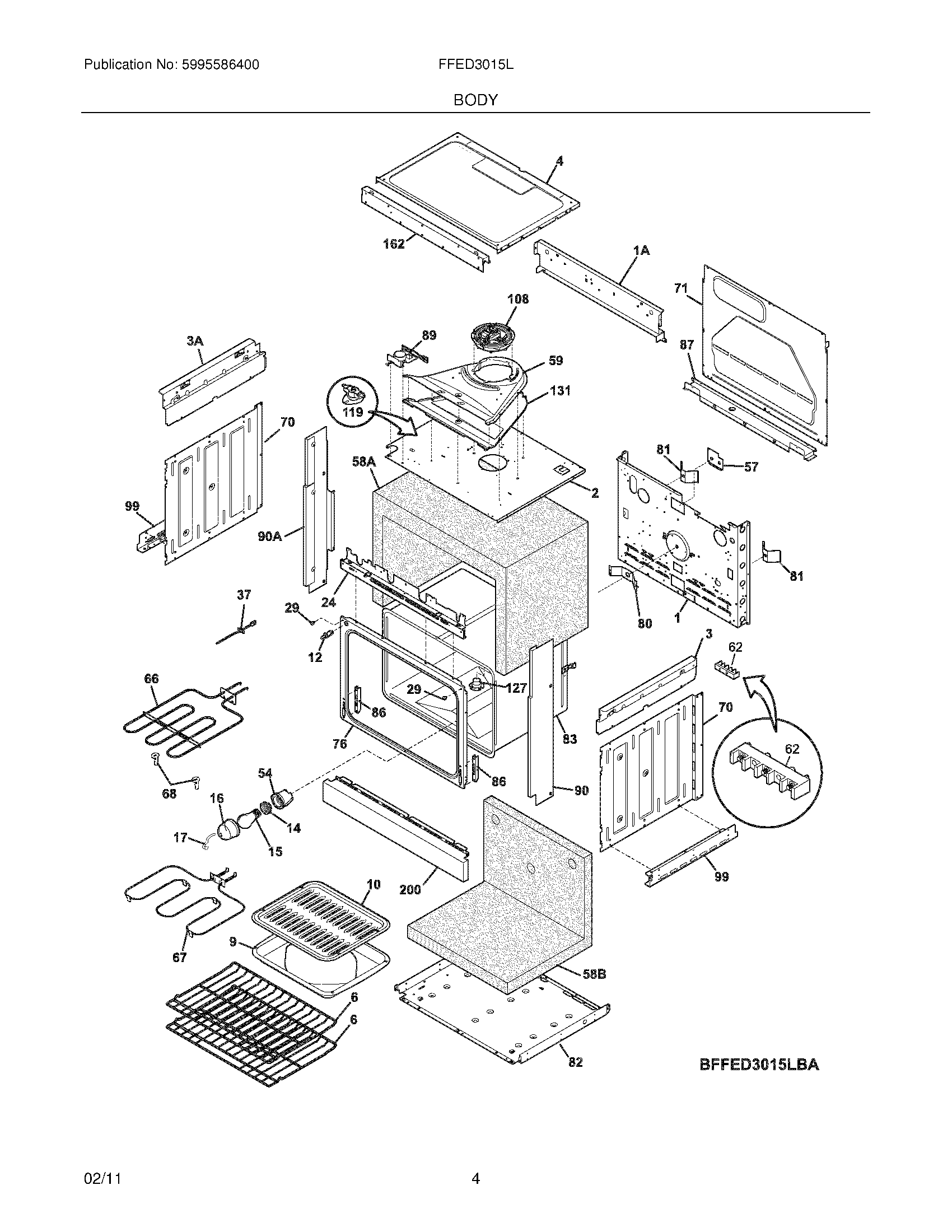

FFED3015LBB 05 – BODY

FFED3015LBB 05 – BODY

Written by

in

FFED3015LBB 05 – BODY

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NI5304464772 Frigidaire Refrigerator Wire Tie
NIWCI 5304400192
NI5303323129 Frigidaire Oven Screw
NIScrew,No.8-18 x 3/8 ,(10)
NIWCI 5304417153
NI5304461333 Frigidaire Oven Screw
NIWCI 318579001
NIWCI 5304440988
NIWCI 318384489
NI5303308456 Frigidaire Oven Screw
NIWCI 318368501
NISCREW-SHOULDER
NI5303211311 Frigidaire Refrigerator Screw
NI5304415832 Frigidaire Oven Screw
NI5304436875 Frigidaire Oven Screw
NI5304480396 Frigidaire Screw
NI316205500 Frigidaire Oven Nut
NI5303324184 Frigidaire Wall Oven Range Screw
NIScrew,7-19 x 1/2“ ,(11) ,housing ring
NI5303323139 Frigidaire Oven Screw
NIWCI 318394445
1WCI 318259220
1AWCI 318225110
2WCI 318570500
3AWCI 318225211
3WCI 318225210
4WCI 318073908
6WCI 318345207
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
24WCI 318913116
29316517600 Frigidaire Oven Spacer
37SENSOR
54WCI 318222400
57WCI 318402800
58AWCI 318386113
58BInsulation,oven wrapper ,back/bottom
59WCI 318570602
625304409888 Frigidaire Oven Terminal Block with Hardware
66WCI 318255801
67318254918 Frigidaire Oven Element
685304403015 Frigidaire Oven Support
70WCI 318259105
71WCI 318260007
76WCI 318056292
80WCI 5303320846
81WCI 318192400
82WCI 318258765
83WCI 318261456
86318561100 Frigidaire Receptacle
87WCI 318260622
89318261230 Frigidaire Oven Motor
90AWCI 318296925
90WCI 318296924
99318256201 Frigidaire Oven Bracket
108318575600 Frigidaire Oven Motor
119318578506 Frigidaire Oven High Limit Thermostat
127WCI 318317105
131WCI 318574805
162WCI 318225820
200WCI 318330003
