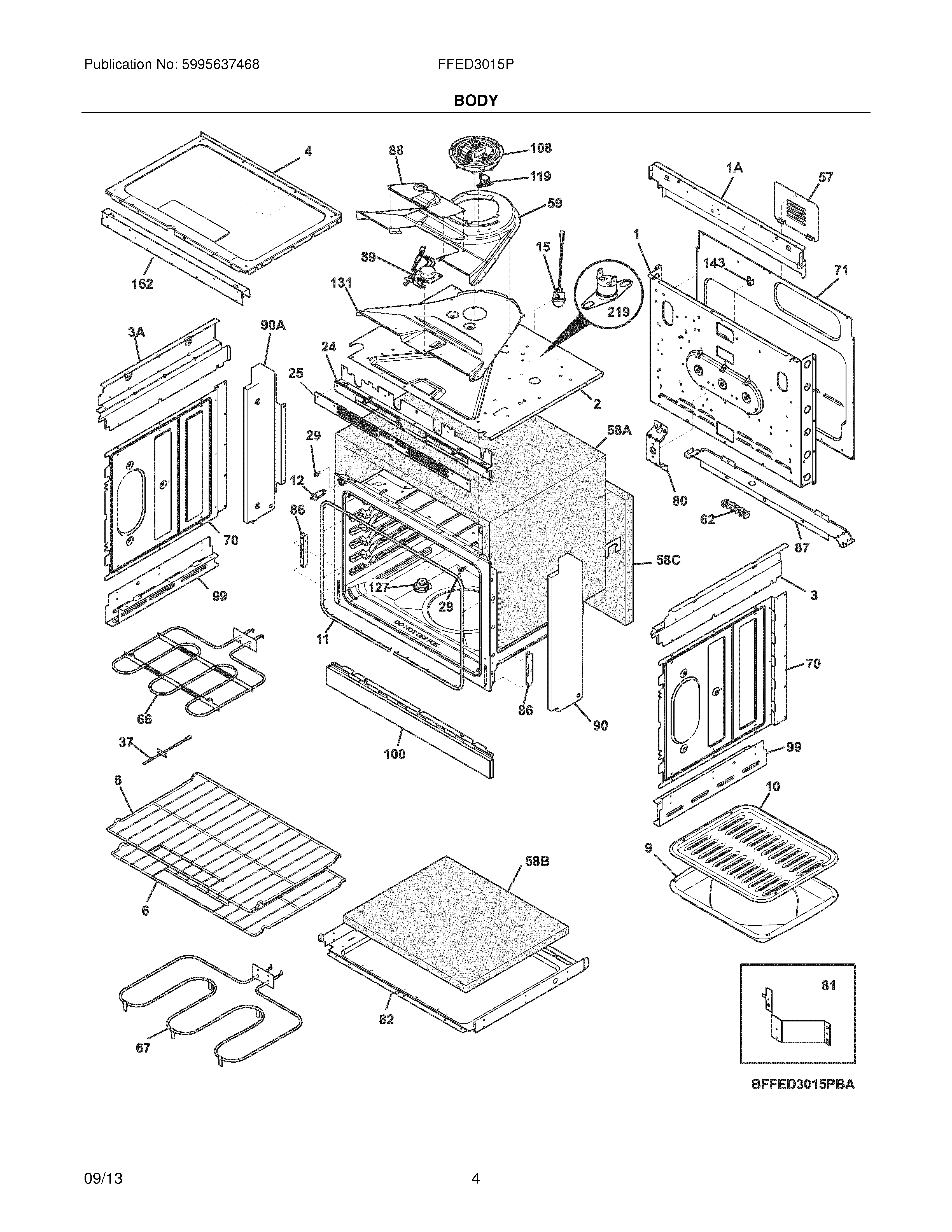

FFED3015PBA 05 – BODY

FFED3015PBA 05 – BODY

Written by

in

FFED3015PBA 05 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 808182602
NI316418900 Frigidaire Oven Screw
NIWCI 318579001
NIWCI 318394445
NI316001017 Frigidaire Screw
NI5303289910 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316205500 Frigidaire Oven Nut
1139017306 Frigidaire Oven Panel
1A139004600 Frigidaire Oven Panel
2139028107 Frigidaire Shield
3WCI 318225230
3AWCI 318225231
4WCI 318073908
6WCI 139011800
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11807545502 Frigidaire Oven Seal
12316445501 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
24139074902 Frigidaire Vent Trim Frame
25139075001 Frigidaire Oven Cover
29316517600 Frigidaire Oven Spacer
37SENSOR
57316283600 Frigidaire Oven Cover
58A139001700 Frigidaire Insulation
58CWCI 139020201
58BWCI 139020302
59139027600 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521498 Frigidaire Element
67139027501 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139014001 Frigidaire Oven Shield
80139021101 Frigidaire Bracket Assembly
81318054701 Frigidaire Plate
82WCI 139008200
86318561100 Frigidaire Receptacle
87139020100 Frigidaire Oven Bracket
885304506964 Frigidaire Oven Cover
895304528836 Frigidaire Motor
90WCI 318296924
90AWCI 318296925
99WCI 139086700
100WCI 318330003
108318575612 Frigidaire Oven Cooling Fan Motor
119807144901 Frigidaire Thermostat
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
162WCI 318225820
219318005229 Frigidaire Oven Switch
