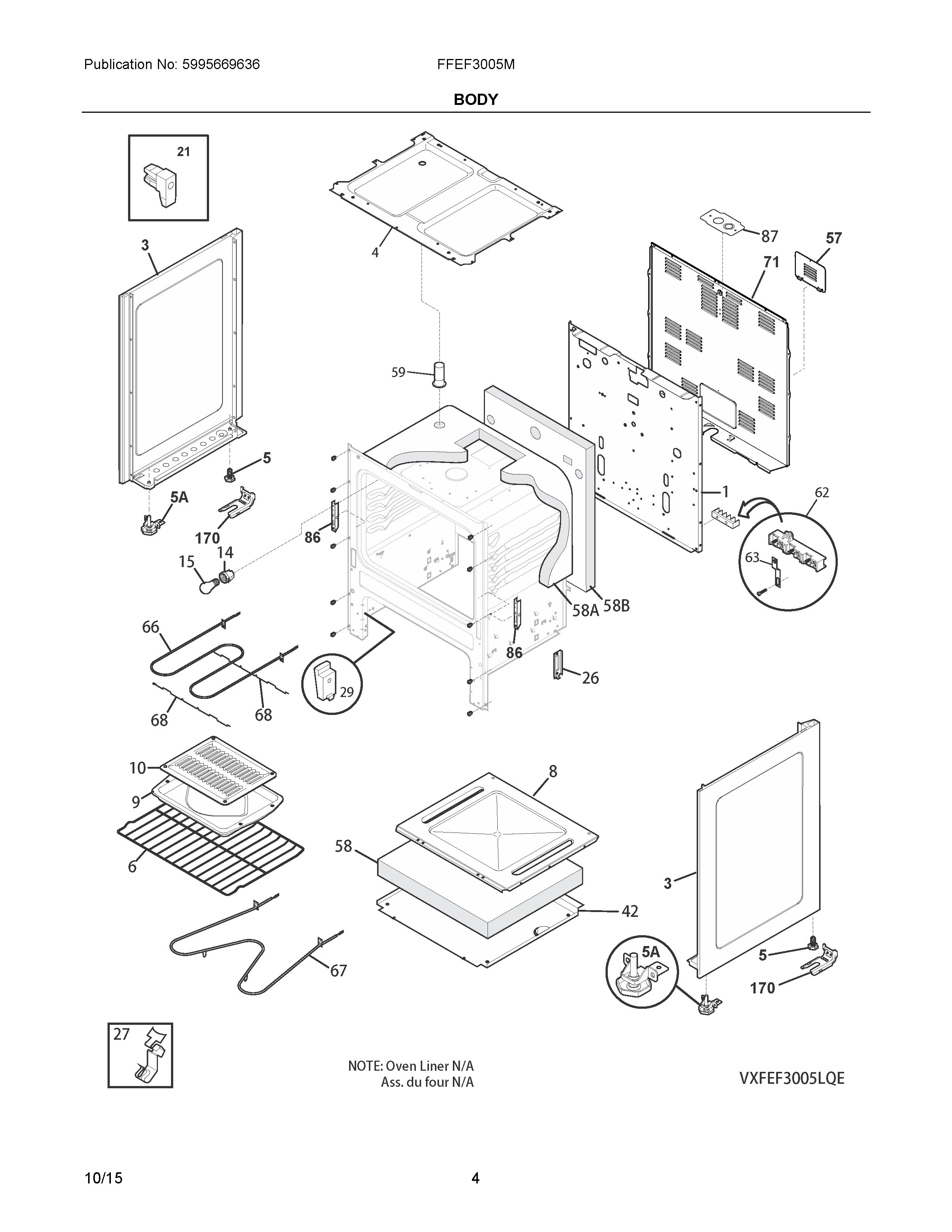

FFEF3005MQE 03 – BODY

FFEF3005MQE 03 – BODY

Written by

in

FFEF3005MQE 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NIWCI 316246400
NI316210800 Frigidaire Button Plug
NIASPACER, SHIELD, REAR WALL
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIWCI 316256200
NIWCI 316580005
NI316418901 Frigidaire Oven Screw
NIB316116000 Frigidaire Screw
NIA316418900 Frigidaire Oven Screw
NI5303271648 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NIA316205500 Frigidaire Oven Nut
1BACK, MAIN
3WCI 316400120
3AWCI 316400121
45304522901 Frigidaire M Burner Box
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316067902 Frigidaire Oven Rack
8WCI 316495903
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21316408000 Frigidaire Oven Clip Assembly
26316206300 Frigidaire Oven Support
275303284616 Frigidaire Range Bulb Clip Thermostat
29807047102 Frigidaire Oven Front Drawer Glide
42SHIELD, WOOL, LOWER
57316283600 Frigidaire Oven Cover
58B316054202 Frigidaire Insulation
58A316047707 Frigidaire Insulation
58316403803 Frigidaire Insulation
59316073605 Frigidaire Oven Tube
625303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
66316203200 Frigidaire Oven Broil Element 2400W
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71316283204 Frigidaire Oven Shield
86316441300 Frigidaire Receptacle
87316081200 Frigidaire Oven Bracket
