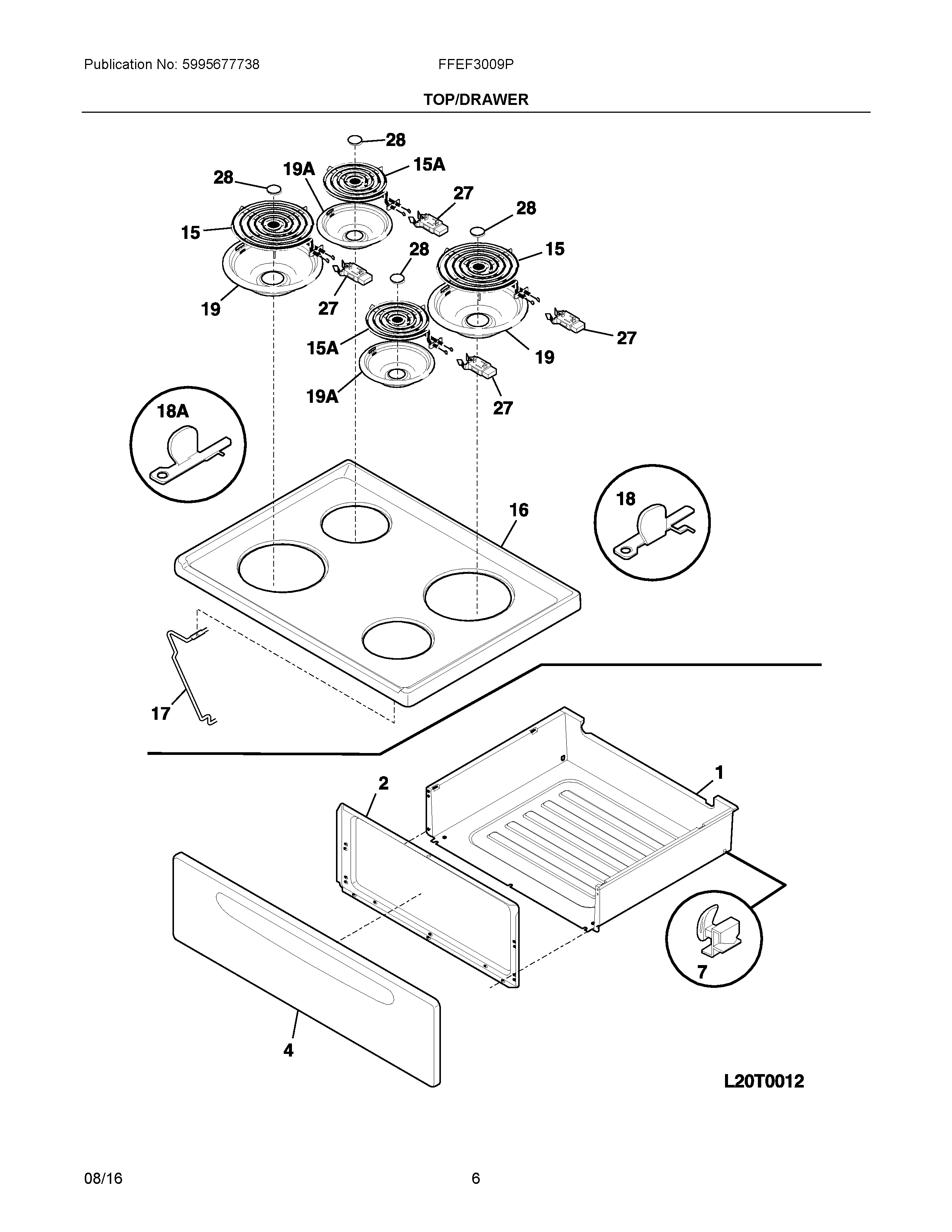

FFEF3009PBC 04 – TOP/DRAWER

Products

Position	Product
NI	5304516153 Frigidaire Wiring Harness
NI	316021105 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	316403520 Frigidaire Oven Panel
7	316407402 Frigidaire Range Drawer Glide
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15A	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	WCI 316245404
17	WCI 316066900
18A	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
19A	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
