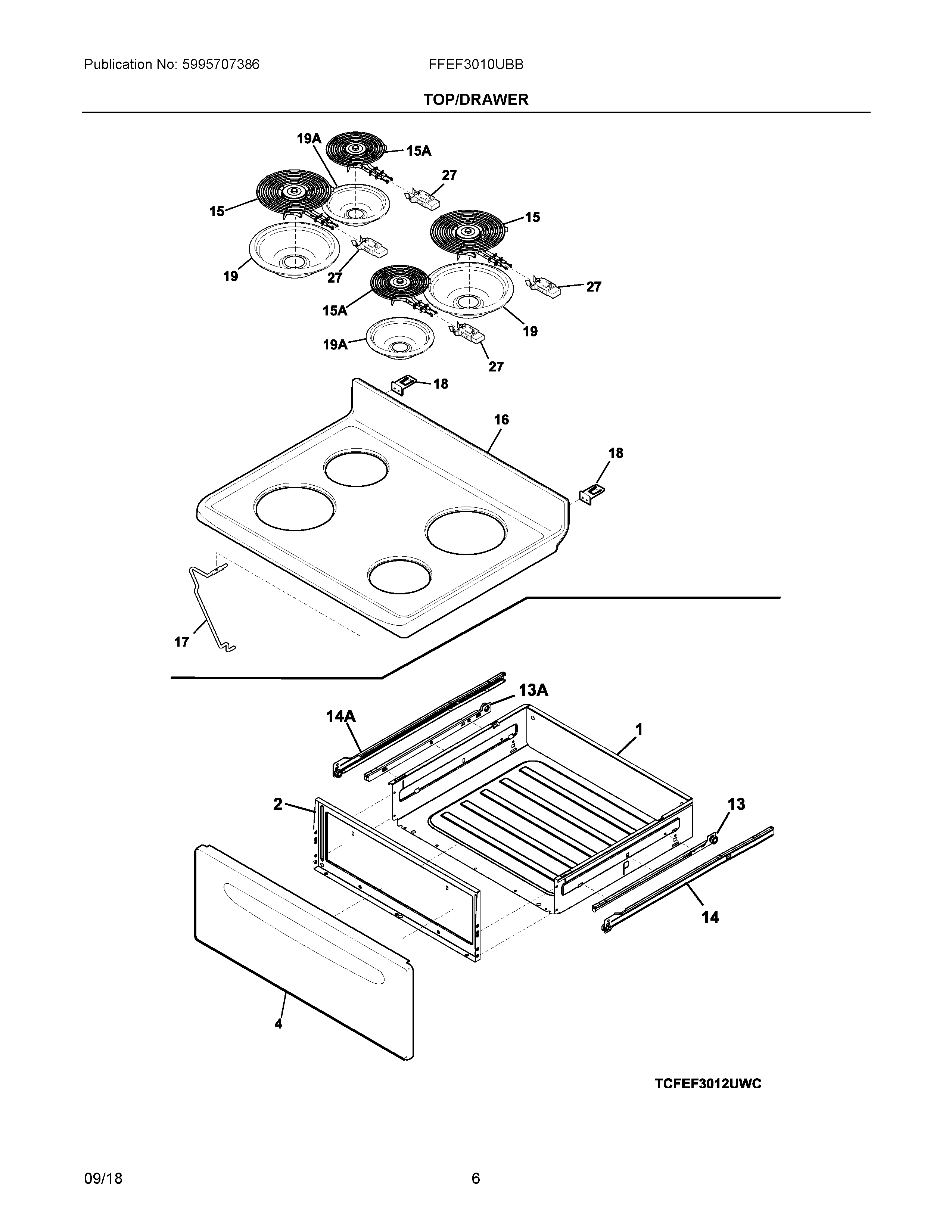

FFEF3010UBB 04 – TOP/DRAWER

Products

Position	Product
NI	316418900 Frigidaire Oven Screw
NI	316418901 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	5308014215 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NI	5303285179 Frigidaire Oven Door Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	316403520 Frigidaire Oven Panel
11	5304517906 Frigidaire Oven Bracket
13	5304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
13A	5304517903 Frigidaire Oven Glide Drawer
14A	5304517902 Frigidaire Oven Glide Drawer
14	5304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15	5304516159 Frigidaire Oven Range Limiter Element 8"
15A	5304516160 Frigidaire Oven 6" Burner Safety Element/Coil
16	WCI 316245404
17	WCI 316066900
18A	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
19A	A316222201 Frigidaire Oven Drip Bowl Assembly
19	A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
27	5304516153 Frigidaire Wiring Harness
69	5303288565 Frigidaire Screw
