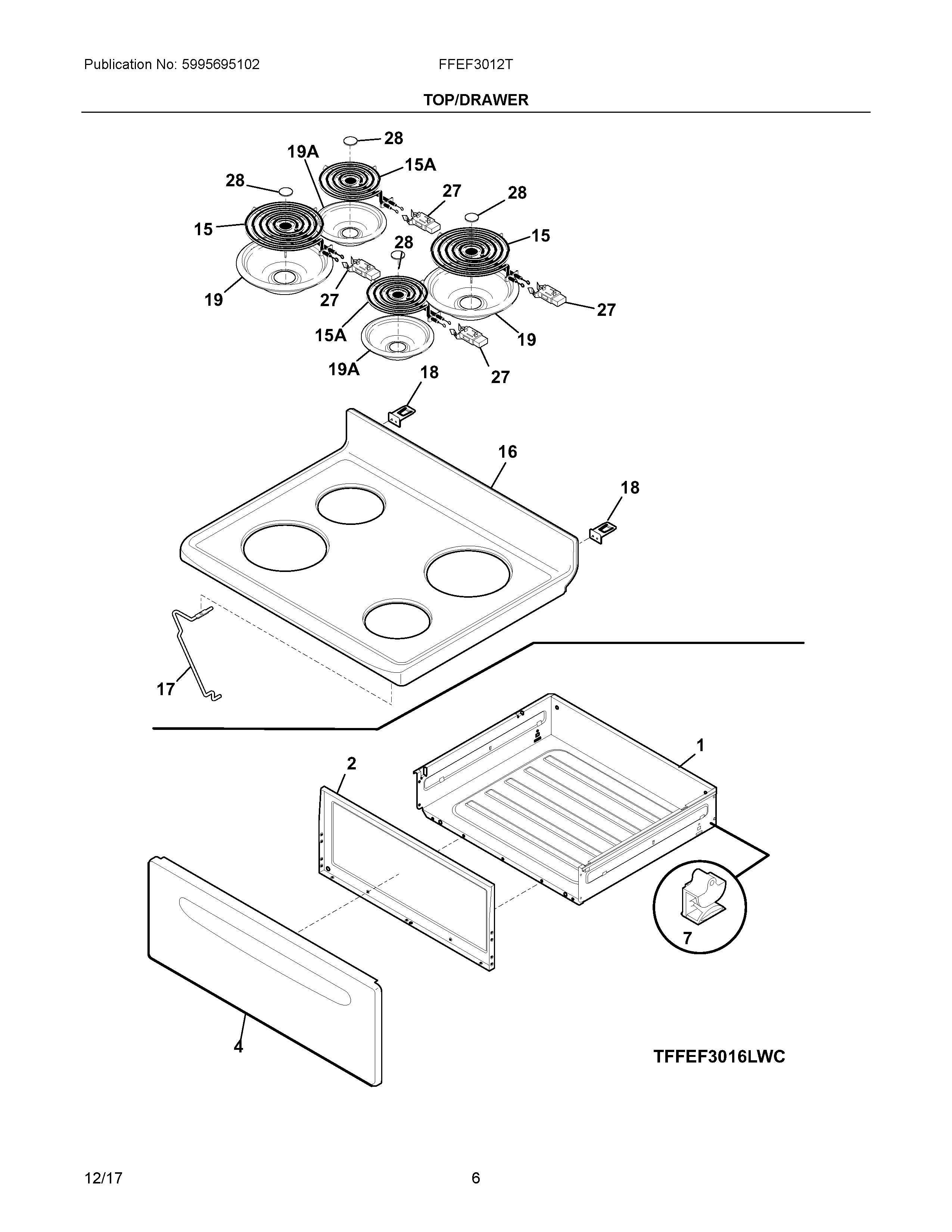

FFEF3012TBB 04 – TOP/DRAWER

Products

Position	Product
NI	HARNESS, WIRING, SURFACE UNITS
NI	316418901 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	5308014215 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NI	5303285179 Frigidaire Oven Door Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304511288 Frigidaire Oven Liner
4	316231328 Frigidaire Oven Panel
7	316407402 Frigidaire Range Drawer Glide
15A	318372210 Frigidaire Oven Range 6" 1250W Surface Element
15	316442300 Frigidaire Oven 2100W Coil Element 8
16	MAIN TOP, BLACK
17	316057601 Frigidaire Oven Rod
18	316580800 Frigidaire Hinge Bracket
19A	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	5303017715 Frigidaire Medallion
