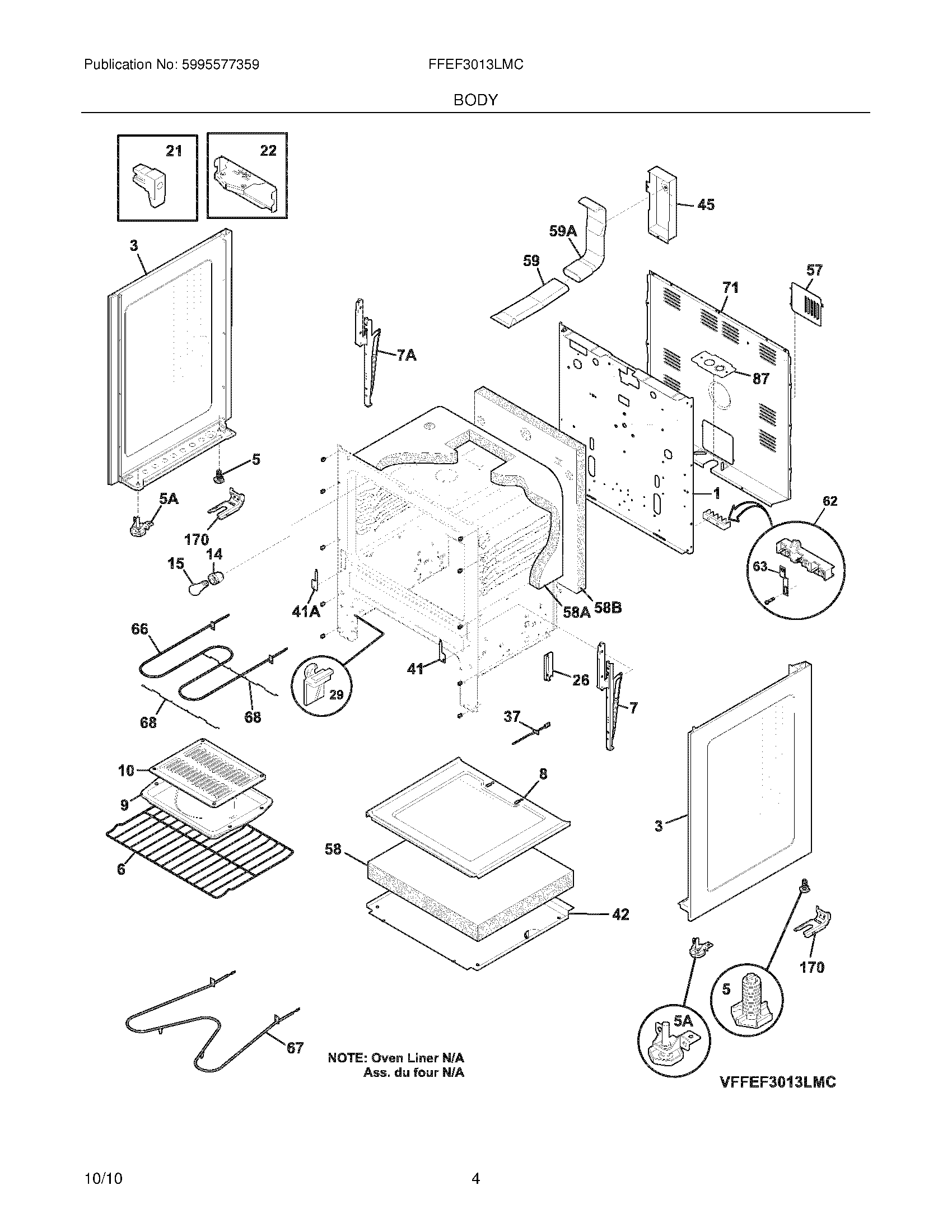

FFEF3013LMC 05 – BODY

FFEF3013LMC 05 – BODY

Written by

in

FFEF3013LMC 05 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316210800 Frigidaire Button Plug
NISPACER, SHIELD, REAR WALL
NI316205500 Frigidaire Oven Nut
NI316001017 Frigidaire Screw
NIWCI 316580001
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316418901 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
NIWCI 316444100
NI316021105 Frigidaire Oven Screw
1WCI 316201300
3316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316067902 Frigidaire Oven Rack
7A316566205 Frigidaire Oven Hinge
7316566204 Frigidaire Oven Hinge
8PANEL, SUMP, OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
26316206300 Frigidaire Oven Support
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
37316233903 Frigidaire Range Oven Temperature Sensor
41AWCI 316233500
41WCI 316233400
42SHIELD, WOOL, LOWER
45316234100 Frigidaire Oven Shield
57316457801 Frigidaire Oven Cover
58316403803 Frigidaire Insulation
58A316047707 Frigidaire Insulation
58B316054202 Frigidaire Insulation
59316208201 Frigidaire Oven Tube
59A316208304 Frigidaire Oven Tube
625303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
66316203200 Frigidaire Oven Broil Element 2400W
67316225001 Frigidaire Stove Range Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316422304
87316081200 Frigidaire Oven Bracket
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316116000 Frigidaire Screw
