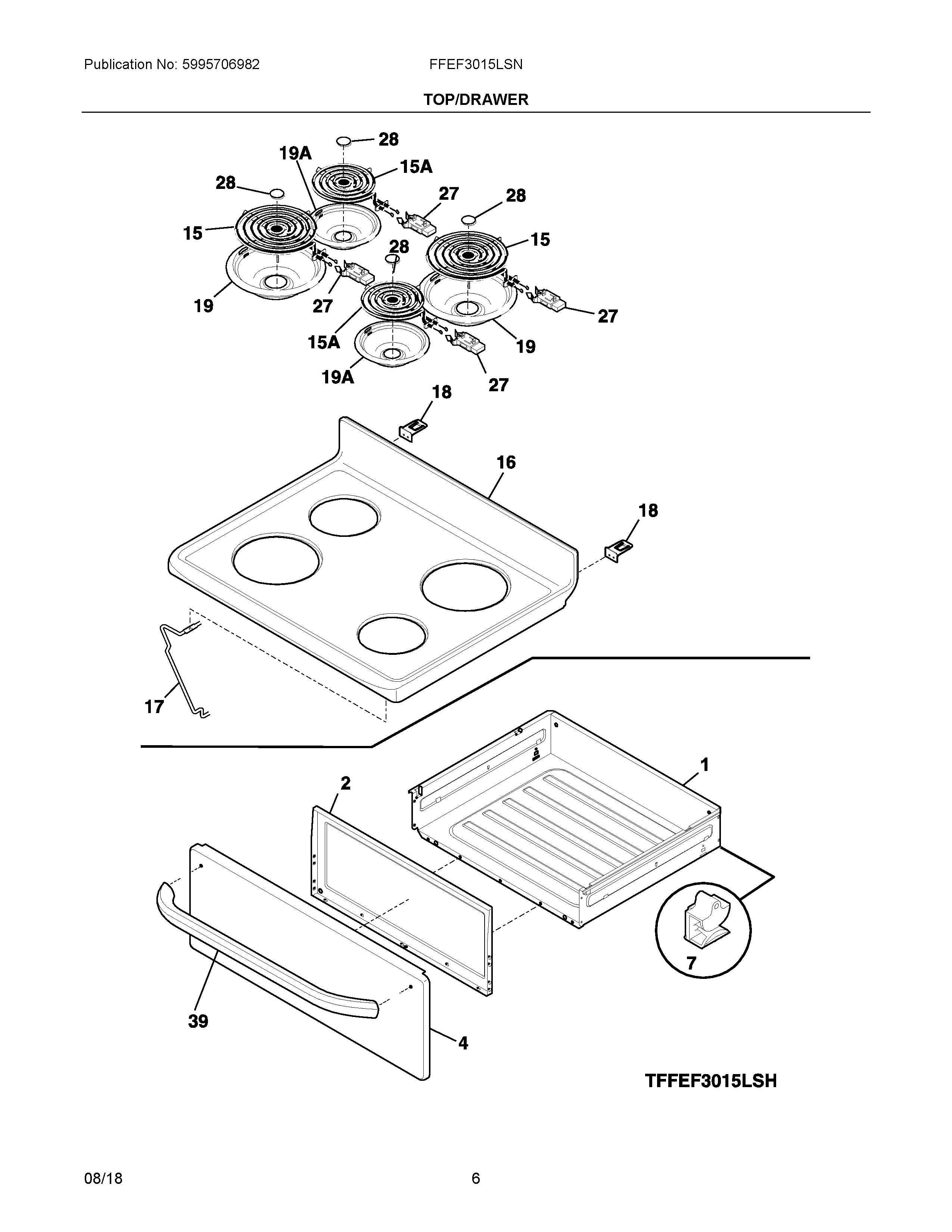

FFEF3015LSN 04 – TOP/DRAWER

Products

Position	Product
NI	HARNESS, WIRING, SURFACE UNITS
NIA	WCI 316437500
NI	Clip,wiring harness ,green ,main top
NI	5308014215 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	WCI 5304511920
7	316407402 Frigidaire Range Drawer Glide
15	316442300 Frigidaire Oven 2100W Coil Element 8
15A	318372210 Frigidaire Oven Range 6" 1250W Surface Element
16	316202387 Frigidaire Oven Maintop
17	316057601 Frigidaire Oven Rod
18	316580800 Frigidaire Hinge Bracket
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19A	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	5303017715 Frigidaire Medallion
39	WCI 316545300
