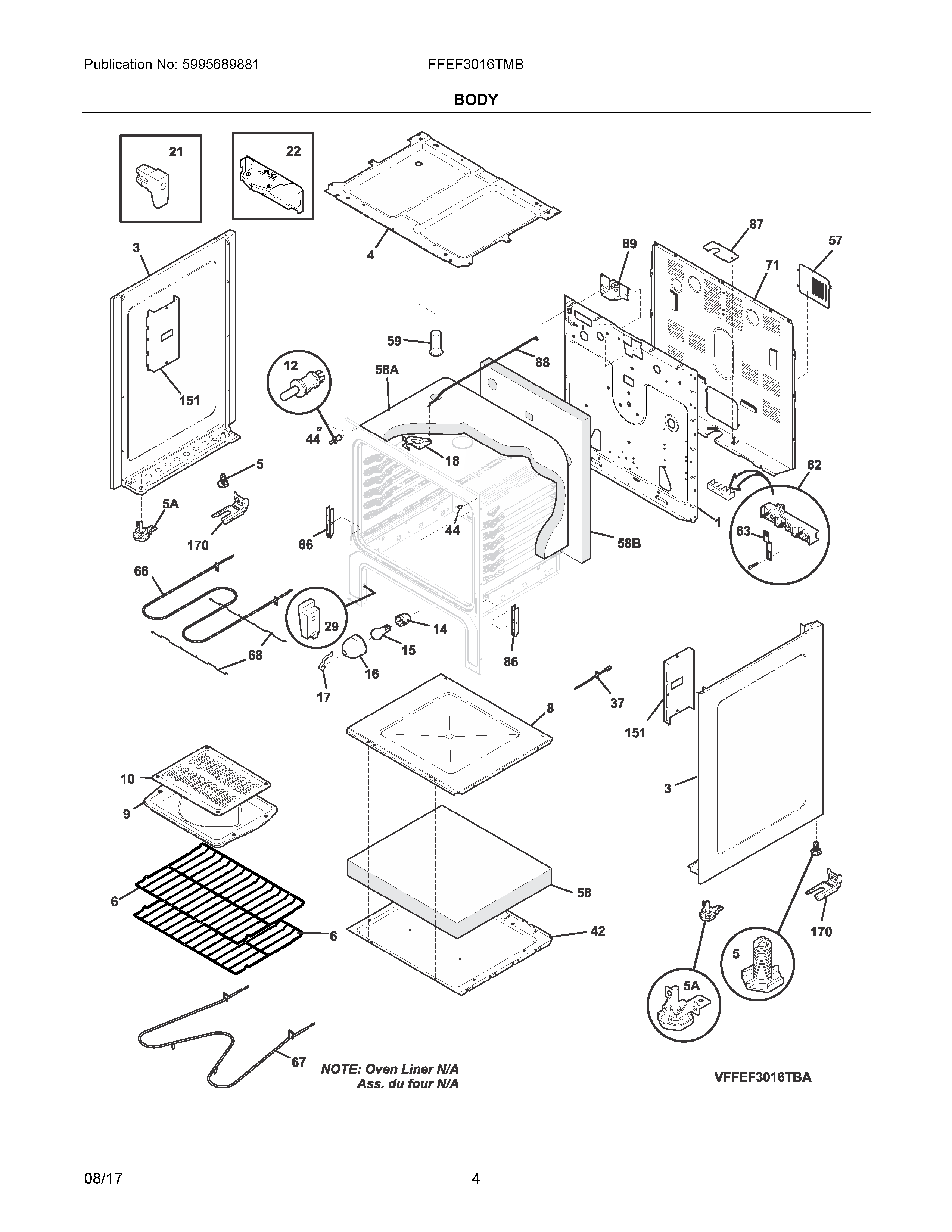

FFEF3016TMB 03 – BODY

Products

Position	Product
NI	316089501 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	5308014215 Frigidaire Oven Screw
NIA	316205500 Frigidaire Oven Nut
NIB	316116000 Frigidaire Screw
NI	316418901 Frigidaire Oven Screw
NIA	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NI	316001017 Frigidaire Screw
NI	5304516158 Frigidaire Oven Harness
NI	316279600 Frigidaire Screw
NIA	316418900 Frigidaire Oven Screw
NI	316282700 Frigidaire Oven Screw
NI	5303289910 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NI	316506000 Frigidaire Oven Bracket
NI	5303285179 Frigidaire Oven Door Screw
NIB	316542203 Frigidaire Insulator
NI	316260800 Frigidaire Screw-SHOULDER
1	316401806 Frigidaire Panel
3A	316400145 Frigidaire Panel Assembly
3	316400144 Frigidaire Panel
4	5304522901 Frigidaire M Burner Box
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6	316496201 Frigidaire Oven Rack
8	316400601 Frigidaire Oven Range Bottom Panel
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	316445501 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
22	316286300 Frigidaire Bodyside Bracket
29	807047102 Frigidaire Oven Front Drawer Glide
37	316490000 Frigidaire Oven Range Temperature Sensor
42	316400701 Frigidaire Oven Shield
44	316517600 Frigidaire Oven Spacer
57	316283600 Frigidaire Oven Cover
58	316403803 Frigidaire Insulation
58A	316406602 Frigidaire Insulation
58B	316406500 Frigidaire Insulation
59	316073606 Frigidaire Oven Tube
62	5303935271 Frigidaire Oven Terminal Block
63	5304536404 Frigidaire Strap
66	316203200 Frigidaire Oven Broil Element 2400W
67	316075103 Frigidaire Oven Bake Element
68	316404002 Frigidaire Support Assembly
71	316283204 Frigidaire Oven Shield
86	316441300 Frigidaire Receptacle
87	316081200 Frigidaire Oven Bracket
88	316203500 Frigidaire Oven Rod
89	MOTOR
151	316404601 Frigidaire Oven Shield
