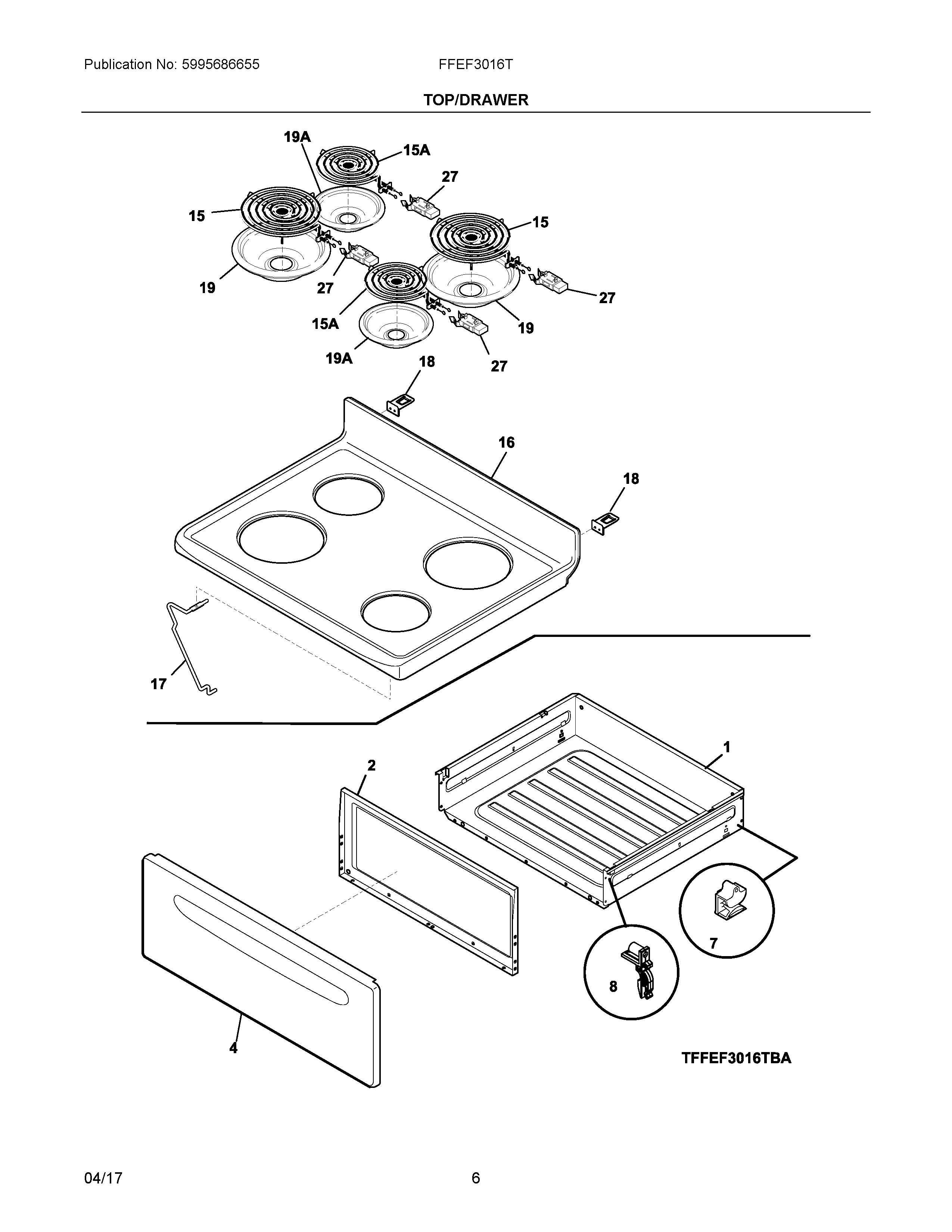

FFEF3016TWA 04 – TOP/DRAWER

Products

Position	Product
NI	5308014215 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	5303285179 Frigidaire Oven Door Screw
NI	316021105 Frigidaire Oven Screw
NI	Clip,wiring harness ,green ,main top
NI	316089500 Frigidaire Oven Screw
NI	316580400 Frigidaire Oven Harness
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304511973 Frigidaire Oven Panel
7	316407402 Frigidaire Range Drawer Glide
8	5304490938 Frigidaire Glide Assembly
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15A	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	5304531767 Frigidaire Maintop
17	316057601 Frigidaire Oven Rod
18	316580800 Frigidaire Hinge Bracket
19A	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
27	5303935058 Frigidaire Oven Burner Receptacle Kit
