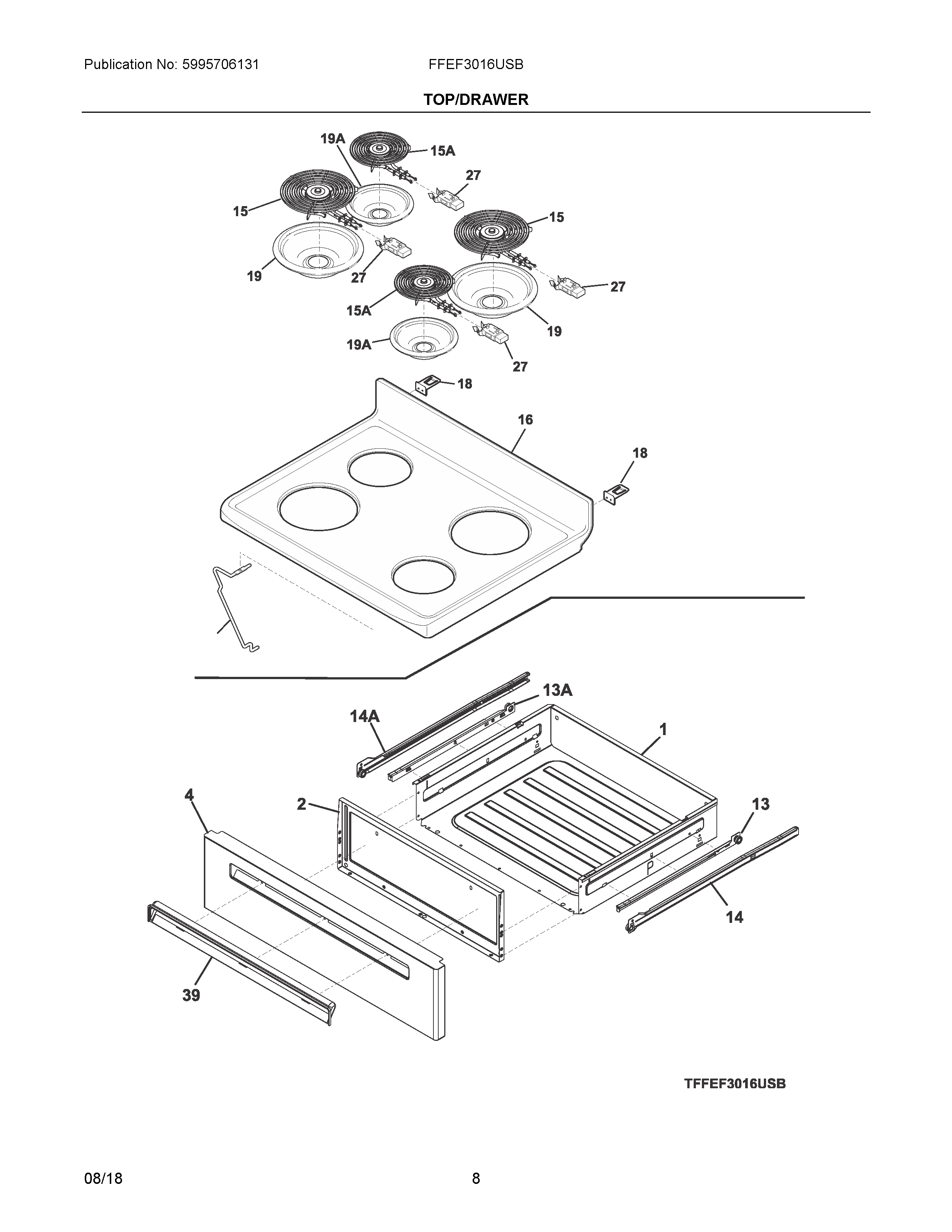

FFEF3016USB 04 – TOP/DRAWER

FFEF3016USB 04 – TOP/DRAWER

Written by

in

FFEF3016USB 04 – TOP/DRAWER

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316021132 Frigidaire Screw
NI316418900 Frigidaire Oven Screw
NIClip,wiring harness ,green ,main top
NI5308014215 Frigidaire Oven Screw
NI316418901 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316260800 Frigidaire Screw-SHOULDER
NI316021105 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304510525 Frigidaire Oven Panel
115304517906 Frigidaire Oven Bracket
13A5304517903 Frigidaire Oven Glide Drawer
135304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
14A5304517902 Frigidaire Oven Glide Drawer
15A5304516160 Frigidaire Oven 6" Burner Safety Element/Coil
155304516159 Frigidaire Oven Range Limiter Element 8"
16MAIN TOP, BLACK
17316057601 Frigidaire Oven Rod
18316580800 Frigidaire Hinge Bracket
19AA316222201 Frigidaire Oven Drip Bowl Assembly
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
275304516152 Frigidaire Oven Wiring Harness
695303288565 Frigidaire Screw
