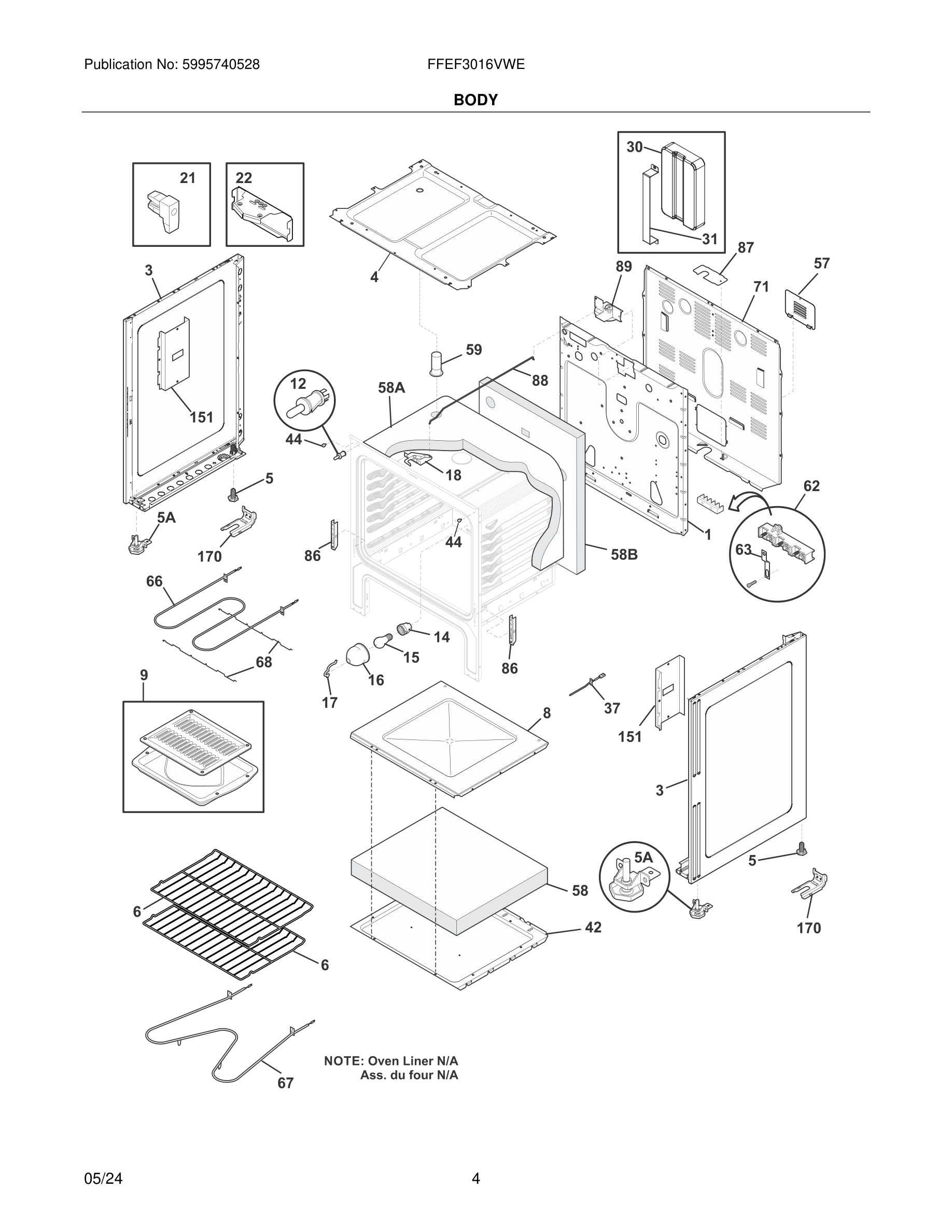

FFEF3016VWE 05 – BODY

FFEF3016VWE 05 – BODY

Written by

in

FFEF3016VWE 05 – BODY

Products

PositionProduct
*5303285179 Frigidaire Oven Door Screw
*316021132 Frigidaire Screw
*#5304516158 Frigidaire Oven Harness
*316279600 Frigidaire Screw
*316089500 Frigidaire Oven Screw
*316021109 Frigidaire Oven Screw
*316282700 Frigidaire Oven Screw
*5303289910 Frigidaire Oven Screw
*316021105 Frigidaire Oven Screw
*5303271648 Frigidaire Oven Screw
*316506000 Frigidaire Oven Bracket
*316260800 Frigidaire Screw-SHOULDER
1316401806 Frigidaire Panel
3316400143 Frigidaire Panel
3316400142 Frigidaire Panel
45304522901 Frigidaire M Burner Box
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316496201 Frigidaire Oven Rack
8316400601 Frigidaire Oven Range Bottom Panel
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18#316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
30COUNTERWEIGHT, CONCRETE BLOCK
315304527899 Frigidaire Bracket
37#316490000 Frigidaire Oven Range Temperature Sensor
42316400701 Frigidaire Oven Shield
44316517600 Frigidaire Oven Spacer
57316283600 Frigidaire Oven Cover
58A316406602 Frigidaire Insulation
58B316406500 Frigidaire Insulation
58316403803 Frigidaire Insulation
59316073606 Frigidaire Oven Tube
62*316205500 Frigidaire Oven Nut
62*316542203 Frigidaire Insulator
62#5303935271 Frigidaire Oven Terminal Block
62*316001017 Frigidaire Screw
63316278800 Frigidaire Oven Plate
66#316203200 Frigidaire Oven Broil Element 2400W
67#316075103 Frigidaire Oven Bake Element
68316404002 Frigidaire Support Assembly
71316283204 Frigidaire Oven Shield
86316441300 Frigidaire Receptacle
86*316418900 Frigidaire Oven Screw
87316081200 Frigidaire Oven Bracket
88316203500 Frigidaire Oven Rod
89#MOTOR
151316404601 Frigidaire Oven Shield
170*316116000 Frigidaire Screw
170*316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
