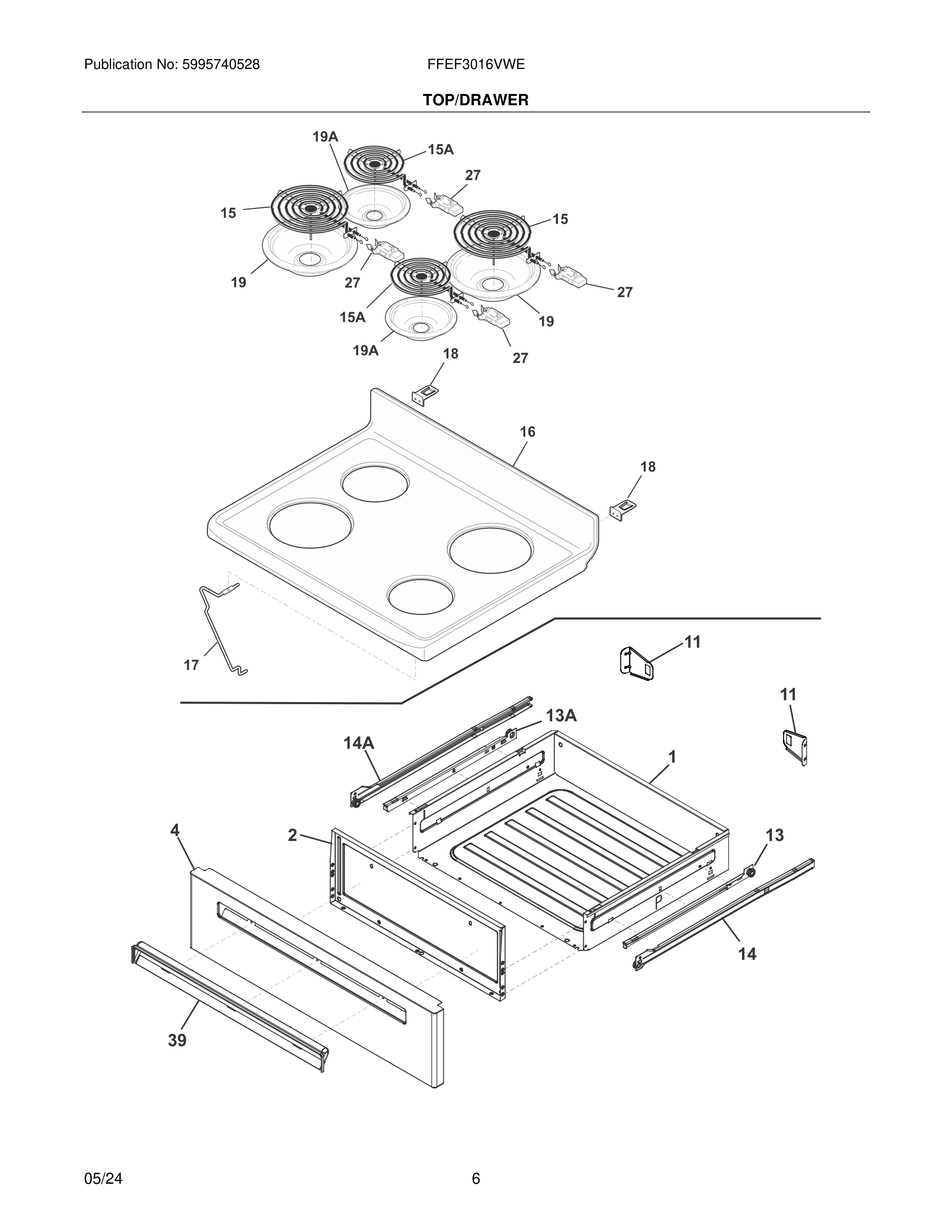

FFEF3016VWE 07 – TOP/DRAWER

FFEF3016VWE 07 – TOP/DRAWER

Written by

in

FFEF3016VWE 07 – TOP/DRAWER

Products

PositionProduct
*5303285179 Frigidaire Oven Door Screw
*316001017 Frigidaire Screw
*5308014215 Frigidaire Oven Screw
*316089500 Frigidaire Oven Screw
*316021105 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304511973 Frigidaire Oven Panel
115304517906 Frigidaire Oven Bracket
13A5304517903 Frigidaire Oven Glide Drawer
135304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
14A5304517902 Frigidaire Oven Glide Drawer
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15#5304516159 Frigidaire Oven Range Limiter Element 8"
15A#5304516160 Frigidaire Oven 6" Burner Safety Element/Coil
165304531767 Frigidaire Maintop
17316057601 Frigidaire Oven Rod
18316580800 Frigidaire Hinge Bracket
19AA316222201 Frigidaire Oven Drip Bowl Assembly
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
27#5304516152 Frigidaire Oven Wiring Harness
